Cadillac DeVille (1995) – fuse box diagram
Year of production: 1995
Engine compartment fuse block
The maxi fuse and relays are located next to the engine compartment fuse block.

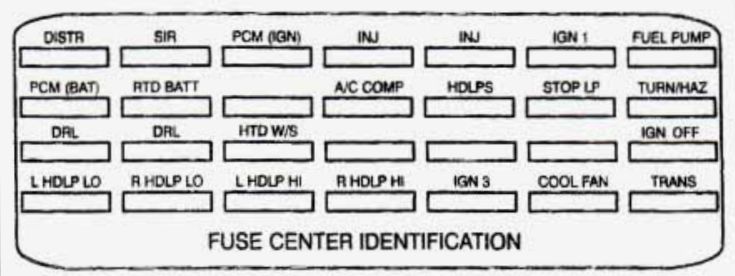

Cadillac DeVille – fuse box diagram – engine compartment
| Fuse name | Usage |
| DISTR | IGNITION CONTROL MODULE |
| SIR | SENSERING DIAGNOSTIC MODULE |
| PCM (IGN) | POWERTRAIN CONTROL MODULE (PCM), PASS-Key-II DECODER MODULE |
| INJ | 1,4,6, AND 7 FUEL INJECTORS |
| INJ | 2,3,5, AND 8 FUEL INJECTORS |
| IGN 1 | A/C REFRIGERANT PRESSURE SWITCH, TRANSAXLE RANGE SWITCH, STOP/BTSI/CRUISE BRAKE SWITCH, INSTRUMENT PANEL CLUSTER, KEYLESS ENTRY MODULE, DIAGNOSTIC/ENERGY RESERVE MODULE (DERM), CORNERING LIGHTS, TURN/HAZARD SWITCH ASSY, CHIME MODULE, HEADLIGHT SWITCH, TWILIGHT SENTINEUDRL MODULE |
| FUEL PUMP | FUEL PUMP, OIL PRESSURE SWITCH, POWERTRAIN CONTROL MODULE (PCM) |
| PCM (BAT) | P6WERTRAIN CONTROL MODULE (PCM) |
| RTD (BAT) | ROAD SENSING SUSPENSION (RSS) MODULE |
| A/C COMP | A/C COMPRESSOR CLUTCH |
| HDLPS | HEADLIGHT DIMMER SWITCH, HEADLIGHT RELAY “D” (ENGINE COMP MICRO RELAY CENTER), DRL HEADLIGHT RELAY “E (WITH DAYTIME RUNNING LIGHTS), POWERS C13 |
| STOP LP | STOP/BTSI/CRUISE SWITCH, STOPLIGHT SWITCH CAPACITOR; ANTI -SLIP REGULATION (ASR) 5 TRACTION CONTROL |
| TURN/HAZ | HAZARD FLSHER, TURN FLASHER RELAY, TURN FLASHER MODULE |
| DRL | DAYTIME RUNNING LIGHTS (CANADA) |
| DRL | LEFT AND RIGHT LO BEAM HEADLAMP (CANADA) |
| HTD W/S | HEATED WINDSHIELD CONTROL MODULE |
| IGN OFF | INSTRUMENT PANEL CLUSTER |
| L HDLP LO | LEFT LO BEAM HEADLAMP |
| R HDLP LO | RIGHT LO BEAM HEADLAMP |
| L HDLP HI | LEFT HI BEAM HEADLAMP |
| R HDLP HI | RIGHT HI BEAM HEADLAMP |
| IGN 3 | REAR DEFOGGER RELAY, ELECTRONIC LEVEL CONTROL (ELC), HEATED WINDSHIELD, HEATER AND A/C PROGRAMMER, CRUISE CONTROL |
| COOLING FAN | EXTENDED TRAVEL BRAKE SWITCH, POWERTRAIN CONTROL MODULE (PCM), COOLING FANRELAYS 1,2, AND 3, FRONT AND REAR HEATED OXYGEN SENSOR |
| TRANS/ECS | POWER STEERING PRESSURE SWITCH, EXHAUST GAS RECIRCULATION (EGR) VALVE, TRANSAXLE SHIFT SOLENOIDS A & B, EVAPORATIVE EMISSION CONTROL SOLENOID, POWERTRAIN CONTROL MODULE (PCM), TORQUE CONVERTER CLUTCH SOLENOID, TCC BRAKE SWITCH |

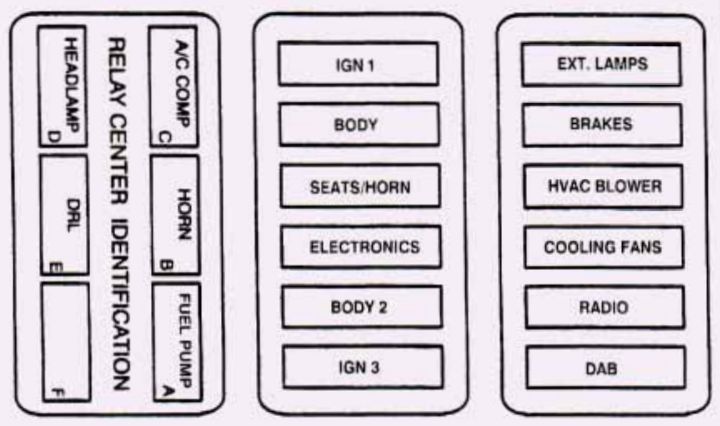

Maxi fuse block
LH MAXI FUSE BLOCK
| Fuse/circuit breaker (CB) | Usage |
| IGN 1 (Fuse) | RETAINED ACCESSORY POWER (RADIO/WIPERS), STARTER, TRUNK COMF FUSES B11 AND 813 |
| BODY 1 (Fuse) | ENGINE COMF B11, ROAD SENSING SUSPENSION, FOG LIGHTS, TRUNK COMF FUSE C1, C3, C5, C7, C9, AND C11, TRUNK COMIP FUSE C13 (EXPORT), REAR FOG LIGHT (EXPORT) |
| SEATS/HORN (CB) | LEFT AND RIGHT LUMBAR RELAYS, POWER DOOR LOCKS, KEYLESS ENTRY MODULE, HORNS, FUEL DOOR RELEASE SWITCH, TRUNK RELEASE SWITCH |
| ELECTRONICS (Fuse) | POWERTRAIN CONTROL MODULE (PCM), ELECTRONIC CLIMATE CONTROL, RAPALLUMINATED ENTRY MODULE, INSTRUMENT PANEL CLUSTER, PASS-Key-II DECODER MODULE, THEFT DETERRENT |
| BODY 2 (Fuse) | LEFT AND RIGHT HEATED SEATS, ELECTRONIC LEVEL CONTROL (ELC), TRUNK LID PULL DOWN, POWER ANTENNA, REAR DEFOGGER, LEFT AND RIGHT MIRROR DEFOGGERS |
| IGN 3 (Fuse) | RETAINED ACCESSORY POWER, (SUNROOF/POWER WINDOWS), ENGINE COMF! FUSES D1, D3, D5, TRUNK COMI? FUSES A1 , A3, A5, A7, A9 |
RH MAXI FUSE BLOCK
| FUSE/CIRCUIT BREAKER (CB) | USAGE |
| DAB (CB) | RETAINED ACCESSORY POWER (RAP) (SUNROOF/POWER WINDOWS) |
| RADIO (Fuse) | DELCO-BOSEB SPEAKERS, RADIO CONTROL HEAD, REMOTE RADIO RECEIVER |
| COOL (Fuse) | COOLING FANS |
| HVAC BLOWER (Fuse) | HVAC POWER MOTOR, A/C COMPRESSOR |
| BRAKES (Fuse) | BRAKE PRESSURE MODULATOR VALVE |
| EXT LAMPS (FUSE) | TURN FLASHER MODULE, HAZARD FLASHER, STOP/BTSI/CRUISE BRAKE SWITCH, PARKING LIGHTS, DAY TIME RUNNING LIGHTS (CANADA), ENGINE COME FUSES 61, B3 AND B5, TRUNK COMF! FUSES Dl 1, Dl3 |
| IGN 3 (Fuse) | RETAINDE ACCESSORY POWER (ASTROROOF/POWER WINDOWS); ENGINE COMP. FUSE D1, D3 AND D5; TRUNK COMP; FUSES A1, A3, A5, A7 AND A9 |

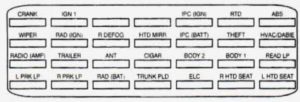

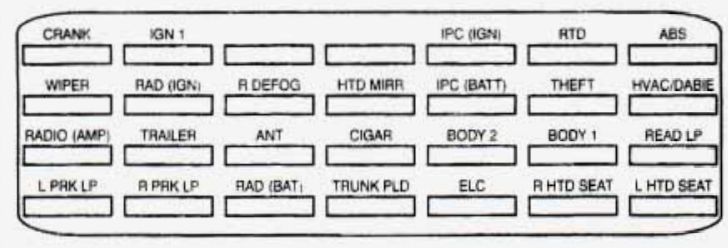

Trunk Compartment Fuse Block
| Fuse name | Usage |
| CRANK | RAP/ILLUMINATED ENTRY MODULE, DlAGNOSTIC/ENERGY RESERVE MODULE (DERM), TRANSAXLE RANGE SWITCH (NSSS) |
| IGN 1 | TRUN/FUEL DOOR RELEASE INHIBIT RELAY “E”, FUEL LEVER SENSOR, ELECTROCHROMIC MIRROR, RAP/ILLUMINATED ENTRY MODULE, THEFT DETERRENT MODULE, KEYLESS ENTRY MODULE, TURN FLASHER RELAY “F TRUNK COMP MICRO RELAY CENTER |
| IPC (IGN) | INSTRUMENT PANEL CLUSTER |
| RTD SUSP | SPEED SENSITIVE SUSPENSION |
| ABS | ELECTRONIC BRAKE AND TRACTION CONTROL MODULE (EBTCM) |
| WIPER | WIPER/WASHER SWITCH |
| RAD (IGN) | REMOTE RADIO RECEIVER |
| R DEFOG | REAR DEFOGGER |
| HTD MlRR | LEFT AND RIGHT OUTSIDE MIRROR DEFOGGERS |
| IPC (BATT) | INSTRUMENT PANEL CLUSTER |
| THEFT | PASS-Key-II DECODER MODULE, THEFT DETERRENT RELAY “D” (TRUNK COMP RELAY CENTER), THEFT DETERRENT MODULE |
| HVAC/DABIE | HEATER AND A/C PROGRAMMER, RAP/ILLUMINATED ENTRY MODULE |
| RADIO | ACTIVE AUDIO AMPLIFIER |
| TRAILER | NOT EQUIPPED |
| ANT | ANTENNA MOTOR |
| CIGAR | LEFT AND RIGHT CIGARETTE LIGHTERS, FRONT CIGARETTE LIGHTER, CHIME MODULE |
| BODY 2 | POWER MIRROR SWITCH, RAP RELAY, LOCK-OUT INHIBIT RELAY “A” (TRUNK COMP 1 MICRO RELAY CENTER), COURTESY LIGHTS RELAY “C” (TRUNK COME 2 MICRO RELAY CENTER), RAP RELAY “E (TRUNK COMP. 2 MICRO RELAY CENTER), KEYLESS ENTRY MODULE, TRUNK LAMP |
| BODY 1 | FRONT DOOR LOCK SWITCHES, FRONT DOOR COURTESY LAMP, GLOVE BOX LAMP, HEADLIGHT SWITCH |
| READ LP | LEFT AND RIGHT FRONT HEADER LAMP, GARAGE DOOR OPENER, LEFT AND RIGHT REAR HEADER LAMPS |
| L PRK LP | LEFT REAR TAIL/STOP/TURN LAMPS, LEFT FRONT PARK/TURN LAMPS, FRONT AND REAR LEFT SIDE MARKER LAMPS, RIGHT REAR MARKER LAMP, HEADLIGHT SWITCH, INSTRUMENT PANEL CLUSTER |
| R PRK LP | RADIO CONTROL HEAD, RIGHT TAIUSTOP TURN LAMPS, RIGHT FRONT AND REAR SIDE MARKER LAMPS, RIGHT FRONT PARK AND TURN LAMPS, ENGINE COME LAMP, LICENSE PLATE LAMPS |
| RAD (BAT) | RADIO |
| TRUNK PLD | TRUNK LID PULL DOWN MOTOR |
| ELC | ELECTRONIC LEVEL CONTROL (ELC) |
| R HTD SEAT | PASSENGERS HEATED SEAT |
| L HTD SEAT | DRIVER’S HEATED SEAT |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
