Cadillac Eldorado (1992 – 1993) – fuse box diagram
Year of production: 1992, 1993

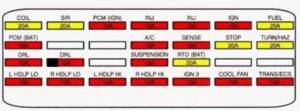

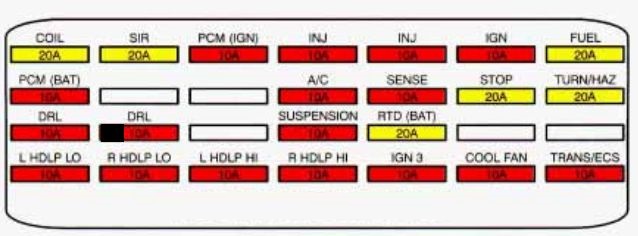

Engine compartment
Maxi Fuse/Relay Center
The maxi fuse and relays are located next to the engine compartment fuse block.
| Fuse name | Ampere rating [A] | Usage |
| COIL | 20 | 4.9L DISTRIBUTOR, 4.6L IGNITION CONTROL MODULE |
| SIR | 20 | DIAGNOSTIC ENERGY RESERVE MODULE (DERM) SIR (AIR BAG), ARMING SENSOR |
| PCM (IGN) | 10 | POWERTRAIN CONTROL MODULE (PCM), PASSKey DECODER MODULE |
| INJ | 10 | FUEL INJECTORS 1,4,6,7 |
| INJ | 10 | FUEL INJECTORS 2,3,5, |
| IGN | 10 | A/C COMPRESSOR, ELECTROCHROMIC MIRROR, INSTRUMENT PANEL CLUSTER, DIAGNOSTIC ENERGY RESERVE MODULE (DERM) SIR (AIR BAG), KEYLESS ENTRY MODULE, CORNERING LIGHTS, CHIME MODULE, TWILIGHT SENTINEL/DRL MODULE, BACKUP LIGHTS, BRAKE TRANSMISSION SHIFT INTERLOCK |
| FUEL | 20 | FUELPUMP, POWERTRAIN CONTROL MODULE |
| PCM (BAT) | 10 | POWERTRAIN CONTROL MODULE (PCM) |
| A/C | 10 | A/C COMPRESSOR |
| HTD W/S | 10 | HEATED WINDSHIELD |
| STOP LP | 20 | STOP LIGHTS |
| TURN/HAZ | 20 | HAZARD LIGHTS, TURN SIGNAL LIGHTS |
| DRL (CANADA) | 10 | DAYTIME RUNNING LIGHTS |
| DRL (CANADA) | 10 | DAYTIME RUNNING LIGHTS |
| SUSPENSION | 10 | ROAD SENSING SUSPENSION, SPEED SENSITIVE SUSPENSION (4.9L) |
| RTD (BAT) | 20 | ROAD SENSING SUSPENSION |
| L HDLP LO (EXPORT) | 10 | LEFT HEADLAMP LOW BEAM |
| R HDLP LO (EXPORT) | 10 | RT HEADLAMP LOW BEAM |
| L HDLP HI (EXPORT) | 10 | LEFT HEADLAMP HIGH BEAM |
| R HDLP HI (EXPORT) | RIGHT HEADLAMP HIGH BEAM | |
| IGN 3 | 10 | HEATED WINDSHIELD, HEATER AND A/C PROGRAMMER, ELECT. LEVEL CONTROL (ELC), DEFOGGER RELAY “D”, CRUISE CONTROL, POWERTRAIN CONTROL MODULE |
| COOLING FAN | 10 | COOLING FANS, POWERTRAIN CONTROL MODULE (4.6L), FRONT AND REAR HEATED OXYGEN SENSOR (4.6L) |
| TRANS/ECS | 10 | EXHAUST GAS RECIRCULATION (EGR), POWERTRAIN CONTROL MODULE (PCM), AUTOMATIC TRANSAXLE, EVAPORATIVE EMISSION CONTROL SOLENOID, OVERSPEED ALERT MODULE (EXPORT), POWER STEERING PRESSURE SWITCH |

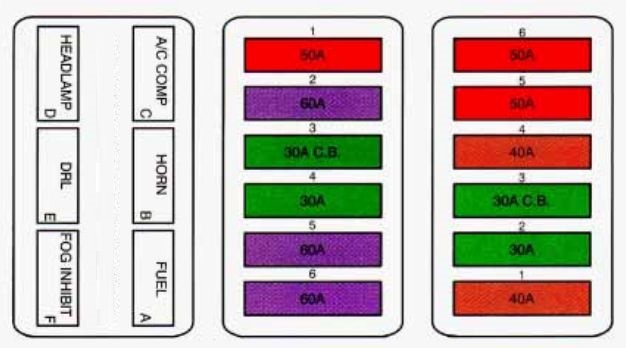

MAXI Fuse block
LH MAXI FUSE BLOCK
| Fuse number | Fuse name | Ampere rating [A] | Usage |
| 1 | 50 | RETAINED ACCESSORY POWER (RADIO/WIPERS), STARTER, TRUNK COMR FUSE A11, ENGINE COMP FUSES A1, A3, A5, A7, A9, A11, A13 | |
| 2 | U.S.A./CANADA Z49/SAUDI | 60 | TRUNK COMP FUSES C1, C3, C5, C7, C9, C11, ROAD SENSING SUSPENSION |
| EXPORT EXCEPT SAUD | 60 | ROAD SENSING SUSPENSION, REAR FOG LIGHT (EXPORT), TRUNK COMP FUSES C1, C3, C5, C7, C9, C11, C13 |
|
| 3 | CIRCUIT BREAKER | 30 | TRUNK RELEASE, LEFT AND RIGHT POWER SEAT, LEFT AND RIGHT LUMBAR CONTROL, KEYLESS ENTRY MODULE, POWER DOOR LOCKS, HORNS |
| 4 | 30 | POWERTRAIN CONTROL MODULE (PCM), ELECTRONIC CLIMATE CONTROL, RAP/ILLUMINATED ENTRY MODULE, INSTRUMENT PANEL CLUSTER, PASSKey DECODER MODULE, THEFT DETERRENT | |
| 5 | 60 | LEFT AND RIGHT HEATED SEATS, ELECTRONIC LEVEL CONTROL (ELC), TRUNK LID PULL DOWN, POWER ANTENNA, REAR DEFOGGER, LEFT AND RIGHT MIRROR DEFOGGERS | |
| 9 | 60 | RETAINED ACCESSORY POWER (SUNROOF/POWER WINDOWS), ENGINE COMP. FUSES C7, D1, D3, D5, TRUNK COMF! FUSES A1, A3, A5, A7 |
RH MAXI FUSE BLOCK
| Fuse numeber | Fuse name | Ampere rating [A] | Usage |
| 1 | FUSE | 40 | TURN/HAZ STOP LP, PARK LIGHTS |
| 2 | FUSE | 30 | DELCO-BOSEG SPEAKERS, RADIO CONTROL HEAD, REMOTE RADIO RECEIVER |
| 3 | CIRCUIT BREAKER | 30 | FLASH TO PASS FEATURE, DAYTIME RUNNING LIGHT (DRL), HEADLIGHTS |
| 4 | HAVAC BLOWER | 40 | HVAC POWER MODULE, A/C COMPRESSOR |
| 5 | ABS | 50 | ANTILOCK BRAKE PRESSURE VALVE |
| 6 | COOLING FANS | 50 | COOLING FANS |

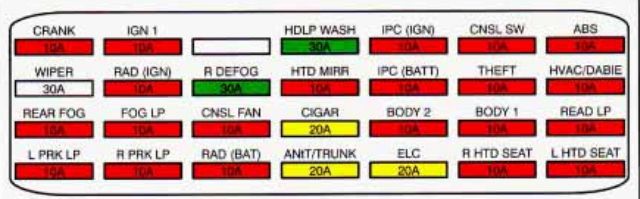

Rear Compartment Fuse Block
| Fuse name | Ampere rating [A] | Usage |
| CRANK | 10 | RAP/ILLUMINATED ENTRY MODULE, DIAGNOSTIC ENERGY RESERVE MODULE (DERM), STARTER |
| IGN 1 | 10 | CATALYTIC CONVERTER ALARM MODULE (EXPORT), FUEL LEVEL SENSOR, ELECTROCHROMIC MIRROR, THEFT DETERRENT MODULE, KEYLESS ENTRY MODULE, TURN SIGNAL LIGHTS, RAP/ILLUMINATED ENTRY MODULE |
| HDLP WASH (EXPORT) | 30 | HEADLIGHT WASHER MODULE |
| IPC (IGN) | 10 | INSTRUMENT PANEL CLUSTER |
| CNSL SW | 10 | REAR BLOWER MOTOR, CONSOLE SWITCH |
| ABS | 10 | ELECTRONIC BRAKE CONTROL MODULE (4.9L), ELECTRONIC BRAKE AND TRACTION CONTROL, MODULE (NORTHSTAR) |
| WIPER | 30 | WIPER/WASHER SWITCH |
| RAD (IGN) | 10 | REMOTE RADIO RECEIVER |
| R DEFOG | 30 | REAR DEFOGGER |
| HTD MlRR | 10 | RIGHT AND LEFT POWER MIRROR-DEFOGGER |
| IPC (BATT) | 10 | INSTRUMENT PANEL CLUSTER |
| THEFT | 10 | PASS-Key@ DECODER MODULE, THEFT DETERRENT RELAY, THEFT DETERRENT MODULE |
| HVACIDABIE | 10 | HEATER AND A/C PROGRAMMER, RAP/ILLUMINATED ENTRY MODULE |
| REAR FOG (EXPORT) | 10 | REAR FOG LIGHTS |
| FOG LP (4.6L) | 10 | FOG LIGHTS |
| CNSL FAN | 10 | REAR BLOWER MOTOR |
| CIGAR | 20 | REAR CIGAR LIGHTERS-SEVILLE ONLY, FRONT CIGAR LIGHTER, CHIME MODULE |
| BODY 2 | 10 | POWER MIRROR SWITCH, RETAINED ACCESSORY POWER, TRUNK LIGHT, CONSOLE SWITCH, PANEL LIGHTS INHIBIT (EXPORT), COURTESY LIGHTS, KEYLESS ENTRY MODULE |
| BODY 1 | 10 | POWER DOOR LOCKS, DOOR LOCK CYLINDER ILLUMINATION, GLOVE BOX LIGHT, FOOTWELL LIGHTS, TWILIGHT SENTINEUDRL MODULE, HEADLIGHT SWITCH |
| READ LP | 10 | LEFT AND RIGHT VANITY MIRRORS, GARAGE DOOR OPENER, FRONT AND REAR HEADER LIGHTS |
| L PRK LP | 10 | RADIO DIMMING, HEADLIGHT SWITCH, INSTRUMENT PANEL CLUSTER, LEFT MARKER LIGHT, LEFT TAIL/STOP/TURN LIGHTS, LEFT PARWTURN LIGHT |
| R PRK LP | 10 | RIGHT MARKER LIGHTS, LICENSE LIGHTS, RIGHT PARWURN LIGHT, ENGINE COMPARTMENT LIGHT, RIGHT TAlL/STOP/TURN LIGHTS |
| RAD (BAT) | 10 | REMOTE RADIO RECEIVER, RADIO CONTROL HEAD |
| ANT/TRUNK | 20 | TRUNK PULL DOWN, POWER ANTENNA |
| ELC | 20 | ELECTRONIC LEVEL CONTROL |
| R HTD SEAT | 10 | PASSENGERS HEATED SEAT |
| L HTD SEAT | 10 | DRIVERS HEATED SEAT |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
