Year of production: 1994

Instrument panel fuse block

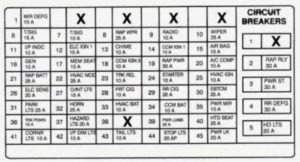

Cadillac Fleetwood – fuse box diagram – instrument panel
Cadillac Fleetwood – fuse box diagram – instrument panel
Fuse number Fuse name Ampere rating Usage
1 MIR DEFG 10 SIDEVIEW MIRROR DEFOGGERS
2
3
4
5
6 T/SIG 15 PARK/NEUTRALAND BACKUP LAMP SWITCH, TURN FLASHER
7 EBTCM/TPS 10 ELECTRONIC BRAKE AND TRACTION CNTRL. MOD. (EBTCM), THROlTLE POSITION SENSOR (TIPS) INTERFACE MODULE
8 RAP WPR 25 RETAINED ACCESSORY PWR. (RAP) WIPER RELAY
9 RADIO 10 RADIO RECEIVER
10 WIPER 25 WINDSHIELD WIPER/WASHER
11 I/P INDC 10 INFLATABLE RESTRAINT DIAGNOSTIC ENERGY RESERVE (WITH SENSOR) MODULE,  INSTRUMENT PANEL CLUSTER INDICATORS
12 ELC IGN 1 10 AUTOMATIC LEVEL CNTRL. SENSOR
13 CHIME 10 WARNING ALARM CRUISE CNTRL. RELEASE SWITCH, REAR WINDOW DEFOG. RELAY, INSULE REAR VIM MIRROR (DDB), CATALYTIC CONVERTER TEMP ALARM (JAPAN ONLY)
14 CCM IGN1 10 CENTRAL CNTRL. MOD. (CCM)
15 AIR BAG 15 INFLATABLE RESTRAINT DIAGNOSTIC ENERGY RESERVE (WITH SENSOR) MOD.
16 GEN 10 ENGINE ELECTRICAL GENERATOR, SECONDARY ELECTRICAL ENGINE COOLING FAN RELAY
17 MEM SEAT 10 DRIVER’S SEAT MEMORY MOD., DRIVER SEAT ADJUSTER CNTRL. MOD.,  HEATED PASSENGER SEAT CNTRL MOD
18 CCM IGN 3 10 REMOTE CARL. DOOR LOCK RECEIVER AND THE DETERRENT MOD
19 RAP PWR 30 RETAINED ACCESSORY PWR. (RAP) PWR RELAY
20 A/C COMP 10 A/C COMPRESSOR RELAY, PRIMARY ELECTRICAL ENGINE, COOLING FAN RELAY
21 RAP BATT 25 RETAINED ACCESSORY PWR. (RAP) WIPER RELAY
22 HVAC MOD. 25 A/C ELECTRILL CNTRL. MOD.
23 TRK REL 10 REAR COMPARTMENT LID RELEASE SW
24 STARTER 10 THEFT DELREN? RELAY INFLAT RESTRAINT DIAGNOSTIC ENERG RESERVE (WITH SENSOR) MOD
25 HVAC IGN 10 INSTRUMENT PANEL GAGE CLUSTER, HVAC.FOWER MOD
26 ELC SENS 20 AUTOMATIC LwEL ANTRL. SENSOR, REAR COMPARTMENT COURTESY LAMP
27 D/INT LTS 15 DELAYED INTERIOR LIGHTS (DIL) RELAY
28 FRT CIG 10 FRONT CIGAR LIGHTERS
29 RR CIG 20 REAR CIGAR LIGHTERS
30 EBTCM 25 ELECTR6NIC BRAKE &TRACTION CNTRL. MOD. (EBTCM)
31 PARK LT 20 FORWARD LAMP WIRING RELAY
32 HORN 25 HORN
33 HVAC BAT 10 WARNING ALARM, INSTRUMENT CLUSTER, HEADLAMP SWITCH, RADIO RECEIVER ALARM, HEATER AND NC CNTRL. ENGINE OIL LEVEL INDICATOR CNTRL~ MOD.
34 CCM BAT 10 CENTRAL CNTRL. MOD. (CCM)
35 PWR MIR 10 DOOR LOCKS,  OUTSIDE REMOTE CNTRL.  REARVIEW MIRRORS SWITCHES,  PWR. SEAT BACK LUMBAR CNTRLS.
36 TRK PDWN 15 TRUNK LID PULL-DOWN UNIT
37 HAZARD LTS 20 HAZARD LAMP FLASHER
39 PWR LUM 20 PWR. SEAT BACK PNEUMATIC  RADIO POWER ANTENNA RELAY CNTRL. MOD,  RADIO POWER ANTENNA RELAY
40 HTD SEAT 20 DRIVERS HEATED SEAT CNTRL. MOD,  PASSENGER HEATED SEAT CNTRL. MOD
41 CORNR LTS 10 INSTRUMENT  CLUSTER, RADIO CNTRL., TURN SIGNAL SWlTCH
42 I/P DIM LTS 10 HEADLIGHT SWITCH, INTERIOR LIGHTS, DIMMING CNTRL
43 TAIL LTS 10 REAR TAIL LIGHTS, REAR SIDE MARKER LIGHTS, LICENSE LAMP
44 STOP LTS 20 STOP LAMP SWITCH
45 PWR LK 20 DOOR LOCK RELAY
C/B 1
C/B 2 RAP RELAY 30 RETAINED ACCESSORY PWR. (RAP) RELAY
C/B 3 PWR ST 30 DRIVERS PWR. SEAT SW., PASSENGER PWR. SEAT SW. ,  MEMORY SEAT MOD
C/B 4 RR DEFG 30 REAR DEFOGGER RELAY
C/B 5 HD LTS 30 HEADLIGHT RELAY, DAYTIME RUNNING UGHTS (DRL)

Underhood (U/H) Electrical Center

The U/H electrical center is located on the passenger side wheel housing in the engine compartment.

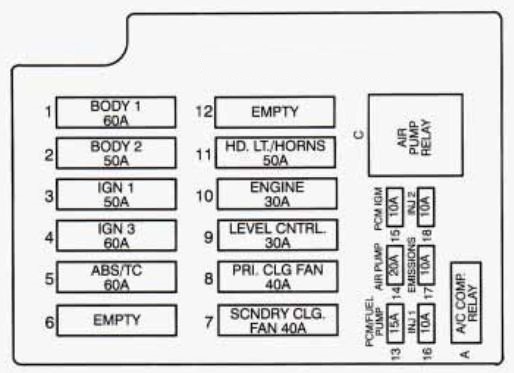

Cadillac Fleetwood – fuse box diagram – underhood electrical center
Cadillac Fleetwood – fuse box diagram – underhood electrical center
Fuse number Fuse name Ampere rating [A] Usage
1 BODY 1 – I/P FUSE BLOCK 60 #3 PWR. SEAT CIRCUIT, BREAKER (30 AMP), #36 TRUNK PULL-DOWN (15 AMP), #37 HAZARD LTS. (20 AMP), #39 PWR. LUMBAR (20 AMP), #40 HEATED SEAT (20 AMP), #44 STOP LTS. (20 AMP), #45 PWR. LOCK (20 AMP)
2 BODY 2 – I/P FUSE BLOCK 50 #21 RAP BAT (25 AMP), #22 HVAC MDL. (25 AMP), #26 ELC. SENS. (20 AMP), #27 D/INT LTS. (15 AMP), #28 FRT CIG. (10 AMP), #29 RR. CIG. (20 AMP), #30 EBTCM (25 AMP), #33 HVAC BAT (10 AMP), #34 CCM BAT (10 AMP), #35 PWR. MIR. (10 AMP), #2 CIRCUIT BREAKER – RAP RLY (30 AMP)
3 IGN 1 50 I/P CONCEALED FUSE,  RKE/UTD SA, I/P FUSE BLOCK, #6 T/SIS-ICA, #7 EBTCMDPS (10 AMP), #8 RAP WPR. (25 AMP), #9 RADIO (10 AMP), #10 WIPER (25 AMP),  #11 I/P IiDC (10 AMP), #12 ELC. IGN. 1 (10 AMP), #13 CHIME (10 AMP), #14 CCM IGN 1 (10 AMP), #15 AIR BAG (15 AMP), #24 STARTER, U/H ELC. CNTR., #15 PCM/IGN (10AMP), #16 INJ 1 (10AMP), #17 EMISSIONS (10 AMP), #18 INJ 2 (10 AMP)
4 IGN 3 40 I/P FUSE BLOCK, #16 GEN. (10 AMP), #17 MEM. SEAT (10 AMP), #18 CCM IGN 3 (10 AMP), #19 RAP PWR. (30 AMP), #20 A/C COMF! (10 AMP), #25 HVAC IGN (10 AMP)
5 ABS/TC 60 BRAKE PRESSURE MODULATOR VALVE (BPMV)
6
7 SCNDRY CLG FAN 40 SECONDARY COOLING FAN CNTRL. RELAY
8 PRIMRY CLG FAN 40 PRIMARY COOLING FAN CNTRL. REIAY
9 LEVEL CNTRL 30 AUTOMATIC LEVEL CNTRL AIR COMR
10 ENGINE 30 #13 PCM/FUEL PUMP (15 AMP), #14 AIR PUMP (20 AMP)
11 I/P FUSE BLOCK CIRCUIT BREAKER #5 HDLTS (20 AMP), #31 PARK LTS. (20 AMP), #32 HORN (25 AMP)
12
13 PCM FUEL PUMP 15 FUEL PUMP RELAY, FUEL PUMP AND ENGINE OIL
PRESSURE INDICATOR SWITCH, POWER TRAIN CONTRL MDL (PCM)
14 AIR PUMP 20 SECONDARY AIR IN (AIR) PUMP RELAY
15 PCM IGN 10 IGN COIL, ELECTRONIC TRANS., (PCM) POWER TRAIN CNTRL. MDL
16 INJ 1 10 FUEL INJ 1,4,6,7
17 EMISSIONS 10 (A.I.R.) PUMP‘RELAY, MASS AIR FLOW (MAF) SENSOR, HEATED OXYGEN SENSOR’S,  EVAPORATIVE EMISSIONS CANNISTER PURGE SOLONOID VALVE
18 INJ 2 10 FUEL INJ 2,3,5,8

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
