Year of production: 1995

Instrument panel fuse block

Cadillac Fleetwood – fuse box diagram – instrument panel
Cadillac Fleetwood – fuse box diagram – instrument panel
Fuse Usage
RAP WPR Component Center (RAP Wiper) Relay
RADIO Radio Receiver
WIPER Windshield Wipermasher Switch
I/P INDC Inflatable Restraint Diagnostic Energy Reserve (with Sensor) Module, Instrument Panel Cluste
TISIG Parmeutral Position and Backup Lamp Switch, Turn Signal Lamp Flasher
CHIME Warnin Alarm Cruise Control Release Switch, Inside Rearview Mirror,%ear dindow Defogge! Relay, Parmeutral Position and Backup Lamp Switch, Automatic Level Control Sensor
CCM IGN 1 Central Control Module (CCM)
AIR BAG Inflatable Restraint Diagnostic Energy Reserve (with Sensor) Module
GEN Generator, Secondary Engine Cooling Fan Relay
MEM SEAT Driver’s Seat Ad’uster Memory Module, Heated Driver’s Seat Switch, Heated 4 assenger’s Seat Swltch
CCM IGN 3 Central Control Module (CCM) Remote Control Door Lock Receiver and Theft Deterrent dodule, Cruise Control Module, Cruise Control Swtcht
RAP PWR Accessory Time Delay Cut-Off (RAP Power) Relay
A/C COMP A/C Compressor Relay, Primary Engine Cooling Fan Relay
RAP BATT Component Center (RAP Wiper) Relay
HVAC MDL Blower Motor Control Module
TRK REL Rear Compartment Lid Release Switch
STARTER Theft Deterrent Relay, Inflatable Restraint Diagnostic Energy Reserve (with Sensor) Module
HVAC IGN Instrument Cluster, Heater-A/C Control, Vacum/Electric Solenoid, Electric Actuator
ELC SENS Automatic Level Control Sensor, Rear Compartment Courtesy Lamp
D/INT LTS Compartment Center Relay
FRT CIG Front Cigar Lighter
RR CIG Rear Cigar Lighter
PARK LTS Park Lamp Relay
HORN Horn Relay
HVAC BAT Warning Alarm, Heater-A/C Control, Instrument Cluster, Headlamp Switch, Radio Reciver
CCM BAT Center Control Module (CCM)
PWR MIR Door Lock Switches, Outside Rearview Mirrors, Ignition Key Disable Relay Assembly
TRK PDWN Rear Compartment Lid Pull-Down Actutor
HAZARD LTS Hazard Lamp Flasher
STOP-LTS Stoplamps Switch
PWR LK Door Lock Relay
HTD SEAT Heated Driver’s and Passenger’s Seat Control Modules
CORNR LTS Instrument Cluster, Radio Control, Cornering Lamps, Turn Signal Switch, Front Park Lamps
I/P DIM LTS Headlamp Switch Control for Interior Lamps, Dimming
TAIL LTS Rear Taillamps, Rear Side Marker Lamps, License Lamp
MIR DEFG Outside Rearview Mirror Defogger



Circuit Breaker Usage
PWR RECL Lumbar, Power Antenna
RAP RLY Accesory, Time Delay Cut-Off (RAP Power) Relay
PWR SEAT Driver’s amd Passenger’s Adjuster Switches, Driver’s Seat Adjuster Memory Module, Driver’s and Passenger’s Seats Recline Switches
RR DEFOG Rear Defogger Relay
HD LTS Headlamp Relay, Daytime Running Lamps (DRL) Relay

Underhood Electrical Center

The electrical center is located on the passenger side wheel housing in the engine compartment.

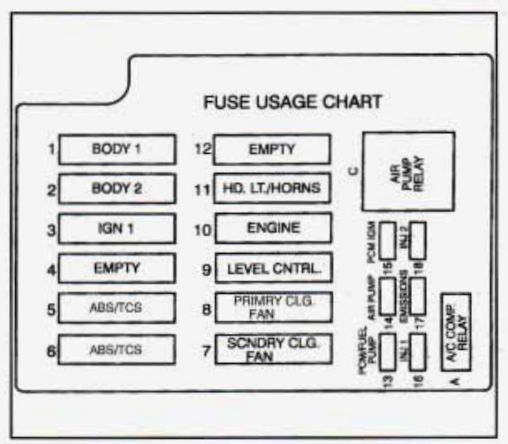

Cadillac Fleetwood – fuse box diagram – underhood electrical center
Cadillac Fleetwood – fuse box diagram – underhood electrical center
Maxi Fuse Usage
BODY 1 Circuit Breakers: PWR SEAT, RRDEFOG; I/P Fuses: TRK PDWN, WRD LTS, HTD SEAT, STOP-LTS, PWR LK
BODY 2 Circuit Breaker: RAP RLY, I/P Fuses: RAP BAm, HVAC MDL, ELC SENS, D/INT LTS, FRT CIG, RRCIG, HVAC BAT, CCM BAT, PWR MIR
IGN 1 Concealed Fuse; I/p Fuses: RAP WPR, RADIO, WIPER, I/P INDC, T/SIG, CHIME, .CCM IGN 1, AIR BAG, STARTER; U/H Electrical Center: PCM IGN, INJ1, EMISSIONS, I
ABSECS (#5) ABS/TCS Brake Pressure.Modulator Valve
ABSECS (#6) ABS/TCS Brake Pressure.Modulator Valve
SCNDRY CLG FAN Secondary Engine Cooling Fan Rel
PRIMRY CLG FAN Pfimary .Engine Cooling Fan Relay
LEVEL CONTROL Automatic Level Control Air Compress
ENGINE U/H Electrical Center: PCM/FUEL PUMP, AIR PUMP
HEADLIGHTS/
HORNS
Circuit-Breaker: HD LTS; I/P Fuses: PARK LTS, HORN



Mini Fuse Usage
PCM/FUEL PUMP Fuel Pump Relay, Fuel Pump/Engine Oil Pressure Indicator Switch, Powertrain Control Module (PCM)
AIR PUMP Seconday Air’Injection (AIR) Pump Relay
PCM/IGN Powertrain Control Module (PCM), Ignition Coil
INJ 1 Fuel Injectors Cylinders 1,4,6,7
EMISSIONS Exhaust Gas.Recirculation (EGR); Vacuum Control Signal Solenoid Valve, Secondary Air Injection (AIR), Pump Relay (Coil), Mass-&Flow Sensor, Electronic Transmission, Left and Right Heated Oxygen Sensors, Evaporative Emission (EVAP)l Canisterpurge Solenoid Valve
INJ 2 Fuel Injectors Cylinders 2,3,5, 8



Relay Usage
A/C COMP RELAY A/C Compressor Relay
AIR PUMP RELAY Secondary Air Injection -(AIR) Pump Relay

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
