Cadillac Seville (1994) – fuse box diagram
Year of production: 1994

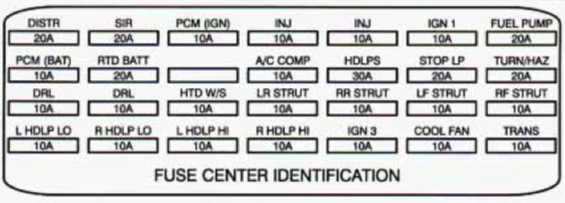

Engine compartment fuse block
| Fuse name | Ampere rating | Usage |
| DISTR | 20 |
IGNITION CONTROL MODULE |
| SIR | 20 |
DIAGNOSTIC/ENERGY RESERVE MODULE (DERM), DUAL POLE ARMING SENSOR |
| PCM (IGN) | 10 | POWERTRAIN CONTROL MODULE (PCM), PASSKey DECODER MODULE |
| INJ | 10 |
1, 4, 6, AND 7 FUEL INJECTORS |
| INJ | 10 |
2, 3, 5 AND 8 FUEL INJECTOR |
| IGN | 10 |
A/C REFRIGERANT PRESSURE SWITCH, TRANSAXLE RANGE SWITCH, STOP/BTSI/CRUISE BRAKE SWITCH, INSTRUMENT PANEL CLUSTER, KEYLESS ENTRY MODULE , DIAGNOSTIC/ENERGY RESERVE MODULE (DERM), CORNERING LIFHTS, TURN/HAZARD SWITCH ASSY., CHIME MODULE, HEADLIGHT SWITCH, TWLIGHT SENTINEL/DRL MODULE |
| FUEL | 20 | FUEL PUMP, POWERTRAIN CONTROL MODULE (PCM) |
| PCM (BAT) | 10 | POWERTRAIN CONTROL MODULE (PCM) |
| RTD (BAT) | 20 | ROAD SENSING SUSPENSION (RSS) MODULE |
| A/C COMP | 10 | A/C COMPRESSOR CLUTCH |
| HDLPS | 30 | HEADLIGHT DIMMER SWITCH, HEADLIGHT RELAY “D” (ENGINE COMP. MICRO RELAY CENTER), DRL HEADLIGHT RELAY “E” (WITH DAYTIME RUNNING LIGHTS), POWERS C13 |
| STOP LP | 20 | STOP/BTSI/CRUISE SWITCH, STOPL LIGHTS SWITCH CAPACITOR |
| TURN/HAZ | 20 | HAZARD FLASHER, TURN FLASHER RELAY, TURN FLASHER MODULE |
| DRL (CANADA) | 10 | DAYTIME RUNNING LIGHTS (CANADA) |
| DRL (CANADA) | 10 |
LEFT AND RIGHT LO BEAM HEADLAMP |
| HTD W/S | 10 |
HEATED WINDSHIELD CONTROL MODULE |
| L HDLP LO | 10 | LEFT LO BEAM HEADLAMP |
| R HDLP LO | 10 | RIGHT LO BEAM HEADLAMP |
| L HDLP HI | 10 | LEFT HI BEAM HEADLAMP |
| R HDLP HI | 10 | RIGHT HI BEAM HEADIAMP |
| IGN 3 | 10 | REAR DEFOGGER RELAY, ELECTRONIC LEVEL CONTROL (ELC), HEATED WINDSHIELD, HEATER AND A/C PROGRAMMER, CRUISE CONTROL |
| COOLING FAN | 10 | EXTENDED TRAVEL BRAKE SWITCH, POWERTRAIN CONTROL MODULE (PCM), COOLING FAN RELAYS 1,2 AND 3, FRONT AND REAR HEATED OXYGEN SENSOR |
| TRANS/ECS | 10 | OVERSPEED ALERT MODULE (EXPORT), POWER STEERING PRESSURE SWITCH, EXHAUST GAS RECIRCULATION (EGR) VALVE, TRANSAXLE SHIFT SOLENOIDS A&B, EVAPORATIVE EMISSION CONTROL SOLENOID, POWERTRAIN CONTROL MODULE (PCM), TORQUE CONVERTER CLUTCH SOLENOID, TCC BRAKE SWITCH |

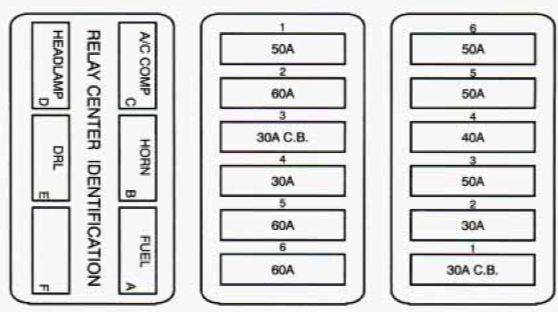

Maxi Fuse block
LH MAXI FUSE BLOCK
| Fuse | Ampere rating [A] | Usage | |
| FUSE 1 | STRG1-2 | 50 | RETAINED ACCESSORY POWER (RADIO/WIPERS), STARTER, TRUNK COMR FUSE B11 AND B13 |
| FUSE 2 | BODY | 60 | ENGINE COMP B11, ROAD SENSING SUSPENSION, FOG LIGHTS, TRUNK COMP FUSE C1, C3, C5, C7, C9 AND C11, TRUNK COMP. FUSE C13 (EXPORT), REAR FOG LIGHT (EXPORT) |
| CIRCUIT BREAKER 3 | SEAT | 30 | LEFT AND RIGHT POWER SEAT SWITCHES, LEFT AND RIGHT LUMBAR RELAYS, POWER DOOR LOCKS, KEYLESS ENTRY MODULE, HORNS |
| FUSE 4 | IPC | 30 | POWERTRAIN CONTROL MODULE (PCM), ELECTRONIC CLIMATE CONTROL, RAP/ILLUMINATED ENTRY MODULE, INSTRUMENT PANEL CLUSTER, PASSKey DECODER MODULE, THEFT DETERRENT |
| FUSE 5 | HVAC | 60 | LEFT AND RIGHT HEATED SEATS, ELECTRONIC LEVEL CONTROL (ELC), TRUNK LID PULL DOWN, POWER ANTENNA, REAR DEFOGGER, LEFT AND RIGHT MIRROR DEFOGGERS |
| FUSE 6 | STRG 3 | 60 | RETAINED ACCESSORY POWER (SUNROOFtPOWER WINDOWS), ENGINE COW FUSES D1, D3, D5, TRUNK COW FUSES A1, A3, A5, A7, A9 |
RH MAXI FUSE BLOCK
| Fuse | Ampere rating [A] | Usage | |
| CIRCUIT BREAKER 1 | DAB | 30 | RETAINED ACCESSORY POWER (RAP) (SUNROOF/POWER WINDOWS) |
| FUSE 2 | RADIO | 30 | DELCO-BOSE SPEAKERS, RADIO CONTROL HEAD, REMOTE RADIO RECIVER |
| FUSE 3 | COIL | 50 | COOLING FANS |
| FUSE 4 | HVAC BLOWER (BLOWER) | 40 | HVAC POWER MOTOR, A/C COMPRESSOR |
| FUSE 5 | ABS (BRAKES) | 50 | BRAKE PRESSURE MODULATOR VALVE |
| FUSE 6 | LAMPS | 50 | TURN FLASHER MODULE, HAZARD FLASHER, STOP/BTS/CIRCUISE BRAKE SWITCH, PARKING LIGHTS, DAY TIME RUNNING LIGHTS (CANADA), ENGINE COMP. FUSES B1, B3 AND B5, TRUNK COMP. FUSES D11, D13 |

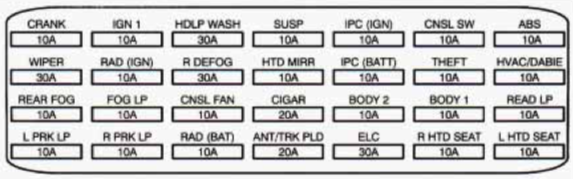

Rear Compartment Fuse Block
| Fuse name | Ampere rating [A] | Usage |
| CRANK | 10 | RAP/ILLUMINATED ENTRY MODULE, DIAGNOSTIC ENERGY RESERVE MODULE (DERM), TRANSAXLE RANGE SWITCH (NSSS) |
| IGN 1 | 10 | FUEL LEVEL SENSOR, ELECTROCHROMIC MIRROR, RAP/ILLUMINATED ENTRY MODULE, THEFT DETERRENT MODULE, KEYLESS ENTRY MODULE, TURN FLASHER RELAY “F” TRUNK COMP. MICRO RELAY CENTER, CATALYTIC CONVERTER ALARM MODULE (EXPORT) |
| HDLP WASH (EXPORT) | 30 | HEADLIGHT WASHER MODULE |
| SUSP (IGN) | 10 | ROAD SENSING SUSPENSION (RSS) MODULE |
| IPC (IGN) | 10 | INSTRUMENT PANEL CLUSTER |
| CNSL SW | 10 | REAR BLOWER RELAY “E”, CONSOLE SWITCH |
| ABS | 10 | ELECTRONIC BRAKE AND TRACTION CONTROL MODULE (EBTCM) |
| WIPER | 30 | WIPER/WASHER SWITCH |
| RAD (IGN) | 10 | REMOTE RADIO RECEIVER |
| R DEFOG | 30 | REAR DEFOGGER |
| HTD MIRR | 10 | LT AND RT POWER MIRROR-DEFOGGER |
| IPC (BATT) | 10 | INSTRUMENT PANEL CLUSTER |
| THEFT | 10 | PASS-key DECODER MODULE, THEFT DETERRENT RELAY “D” (TRUNK COMP. RELAY CENTER), THEFT DETERRENT MODULE |
| HVAC/DABI | 10 | HEATER AND NC PROGRAMMER, RAP/ILLUMINATED ENTRY MODULE |
| REAR FOG | 10 | REAR FOG LIGHTS RELAY A (EXPORT) |
| FOG LP | 10 | FOG LIGHTS RELAY A AND F |
| CNSL FAN | 10 | REAR BLOWER MOTOR, REAR BLOWER RELAY |
| CIGAR | 20 | REAR CIGAR LIGHTERS, FRONT CIGAR LIGHTER SEVILLE ONLY), FRONT CIGARETTE LIGHTER, CHIME MODULE |
| BODY 2 | 10 | POWER MIRROR SWITCH, RAP RELAY, LOCK-OUT INHIBIT RELAY “B” (TRUNK COMP. 1 MICRO RELAY CENTER), PANEL LIGHTS INHIBIT RELAY “F” (TRUNK COMP 3 MICRO RELAY CENTER) (EXPORT), COURTESY LIGHTS RELAY “C” (TRUNK COMP. 2 MICRO RELAY CENTER), RAP RELAY “E” (TRUNK COMP 2 MICRO RELAY CENTER), KEYLESS ENTRY MODULE, TRUNK LAMP, SEAT BELT RETRACTIO SOLENOIDS (ELDORADO ONLY) |
| BODY 1 | 10 | REAR DOOR LOCKS SWITCHES (SEVILLE ONLY), FRONT DOOR LOCK SWITCHES, GLOVE BOX LAMP, LT AND RT FOOTWELL COURTESY LAMPS, HEADLIGHT SWITCH |
| READ LP | 10 | LT AND RT FRONT HEADER LAMP, LT AND RT VANITY MIRRORS, GARAGE DOOR OPENER, LT AND RT REAR HEADER LAMPS |
| L PRK LP | 10 | LT REAR RT FRONT HEADER LAMP, LT FRONT PARK/TURN LAMPS, FRONT AND REAR LEFT SIDE MARKER LAMPS, RADIO CONTROL HEAD, HEADLIGHT SWITCH, INSTRUMENT PANEL CLUSTER |
| R PRK LP | 10 | RT TAIL/STOP TURN LAMPS, RT FRONT AND REAR SIDE MARKER LAMPS, RT FRONT PARK AND TURN LAMPS, ENGINE COMP LAMP LICENCE PLATE LAMPS |
| RAD (BAT) | 10 | RADIO |
| ANT/TRK | 20 | TRUNK LID PULL DOWN MOTOR, POWER ANTENNA |
| ELC | 30 | ELECTRONIC LEVEL CONTROL (ELC) |
| R HTD SEAT | 10 | PASSENGERS HEATED SEAT |
| L HTD SEAT | 10 | DRIVERS HEATED SEAT |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
