Cadillac XLR (2009) – fuse box diagram
Year of production: 2009

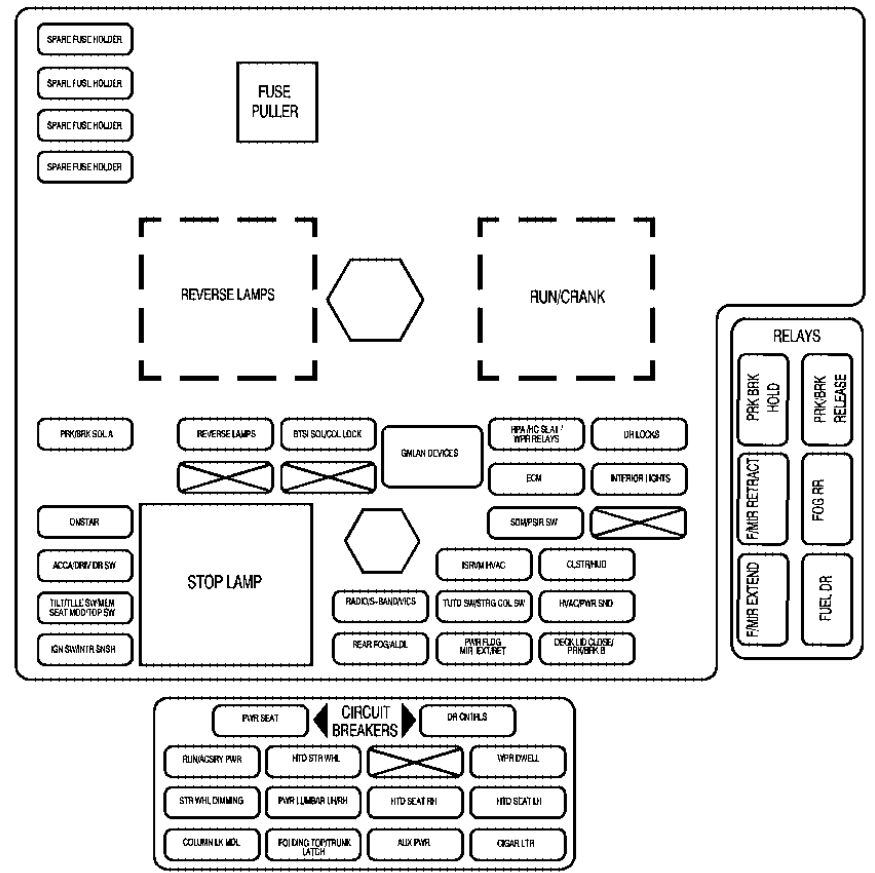

Instrument Panel Fuse Block
The panel fuse block is located on the passenger’s side of the vehicle, under the instrument panel and under the toe-board.
| Fuses | Usage |
| ACCA/DRIV DR SW | Adaptive Cruise Control (ACC), Driver Door Switch |
| AUX PWR | Auxiliary Power |
| BTSI SOL/COL LOCK | Brake Transmission Shift Interlock Solenoid, Column Lock |
| CIGAR LTR | Cigar Lighter |
| CLSTR/HUD | Instrument Panel Cluster, Heads-up Display (HUD) |
| COLUMN LK MDL | Not Used |
| DECK LID CLOSE/PRK/BRK B | Trunk Close Button, Parking Brake Solenoid B |
| DR LOCKS | Door Locks |
| ECM | Engine Control Module |
| EMPTY | Not Used |
| EMPTY | Not Used |
| EMPTY | Not Used |
| EMPTY | Not Used |
| EMPTY | Not Used |
| FOLDING TOP/TRUNK LATCH | Retractable Hardtop, Trunk Latch |
| FUSE PULLER | Fuse Puller |
| GMLAN DEVICES | GMLAN Devices |
| HTD STR WHL | Heated Steering Wheel |
| HTD/SEAT LH | Driver Side Heated Seat |
| HTD/SEAT RH | Passenger Side Heated Seat |
| HVAC/PWR SND | Climate Control System, Power Sounder |
| IGN SW/INTR SNSR | Ignition Switch, Intrusion Sensor |
| INTERIOR LIGHTS | Interior Lights |
| ISRVM/HVAC | Inside Rearview Mirror, Climate Control System, Column Lock, Power Sounder |
| ONSTAR | OnStar® |
| PRK/BRK SOL A | Parking Brake Solenoid A |
| PWR FLDG MIR-EXT/RET | Power Folding Mirror |
| PWR LUMBAR LH/RH | Power Lumbar |
| RADIO/S-BAND/VICS | Radio, S-Band, CD Changer |
| REAR FOG/ALDL | Rear Fog Lamps, Diagnostic Link Connector |
| REVERSE LAMP | Reverse Lamp |
| REVERSE LAMP | Reverse Lamp |
| RPA/H/C SEAT/WPR RELAYS | Rear Park Aid, Heated/Cooled Seats, Windshield Wiper Relays |
| RUN/ACSRY PWR | Run, Accessory Power |
| Starter/Crank | Starter/Crank |
| SDM/PSIR SW | Airbags |
| SPARE FUSE HOLDER | Spare Fuse |
| SPARE FUSE HOLDER | Spare Fuse |
| SPARE FUSE HOLDER | Spare Fuse |
| SPARE FUSE HOLDER | Spare Fuse |
| STOP LAMP | Stoplamp |
| STR WHL DIMMING | Steering Wheel Control Button Lights |
| TILT/TELE SW/MEM SEAT MOD/TOP SW | Power Tilt Wheel, Telescopic Steering Column, Memory Seat, Driver Seat Switch, Retractable Hardtop Switch |
| TUTD SW/STRG COL SW | Tap-Up/Tap-Down Switch |
| WPR DWELL | Rainsense™ |
| Relays | Usage |
| PRK/BRK HOLD | Park Brake Hold |
| PRK/BRK RELEASE | Park Brake Release |
| F/MIR RETRACT | Not Used |
| FOG RR | Not Used |
| F/MIR EXTEND | Not Used |
| FUEL DR | Fuel Door |
| Circuit Breakers | Usage |
| PWR SEAT | Power Seats |
| DR CNTRLS | Door Controls |

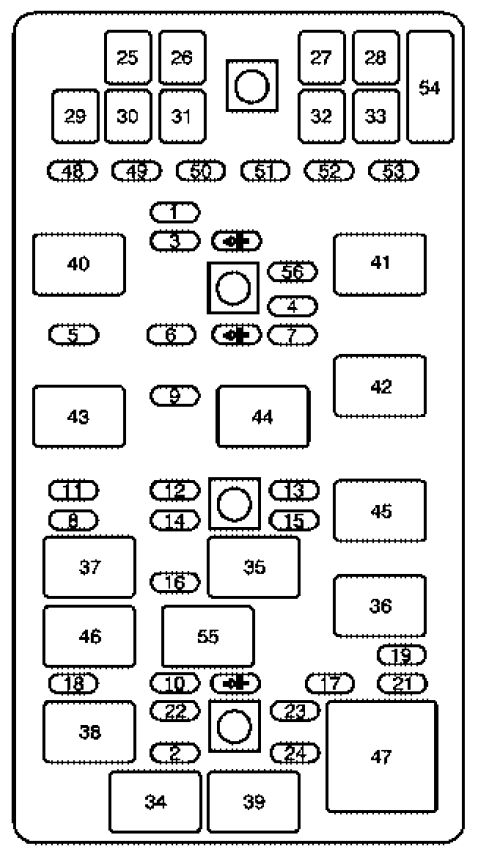

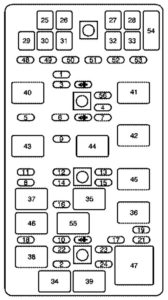

Underhood Fuse Block
The underhood fuse block is located next to the engine on the passenger’s side of the vehicle.
| Fuses | Usage |
| 1 | Antilock Brake System, Electronic Suspension Control, Adaptive Forward Lighting System (AFS) |
| 2 | Horn |
| 3 | Adaptive Cruise Control (ACC), Transmission Controls |
| 4 | Windshield Wipers |
| 5 | Stop/Back-Up Lamps |
| 6 | Oxygen Sensor |
| 7 | Battery 5 |
| 8 | Parking Lamps |
| 9 | Electronic Throttle Control |
| 10 | Fuel Pump |
| 11 | Antilock Brake System |
| 12 | Odd Injectors |
| 13 | Electronic Suspension Control |
| 14 | Emission Controls |
| 15 | Air Conditioning Compressor |
| 16 | Even Injectors |
| 17 | Windshield Washer, Adaptive Forward Lighting System (AFS), Intercooler Pump |
| 18 | Headlamp Washer |
| 19 | Right Low Beam Headlamp |
| 20 | Not Used |
| 21 | Left Low Beam Headlamp |
| 22 | Fog Lamp |
| 23 | Right High Beam Headlamp |
| 24 | Left High Beam Headlamp |
| 25 | Cooling Fan |
| 26 | Battery 3 |
| 27 | Anti-Lock Brakes |
| 28 | Climate Controls |
| 29 | Battery 2 |
| 30 | Starter |
| 31 | Audio Amplifier |
| 32 | Not used |
| 33 | Battery 1 |
| 48 | Spare |
| 49 | Spare |
| 50 | Spare |
| 51 | Spare |
| 52 | Spare |
| 53 | Not Used |
| 54 | Fuse Puller |
| 56 | Engine Control Module, Transmission Control Module |
| Relays | Usage |
| 34 | Horn |
| 35 | Air Conditioning Compressor |
| 36 | Windshield Washer |
| 37 | Parking Lamps |
| 38 | Fog Lamps |
| 39 | High Beam Headlamps |
| 40 | Rear Window Defogger |
| 41 | Windshield Wiper High/Low |
| 42 | Wiper RUN/ACCESSORY Power |
| 43 | Starter/Crank |
| 44 | Ignition 1 |
| 45 | Windshield Wiper On/Off |
| 46 | Headlamp Washer |
| 47 | Low Beam Headlamps |
| 55 | Fuel Pump |
| Diodes | Usage |
 |
Diode 1 |
| |
Wiper diode |
| |
Diode 2 |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
