Chery A1 (2007 – 2015) – fuse box diagram
Year of production: 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015

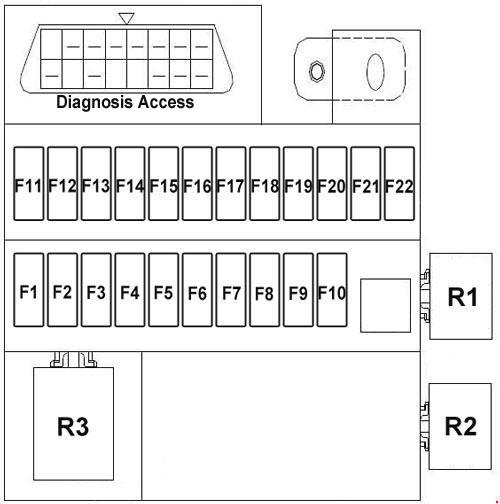

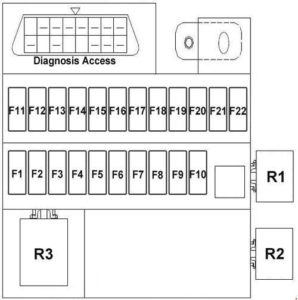

The instrument panel fuse panel
No. |
A |
Function/component |
F1 | 10 | Combined instruments |
F2 | 10 | Rear view mirror, brake switch, BCM |
F3 | 10 | ABS control |
F4 | 10 | Air Bag |
F5 | – | Not used |
F6 | 15 | Washer, rear wiper power supply, sunroof control |
F7 | 10 | Steering power supply, A/C relay coil |
F8 | 15 | Front wiper |
F9 | 15 | Cigarette lighter |
F10 | 10 | Radio/player control |
F11 | – | Not used |
F12 | 25 | Start |
F13 | 10 | Diagnosis Access |
F14 | 10 | Braking Lamp |
F15 | 20 | Audio device |
F16 | 15 | Horn, fog lamp |
F17 | – | Not used |
F18 | 10 | Clearance lamp, ceiling lamp |
F19 | 15 | Alarm switch |
F20 | 10 | Lamp switch, instrument |
F21 | 20 | Sunroof power supply |
F22 | 20 | Rear defroster |
Relay | ||
R1 | Blower Relay | |
R2 | Steering relay | |
R3 | Front wiper relay |

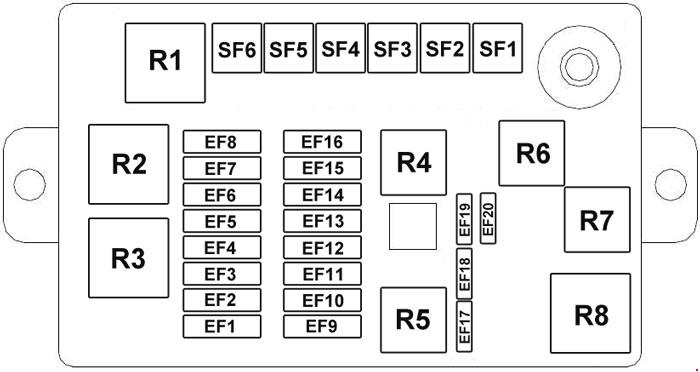

Engine compartment fuse box
No. |
A |
Function/component |
SF1 | 30 | Fan. high speed |
SF2 | 30 | BCM |
SF3 | 30 | A/C |
SF4 | 40 | Instrument electric |
SF5 | 30 | ABS |
SF6 | 30 | ABS |
EF1 | 20 | Fan. low speed |
EF2 | 15 | Front fog lamp |
EF3 | 10 | ECU |
EF4 | 15 | Fuel pump |
EF5 | 30 | Primary relay |
EF6 | 10 | Compressor |
EF7 | 15 | Oxygen sensor |
EF8 | – | Not used |
EF9 | 15 | Ignition coil |
EF10 | 10 | Backup lamp |
EF11 | 10 | Right position lamp |
EF12 | 10 | Left position lamp |
EF13 | 10 | Right high beam |
EF14 | 10 | Left high beam |
EF15 | 10 | Right low beam |
EF16 | 10 | Left low beam |
EF17 | 10 | Spare |
EF18 | 10 | Spare |
EF19 | 10 | Spare |
EF20 | 10 | Spare |
Relay | ||
R1 | Front Fog Lamp Relay | |
R2 | Fan High Speed Relay | |
R3 | Fan Low Speed Relay | |
R4 | Low Beam Relay | |
R5 | Compressor | |
R6 | High Beam Relay | |
R7 | Main relay | |
R8 | Electric Fuel Pump |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
