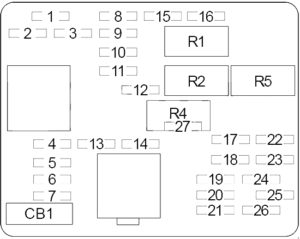

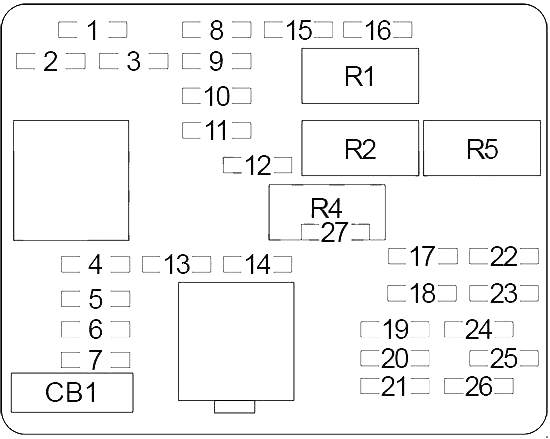

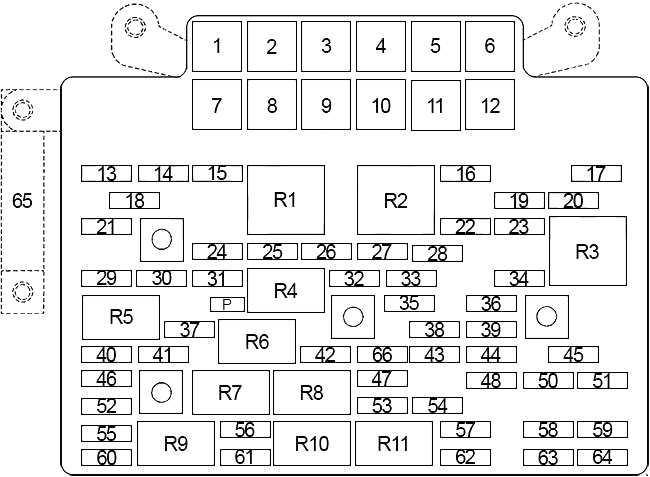

No.
|
A
|
Protected Component |
1 |
40 |
Trailer Wiring, Automatic Level Control (ALC) Compressor Relay |
2 |
– |
– |
3 |
50 |

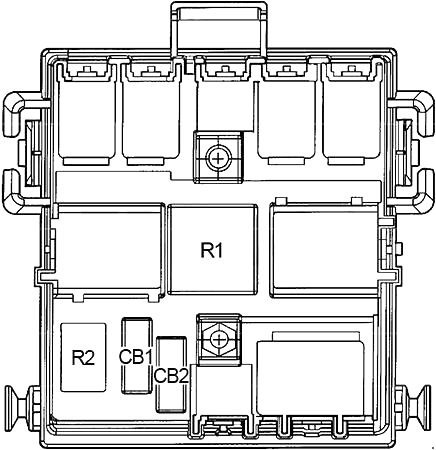

Circuit Breaker (Passenger Compartment Relay Box): “CB1”, “CB2” |
4 |
40 |
Blower Motor |
5 |
50 |
Fuse (Passenger Compartment): “6”, “19”, “24” “27” |
6 |
30 |
Off Road Lamps, Trailer Wiring |
7 |
60 |
Electronic Brake Control Module (EBCM) |
8 |
60 |
Electronic Brake Control Module (EBCM), Automatic Level Control (ALC) Compressor |
9 |
40 |
Ignition Switch |
10 |
– |
– |
11 |
40 |
Ignition Switch |
12 |
50 |
Fuse (Passenger Compartment): “20”, “21”, “25” “26”, “CB1” |
13 |
15 |
Parking Lamps Trailer Wiring |
14 |
10 |
Right Rear Parking and Side Marker Lamps |
15 |
10 |
Left Rear Parking and Side Marker Lamps |
16 |
10 |
Interior Lamps |
17 |
25 |
Stop Lamp Switch |
18 |
10 |
Body Control Module (BCM), Pass-Key Module |
19 |
25 |
Sunroof Relay |
20 |
30 |
Roof Beacon Relay, Off-Road Lamps |
21 |
15 |
Rear Wheel Steering Control Module, Evaporative Emission (EVAP) Canister Vent Solenoid |
22 |
30 |
HVAC Control Assembly (Rear Auxiliary) |
23 |
20 |
Accessory Power Outlets, Auxiliary Power Outlets |
24 |
15 |
Powertrain Control Module (PCM), Mass Air Flow (MFS) Sensor, Evaporative Emission (EVAP) Canister Purge Solenoid, Fuel Composition Sensor, Secondary Fuel Pump Relay |
25 |
15 |
Throttle Actuator Control (TAC), Electronic Brake Controller |
26 |
15 |
Odd: Ignition Coils, Fuel Injectors |
27 |
15 |
Even: Ignition Coils, Fuel Injectors |
28 |
10 |
A/? Compressor Relay, Park/Neutral Position (PNP) Swtich, Turn Signal/Multifunction Switch, Headlamp Leveling Components, Instrument Panel Cluster, Clutch Start Switch |
29 |
30 |
Automatic Level Control (ALC) Compressor, Electronic Suspension Control (ESC) Module |
30 |
10 |
Backup Lamps Trailer Wiring, Back-Up Alarm, Body Control Module (BCM) |
31 |
20 |
Powertrain Control Module, Fuel Pump |
32 |
15 |
Oxygen Sensors |
33 |
20 |
Backup Lamps, Park/Neutral Position Switch (PNP) |
34 |
30 |
Rear Window Defogger Relay |
35 |
15 |
Oxygen Sensors |
36 |
15 |
Inflatable Restraint Sensing and Diagnostic Module (SDM), Memory Seat Module (Passenger), Inside Reaview Mirror |
37 |
10 |
Front Parking Lamps, Front Side Marker Lamps |
38 |
10 |
Rear Window Defogger Relay, Instrument Panel Cluster (IPC), Rear Object Sensor Control Module, Selectable Ride Switch |
39 |
10 |
Body Control Module (BCM) |
40 |
10 |
Left Headlamp (High Beam) |
41 |
20 |
Left Headlamp (Xenon) |
42 |
10 |
Daytime Running Light Relay |
43 |
10 |
Instrument Panel Cluster/Driver Information Center |
44 |
10 |
HVAC Control Module |
45 |
15 |
Cigarette Lighter, Data Link Connector |
46 |
10 |
Right Headlamp (High Beam) |
47 |
10 |
Air Conditioning Compressor Relay |
48 |
– |
– |
49 |
– |
– |
50 |
15 |
Audio System, Digital Radio Receiver, Rear Seat Audio |
51 |
15 |
Insturment Panel Cluster (IPC), Rear Fog Lamp Relay, Overhead Console, Roof Beacon Switch, Rear Heated Seats, HomeLink (Garage Door Opener) |
52 |
10 |
Left Headlamp (Low Beam) |
53 |
10 |
Brake Transmission Shift Interlock System |
54 |
10 |
Starting System, Powertrain Control Module (Gasoline), Engine Control Module (Diesel), Transmission Control Module (TCM) |
55 |
10 |
Right Headlamp (Low Beam) |
56 |
15 |
Front Fog Lamps Relay |
57 |
15 |
Windshield Washer Pump |
58 |
15 |
Vehicle Communication Interface Module (VCIM), Rear Seat Entertainment (RSE) Assembly, Remote Playback Device-CD Player |
59 |
30 |
Radio Amplifier |
60 |
20 |
Right Headlamp (Xenon) |
61 |
15 |
Horn |
62 |
15 |
Electronic Adjustable Pedals (EAP) Relay |
63 |
30 |
Transfer Case Encoder Motor, Transfer Case Shift Control Module |
64 |
15 |
Supplemental Brake Assist Pump Motor, Fuel Pump Relay (Secondary) |
65 |
125 |
Cust Feed |
66 |
10 |
Generator Battery Control Module |

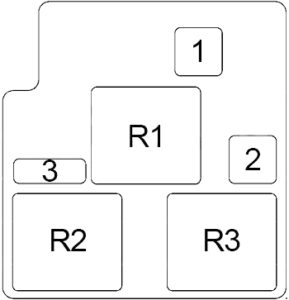

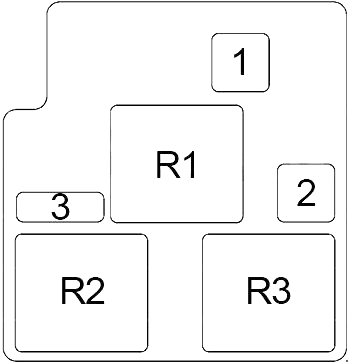

Relay |
R1 |
Parking Lamps, Side Marker Lamps |
R2 |
Starter |
R3 |
Ignition |
R4 |
Fuel Pump |
R5 |
Headlamp High Beam |
R6 |
Daytime Running Light |
R7 |
Headlamp (Low Beam) |
R8 |
Air Conditioning Compressor |
R9 |
Front Fog Lamps |
R10 |
Horn |
R11 |
Windshield and Rear Window Washer Pump |
