Chevrolet Aveo (2002 – 2011) – fuse box diagram
Year of production: 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011

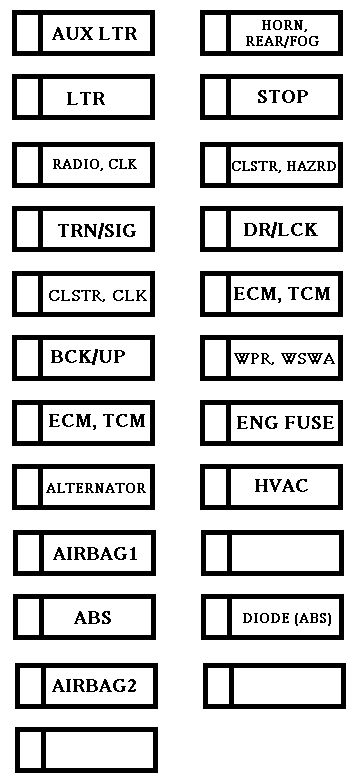

Instrument panel fuse block
The instrument panel fuse block is located on the end of the instrument panel on the driver side of the vehicle.
Hatchback
| Fuses | Usage |
| AUX LTR | Auxiliary Cigarette Lighter |
| HORN, REAR/FOG | Horn, Rear Fog Lamps |
| LTR | Cigarette Lighter |
| STOP | Stop Lamp |
| RADIO, CLK | Audio, Clock |
| CLSTR, HAZARD | Instrument Panel Cluster, Hazard Flasher |
| TRN/SIG | Turn Signal |
| DRL/LCK | Door Lock, Remote Keyless Entry |
| CLSTR, CLK | Instrument Panel Cluster, Clock |
| ECM, TCM | Engine Control Module (ECM), Transmission Control Module (TCM) |
| BCK/UP | Back-Up Lamp |
| WPR, WSWA | Wiper, Washer |
| ECM, TCM | Engine Control Module (ECM), Transmission Control Module (TCM) |
| ENG FUSE | Engine Fuse |
| ALTERNATOR | Alternator |
| HVAC | HVAC Blower |
| AIRBAG 1 | Airbag 1 |
| BLANK | Not Used |
| ABS | Antilock Brake System |
| DIODE (ABS) | Antilock Brake System Diode |
| AIRBAG 2 | Airbag 2 |
| BLANK | Not Used |
| CLK, RADIO | Clock, Audio |
Sedan
| Fuses | Usage |
| SDM | Sensing and Diagnostic Module |
| WIPER | Windshield Wiper Switch, Windshield Wiper Motor |
| CLUSTER | Instrument Panel Cluster, Brake Switch, Anti-theft Mode |
| T/SIG | Turn Signal, Hazard Switch |
| EMS2 | Stoplamp Switch |
| EMS1 | Engine Room Fuse Block, Rear HO2S, Transmission Control Module, VSS, Fuel Pump |
| STOP LAMP | Brake Switch |
| CIGAR | Cigarette Lighter, Auxiliary Power Outlet |
| AUDIO/CLOCK | Radio, Clock |
| OBD | On-Board Diagnostics, Immobilizer |
| ROOM LAMP | Trunk Lamp, Trunk Open Switch, Cluster, Dome Lamp |
| DEFOGGER | Rear Defogger |
| SUNROOF | Sunroof Module (Option) |
| DRL | Daytime Running Lamps |
| DOOR LOCK | Door Lock/Unlock |
| B/UP LAMP | Back-up Lamps |
| HORN | Horn |
| ELEC MIRROR | Mirror Control Switch, Dome Lamp, Air Conditioning Switch |
| AUDIO/RKE | Radio, Remote Keyless Entry, Clock, Power Mirror Unit, Anti-Theft Module |
| DEFOG MIRROR | Power Mirror Unit, Air Conditioning Switch |
| BLANK | Not Used |
| BLANK | Not Used |
| BLANK | Not Used |
| BLANK | Not Used |

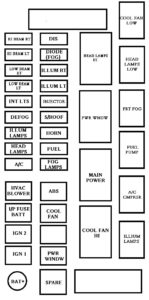

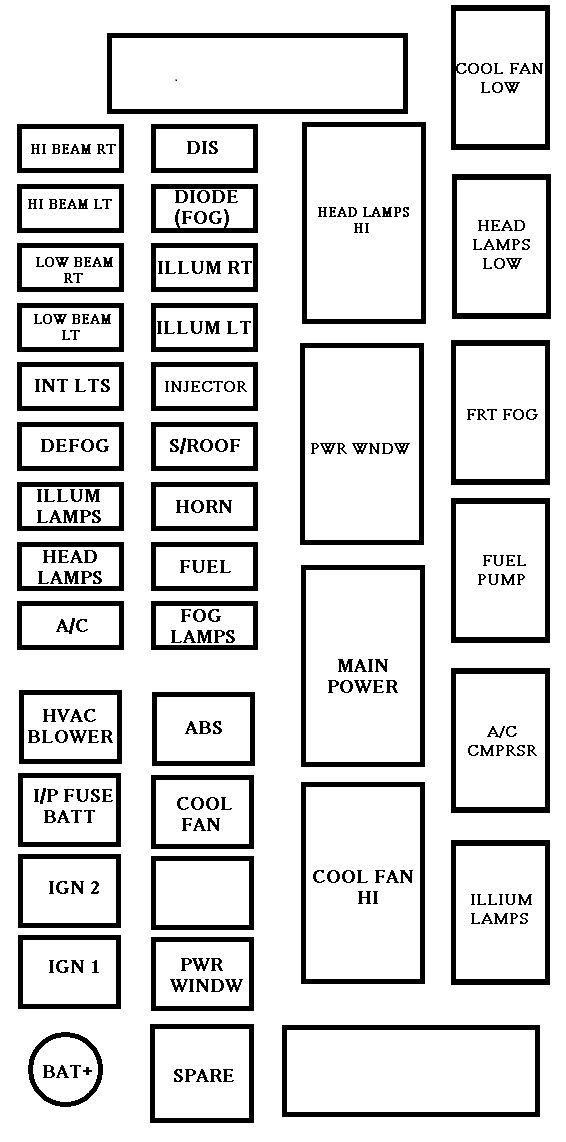

Engine compartment fuse block
The engine compartment fuse block is located on the driver side of the vehicle, near the battery.
Hatchback
| Fuses | Usage |
| HI BEAM RT | Passenger Side High Beam Headlamp |
| DIS | Direct Ignition System |
| HI BEAM LT | Driver Side High Beam Headlamp |
| DIODE (FOG) | Fog Lamp Diode |
| LOW BEAM RT | Passenger Side Low Beam Headlamp |
| ILLUM RT | Parking Lamp Right Side, Illumination Circuit |
| LOW BEAM LT | Driver Side Low Beam Headlamp |
| ILLUM LT | Driver Side Parking Lamp, License Plate Lamp |
| INT LTS | Room Lamp |
| INJECTOR | Injector |
| DEFOG | Defogger |
| S/ROOF | Sunroof |
| ILLUM LAMPS | Illumination Relay |
| HORN | Horn |
| HEAD LAMPS | Headlamps |
| FUEL | Fuel Pump |
| A/C | Air Conditioning Compressor |
| FOG LAMPS | Front Fog Lamp |
| HVAC BLOWER | Heating, Ventilation, Air Conditioning Blower |
| ABS | Antilock Brake System |
| I/P FUSE BATT. | Instrument Panel Fuse Box |
| COOL FAN | Radiator Fan |
| IGN 2 | Ignition 2 |
| BLANK | Blank |
| IGN 1 | Ignition 1 |
| PWR WNDW | Power Windows |
| SPARE | Spare |
| BLANK | Not used |
| COOL FAN LOW | Cooling Fan Low |
| HEAD LAMPS HI | High Beam Headlamp |
| HEAD LAMPS LOW | Low Beam Headlamp |
| PWR WNDW | Power Window |
| FRT FOG | Fog Lamp |
| MAIN POWER | Main Power |
| FUEL PUMP | Fuel Pump |
| A/C COMPRSR | Air Conditioning Compressor |
| COOL FAN HI | Cooling Fan High |
| ILLUM LAMPS | Illumination Lamps |
| BLANK | Not Used |

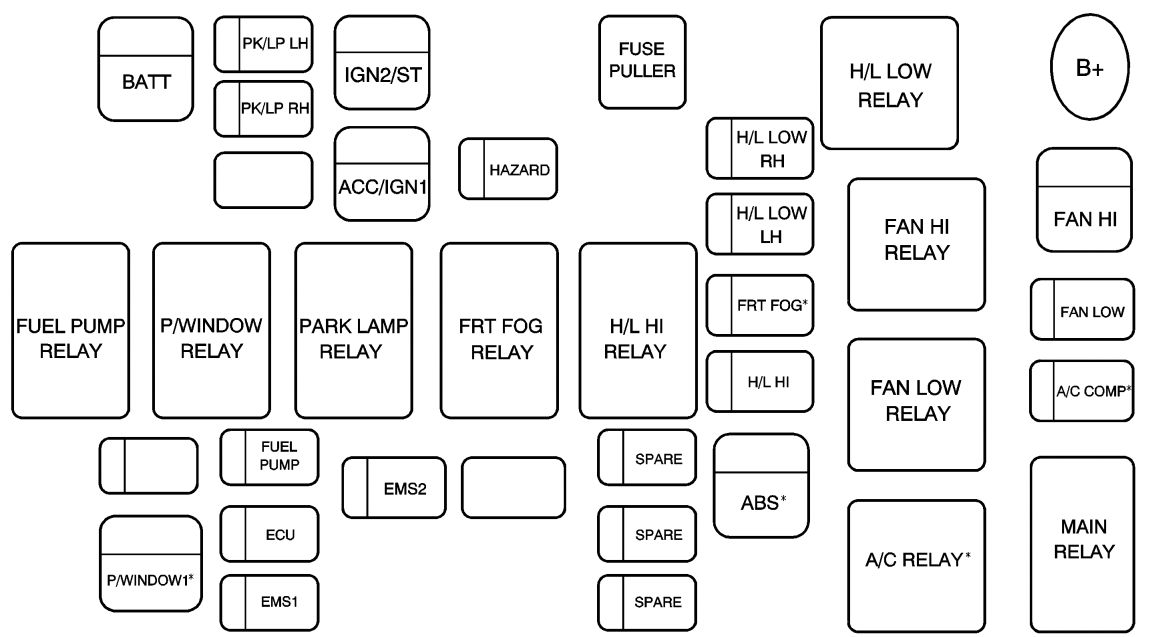

Sedan
| Fuses | Usage |
| BATT | Instrument Panel Fuse Bloc |
| PK/LP LH | Driver Side Parking Lamp, Taillamp |
| PK/LP RH | Passenger Side Parking Lamp, Taillamp |
| IGN2/ST | Ignition Switch |
| ACC/IGN1 | Ignition Switch |
| HAZARD | Hazard Lamps, Theft-Deterrent System |
| H/L LOW RH | Passenger Side Low-Beam Headlamp |
| FAN HI | Cooling Fan High Speed |
| H/L LOW LH | Driver Side Low-Beam Headlamp |
| FRT FOG | Front Fog Lamps (Option) |
| FAN LOW | Cooling Fan Low Speed |
| H/L HI | High-Beam Headlamps |
| A/C COMP | Air Conditioning Compressor (Option) |
| FUEL PUMP | Fuel Pump |
| SPARE | Spare |
| ABS | Antilock Brake System (Option) |
| EMS2 | LEGR Valve, HO2S, EVAP Canister Purge Solenoid, CMP Sensor |
| P/WINDOW1 | Power Window Switch (Option) |
| ECU | Engine Control Module, Transmission Control Module |
| SPARE | Spare |
| EMS1 | Engine Control Module, Injector, Cooling Fan, Air Conditioning Compressor |
| SPARE | Spare |
| H/L LOW RELAY | Low-Beam Headlamp Relay |
| FAN HI RELAY | Cooling Fan High Speed Relay |
| FUEL PUMP RELAY | Fuel Pump Relay |
| P/WINDOW RELAY | Power Window Relay |
| PARK LAMP RELAY | Parking Lamp Relay |
| FRT FOG RELAY | Front Fog Lamps Relay |
| H/L HI RELAY | High-Beam Headlamp Relay |
| FAN LOW RELAY | Cooling Fan Low Speed Relay |
| A/C RELAY | Air Conditioning Relay (Option) |
| MAIN RELAY | Main Relay |
| Misc. | Usage |
| FUSE PULLER | Fuse Puller |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
