Chevrolet Camaro (1994) – fuse box diagram

Year of production: 1994

Main Fuse Block

Chevrolet Camaro - wiring diagram - fuse box - main fuse block
Chevrolet Camaro – wiring diagram – fuse box – main fuse block
Fuses/Circuit Breaker Ampere rating [A] Usage
1 15

Air Bag: SIR Components

2 20

Backup Lights; Daytime Running Lights Module (Canada); Turn Flasher

3 25

HVAC Selector Switch(Heater/Air Conditioner); Rear Defogger

4 10

Powertrain Control Module; Instrument Cluster; PASS-Keys11 Decoder Modul

5 15

Powertrain Control Module; PASS-Keys11Decoder Module; Fuel Pump Relay

6 20

Brake Ligh/Cruise Release Switch, Hazard Flasher

7 15

Power Door Locks; Power Mirrors; Hatch Release

8 15

Audio Alarm Module; Base@ Relay; Courtesy Lights: Console Compartment, Glove Box, Dome, Rearview Mirror and Radio

9 10

Audio Alarm Module; Daytime Running Lights Module (Canada); Diagnostic Energy Reserve Module; Instrument Cluster; Remote Lock Control Module

10 20

Exterior Lighting

11 20 Cigarette Lighter; Horn Relay
12 30 Circuit Breaker

Power Seats: Rear Defogger

13 5

Brightness Control

14 25

Windshield Wiper/Washer

15 30 Circuit Breaker

Power Windows, Convertible Top Switch

16 3

Diagnostic Energy Reserve Module

17 15

Radio

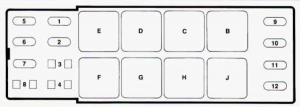

Underhood Electrical Center

Chevrolet Camaro - wiring diagram - fuse box - underhood electrical center
Chevrolet Camaro – wiring diagram – fuse box – underhood electrical center
Fuse Ampere rating [A] Usage
1 5

Electronic Brake Control Module

2 20 Fog lamps
3
4
5 5

Anti-Lock Brake System

6 10

Coolant Fan Relays;EVAP Canister Purge Solenoid; Exhaust Gas Recirculation; LowCoolant Relay; Reverse Lockout Solenoid

7 20

Air Injection Pump Assembly; Air Pump Relay

8
9 7,5

Fuel Injector

10 7,5

Fuel Injector

11 10

VIN Engine Code S: Camshaft Position Sensor; Crankshaft Position Sensor; Electronic Ignition Module (10 Amp.) VIN Engine Code P: Ignition Coil; Ignition Coil Driver

12 20

Air Conditioning Compressor Relay; Cruise Control Switches and Modul

Relays Usage
B

Air Conditioning Compresso

C

Anti-Lock Brake System

D

Primary Coolant Fan(Driver Side)

E

Air Pump

F

Secondary Coolant Fan (Passenger Side)

G

ASR

H

Fan Lamps

J
 WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
