Year of production: 1999, 2000, 2001, 2002

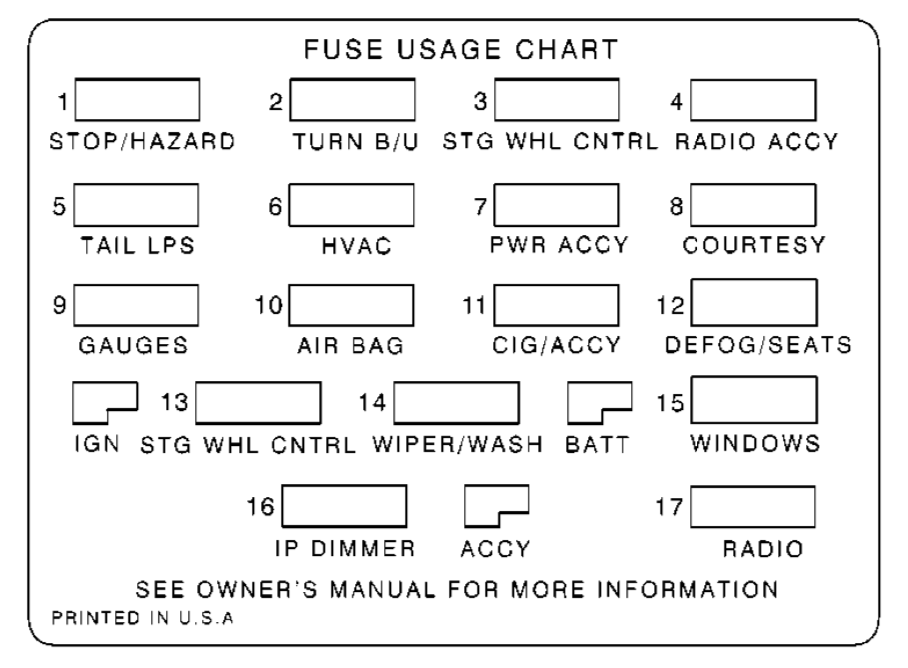

Main Fuse Block
| Fuse name | Usage |
| STOP/HAZARD |
Hazard Flasher, Brake Switch Assembly |
| TURN B/U |
Traction ControV2nd Gear Start Switch, Back-up Lamp Switch, Turn Flasher, Daytime Running Lamps (DRL) Module |
|
STG WHL CNTRL |
Steering Wheel Controls |
| RADIO ASSY |
Delco Audyssey Radio Amplifier Remote CD player (trunk) |
| TAIL LTS |
Daytime Running Lamps (DRL) Module, Headlamp Switch |
| HVAC |
HVAC Selector Switch, Rear Defogger Switch/Timer |
| PWR ACCY |
Park Lamp Relay,Hatch Release Relay, Power Mirror Switch, Radio, Shock Sensor, Instrument Cluster |
| COURTESY |
Body Control Module (BCM) |
| GAGES |
Body Control Module (BCM), Brake-Transmission Shift Interlock (BTSI), Instrument Cluster, Daytime Running Lamps (DRL) Module |
| AIR BAG |
Air Bag System |
| CIGAR/ACCY |
Cigarette Lighter, Data Link Connector (DLC) |
| DEFOG/SEATS |
Rear Defogger Switchmimer, Power Seat |
| IGN |
Aftermarket Use Only |
|
STG WHL CNTRL |
Steering Wheel Controls |
|
WIPER/WASH |
Wiper Motor Assembly, Wiper/Washer Switch |
|
BATT |
Aftermarket Use Only |
| WINDOWS |
Power Windows Switch (RH, LH), Express Down Module, Convertible Top Switch |
| I/P DIMMER |
Door Illumination Lamp (LH, RH), Headlamp Switch, Fog Lamp Switch, Instrument Cluster, HVAC Control Assembly, PRNDL Illumination Lamp, Ashtray Lamp, Radio, Rear Window Defogger Switch/Timer, Traction Control (ASR)/Second-Gear Start Switch, Convertible Top Switch |
| ACCY |
Aftermarket Use Only |
| RADIO |
Body Control Module (BCM), Radio, Amplifier, Steering Wheel Controls-Radio |
Underhood Electrical Center
The two underhood fuse and relay centers are located in the engine compartment.

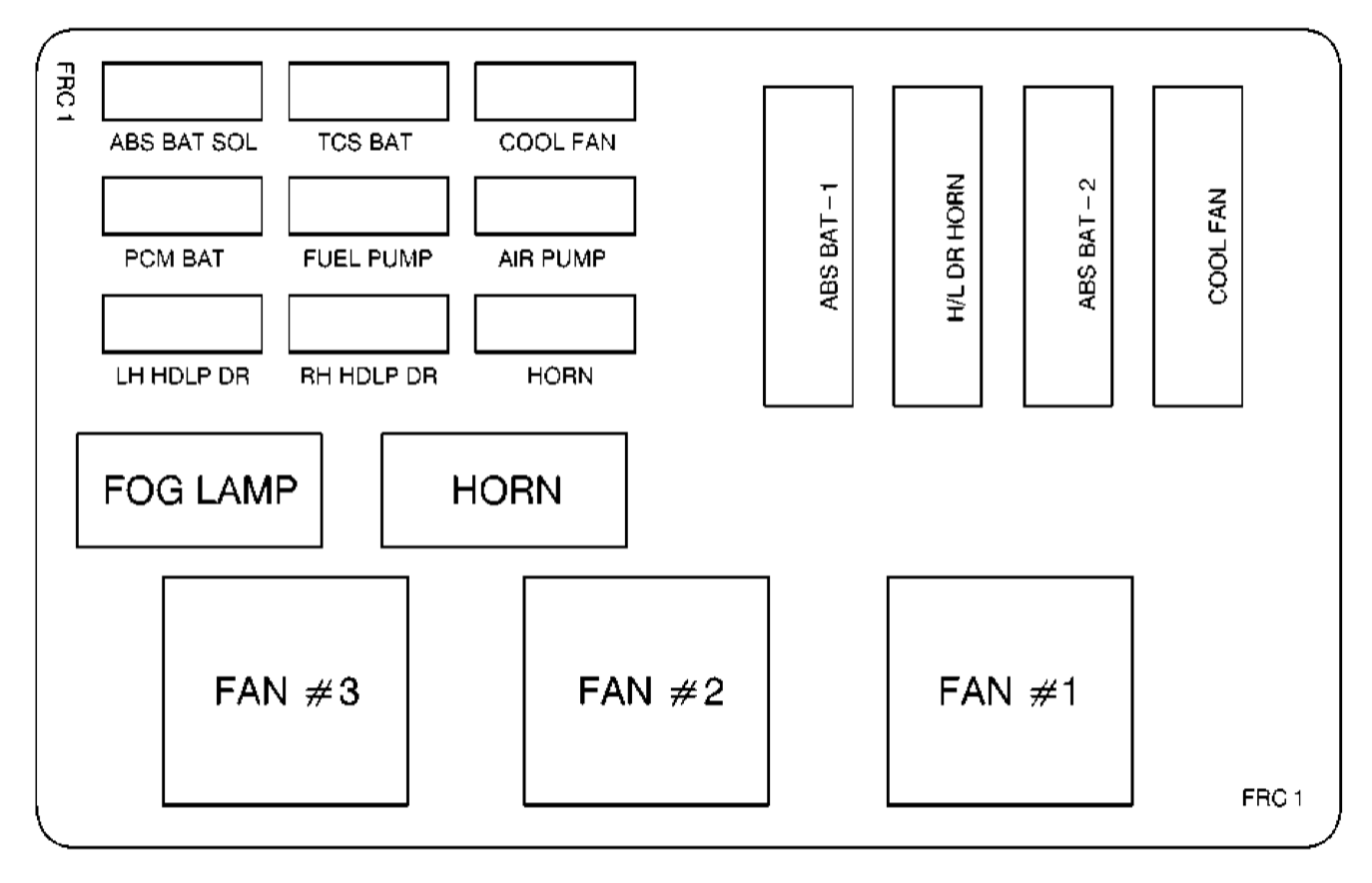

Fuse and Relay Center 1
| Fuse name | Usage |
| ABS BAT SOL |
Anti-Lock Brake System |
|
TCS BAT |
Traction Control System and ETC |
|
COOL FAN |
Cooling Fan Control |
|
PCM BAT |
Powertrain Control Module (PCM) |
|
FUEL PUMP |
Fuel Pump |
|
AIR PUMP |
Air Pump Relay and Bleed Valve |
|
LH HDLP |
Left Headlamp Door and Module |
|
RH HDLP |
Right Headlamp Door and Module |
|
HORN |
Horn Relay |
|
ABS BAT-1 |
Anti-Lock Brake System Module |
|
H/L DRHORN |
Horn and Headlamp Doors |
|
ABS BAT-2 |
Anti-Lock Brake and Traction Control System (ASR) |
|
COOL FAN |
Cooling Fan Relays |
| Relays | Usage |
|
FOG LAMP |
Fog lamps |
|
HORN |
Horn |
|
COOLING FAN#3 |
Cooling Fans |
|
COOLING FAN#2 |
Cooling Fans |
|
COOLING FAN#1 |
Cooling Fans |

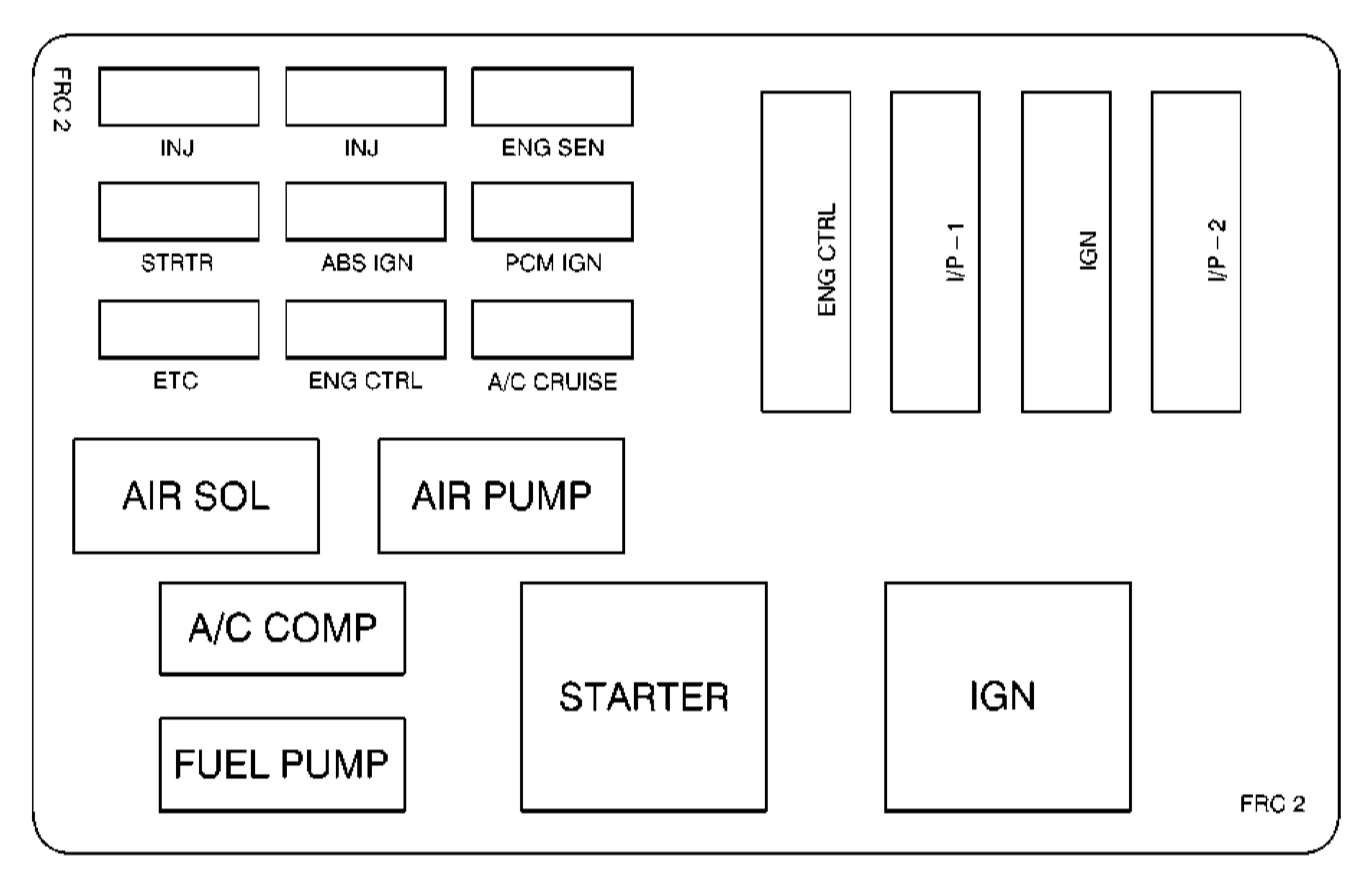

Fuse and Relay Center 2
| Fusename | Usage |
| INJ |
Fuel Injectors (Not Used for V6) (LH Injectors for V8 and Ignition Module) |
| INJ |
Fuel Injectors (All for V6) (LH Injectors for V8 and Ignition Module) |
| ENG SEN |
MassAirFlow,HeatedOxygen Sensor, Skip Shift Solenoid (V8 Only), Reverse Lockout Solenoid, Brake Switch |
| STRTR |
Powertrain Control Module (PCM) and Clutch Pedal Switch |
| ABS IGN |
Anti-Lock Brake System Module |
| PCM IGN |
Powertrain Control Module (PCM) |
| ETC |
Electronic Throttle Control (V6 Only) |
| ENG CTRL |
Ignition Module (V6 Only), Automatic Transmission and Charcoal Canister Purge Solenoid |
|
A/CCRUISE |
Air Conditioning Compressor Relay, Cruise Control Switches and Module |
| ENG CTRL |
EngineControls,FuelPump,PCM, A.I.R. and Cooling Fans |
| I/P-1 |
HVAC Blower Control and Relay |
| IGN |
Ignition Switch, Relay and Starter Enable Relay |
| I/P-2 |
Instrument Panel Fuse Center |
| Relays | Usage |
|
AIR SOL |
Air Solenoid |
|
AIR PUMP |
Air Pump |
|
A/C COMP |
Air Conditioning Compressor |
|
FUEL PUMP |
Fuel Pump |
|
STARTER |
Starter |
|
IGN |
Engine Controls, Cruise Control, Air Conditioning |
