Chevrolet Camaro (2010 – 2015) – fuse box diagram

7 January 2021 admin Camaro, Chevrolet 0

Chevrolet Camaro (2010 – 2015) – fuse box diagram

Year of production: 2010, 2011, 2012, 2013, 2014, 2015

Passenger compartment fuse box

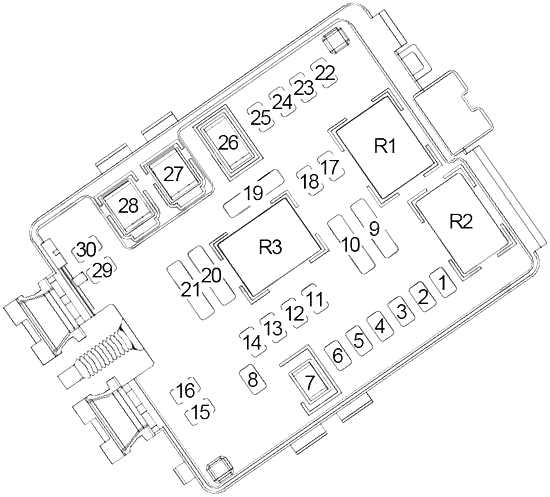

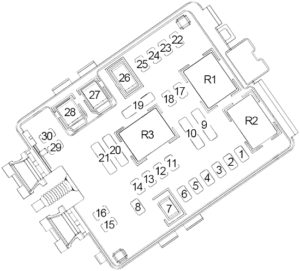

Chevrolet Camaro - fuse box diagram - passenger compartment
Chevrolet Camaro – fuse box diagram – passenger compartment
No.
 A
 Protected Component
1 5 Ignition Switch
2 7.5 Data Link Connector
3 10 Inflatable Restraint Sensing and Diagnostic Module
4 10 Instrument Cluster, Auxiliary Gauge Module
5 15 HVAC Control Module
6 20 Body Control Module
7 25 Circuit Breaker: Seat Adjuster Switch (Passenger)
8 30 Fuse: “13”, “14”
9 –  –
10 –  –
11 –  –
12 –  –
13 10 Multimedia Player Interface Module, Radio/HVAC Controls, Head-Up Display
14 7.5 Telematics Communication Interface Control Module, Mobile Telephone Control Module
15 30 Body Control Module
16 30 Body Control Module
17 20 Power Outlet – Center Console
18 20 Power Outlet – Center Console Compartment
19 2 Steering Wheel Controls Switch (Left/Right)
20 –  –
21 –  –
22 –  –
23 10 Rear Compartment Lid Release Relay
24 5 Passenger Presence Detection Module
25 20 Body Control Module
26 25 Circuit Breaker: Seat Adjuster Switch (Driver)
27 30 Body Control Module
28 40 ’12-’15: Blower Motor Control Module
29 25 Body Control Module
30 20 Body Control Module
Relay
R1 Power Outlet
R2  –
R3 Rear Compartment Lid Release

Engine Compartment Fuse Box

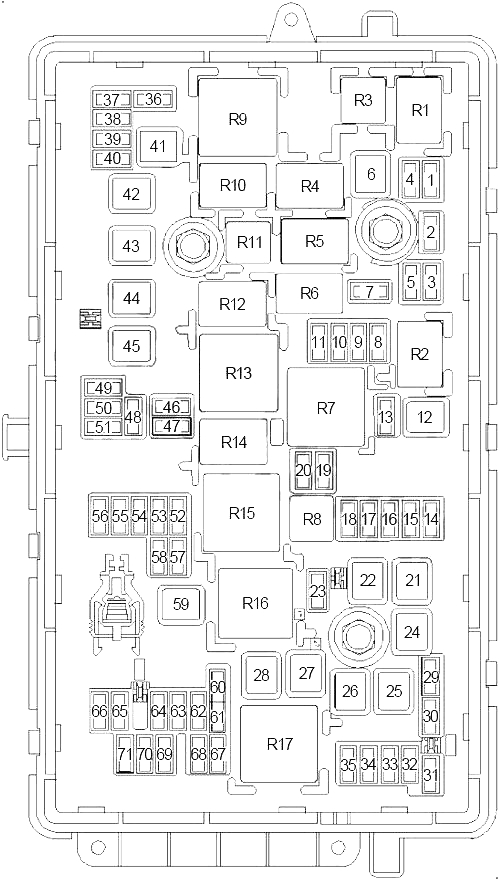

Chevrolet Camaro - fuse box diagram - engine compartment
Chevrolet Camaro – fuse box diagram – engine compartment
No.
 A
 Protected Component
1 10 A/C Compressor Clutch Relay
2 15 Transmission Control Module (Control Solenoid Valve Assembly)
3 10 Intercooler Coolant Pump
4 15 Headlamp Washer Pump Relay
5 15 Engine Control Module
6 30 Windshield Wiper Relay, Windshield Wiper Speed Control Relay
7 10 Camshaft Position (CMP) Actuator Solenoid Valve (3.6L), Evaporative Emission (EVAP) Purge Solenoid Valve (3.6L), Heated Oxygen Sensors
8 10 Heated Oxygen Sensors
9 20 3.6L: Engine Control Module
20 6.2L (SS): Fuel Injector: 2, 4, 6, 8, Ignition Coil: 2, 4, 6, 8
10 20 3.6L: Engine Control Module
20 6.2L (SS): Fuel Injector: 1, 3, 5, 7, Ignition Coil: 1, 3, 5, 7
11 10 Cooling Fan Speed Control Relay, Cooling Fan High Speed Relay, Cooling fan Low Speed Relay
12 30 Starter Relay
13 –  –
14 7.5 Fuel Pump Control Module, Mass Air Flow/Intake Air Temperature Sensor, Reverse Inhibit Solenoid Actuator, Skip Shift Solenoid Actuator, Valve Lifter Oil Manifold Assembly (6.2L (SS – L99)), Vehicle Speed Sensor
15 5 Instrument Cluster
16 5 HVAC Control Module
17 5 Inflatable Restraint Sensing and Diagnostic Module
18 10 Passenger Air Bag Disable Indicator, Inside Rearview Mirror
19 20 Transmission Control Module (Control Solenoid Valve Assembly)
20 15 Engine Control Module
21 10 ’13-: Charge Air Cooler Coolant Pump
22 20 Brake Booster Pump Motor Relay
23 –  –
24 –  –
25 30 Convertible: Power Window (Rear)
26 30 Power Window
27 40 Rear Window Defogger
28 –  –
29 –  –
30 –  –
31 7.5 Outside Rearview Mirror Switch
32 10 Evaporative Emission (EVAP) Vent Solenoid Valve
33 20 Body Control Module
34 25 Sunroof Control Module
35 25 Seat Heating Control Module
36 –  –
37 –  –
38 15 Windshield Washer Pump
39 5 Headlamp Leveling Control Module
40 25 ABS Valve – Electronic Brake Control Module (EBCM)
41 30 Cooling Fan High Speed Relay
42 40 ’10-’11: Blower Motor Control Module
43 40 ABS Pump – Electronic Brake Control Module (EBCM)
44 30 Cooling Fan Low Speed Relay
45 –  –
46 20 Headlamp Ballast (Left)
47 20 Headlamp Ballast (Right)
48 –  –
49 –  –
50 15 Front Fog Lamp
51 15 Horn
52 –  –
53 –  –
54 –  –
55 10 Right Headlamp (High Beam)
56 10 Left Headlamp (High Beam)
57 –  –
58 –  –
59 –  –
60 –  –
61 7.5 Door Mirror Defogger
62 –  –
63 –  –
64 –  –
65 –  –
66 7.5 Security Siren Relay
67 –  –
68 –  –
69 –  –
70 –  –
71 –  –
Relay
R1 Air Conditioning Compressor Clutch
R2 Starter (HC)
R3 Headlamp Washer Pump
R4 Front Wiper (On/Off)
R5 Front Wiper (Speed)
R6  –
R7 Engine Control Module (ECM)
R8 Brake Booster Pump Motor
R9 Cooling Fan High Speed (HC)
R10  –
R11  –
R12  –
R13 Cooling Fan Low Speed (HC)
R14 Cooling Fan Speed Control
R15 Headlamp (Low Beam)
R16 Rear Window Defogger
R17  –
Relay (Non-Serviceable)
R18 Front Fog Lamp
R19 Headlamp (High Beam)
R20 Horn
R21 Windshield Washer Pump
R22 Security Siren

Luggage Compartment Fuse Box

   ’10-’11:

Chevrolet Camaro - fuse box diagram - luggage compartment
Chevrolet Camaro – fuse box diagram – luggage compartment

   ’12-’15:

Chevrolet Camaro - fuse box diagram - luggage compartment
Chevrolet Camaro – fuse box diagram – luggage compartment
No.
 A
 Protected Component
1 7.5 Garage Door Opener, Parking Assist Control Module, Inside Rearview Mirror
2 30 Audio Amplifier
3 20 Radio
4 –  –
5 30 Convertible: Folding Top Control Module
6 10 Convertible: Folding Top Control Module
7 –  –
8 –  –
9 30 Electronic Suspension Control Module
10 10 Exhaust Flow Control Valve Relay Battery Voltage Supply
11 –  –
12 –  –
13 20 Engine Control Module
14 5 Body Control Module
15 20 Fuel Pump Control Module
16 –  –
Relay
R1  –
R2 Exhaust Valve Flow Control

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
