Year of production: 2011

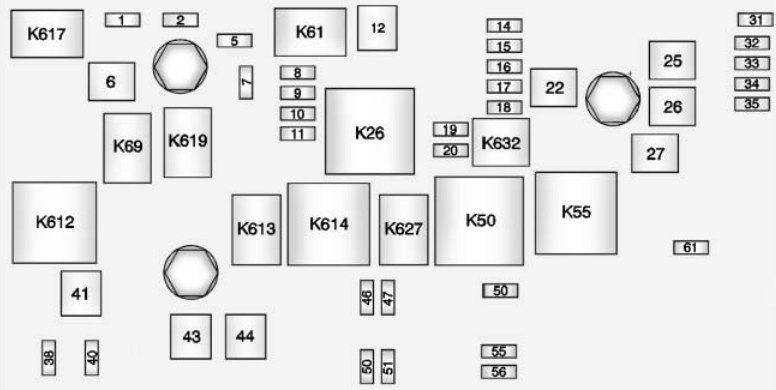

Engine Compartment Fuse Block
| J-Case Fuses | Usage |
| 6 | Wiper |
| 12 | Starter |
| 22 | Brake Vacuum Pump |
| 25 | Power Windows Rear |
| 26 | Power Windows Front |
| 27 | Rear Defog |
| 41 | Cooling Fan High |
| 43 | Antilock Brake System Pump |
| 44 | Cooling Fan Low |
| Mini Fuses | Usage |
| 1 | Air Conditioning Compressor Clutch |
| 2 | Transmission Control Module |
| 5 | Engine Control Module Main |
| 7 | Pre-Catalytic Converter Oxygen Sensor |
| 8 | Post-Catalytic Converter Oxygen Sensor |
| 9 | Fuel Injectors – Even |
| 10 | Fuel Injectors – Odd |
| 11 | Cooling Fan Relay |
| 14 | Manifold Air Flow/Chassis Control |
| 15 | Ignition |
| 16 | Run/Crank IP |
| 17 | Sensing Diagnostic Module/Ignition |
| 18 | Run/Crank Body |
| 19 | Transmission Control Module/Ignition |
| 20 | Engine Control Module/Ignition |
| 31 | Outside Rear View Mirror |
| 32 | Canister Vent Solenoid |
| 33 | Body Control Module #6 |
| 34 | Sunroof |
| 35 | Front Heated Seats |
| 38 | Washer Pump Front |
| 40 | Antilock Brake System Valves |
| 46 | HID Headlamp – Left Front |
| 47 | HID Headlamp – Right Front |
| 50 | Fog Lamps |
| 51 | Horn |
| 52 | Spare |
| 55 | High Beam Headlamp – Right Front |
| 56 | High Beam Headlamp – Left Front |
| 61 | Heated Mirror |
| Mini Relays | Usage |
| K26 | Powertrain |
| K50 | Run / Crank |
| K55 | Rear Defog |
| K612 | Cooling Fan High |
| K614 | Cooling Fan Control |
| Micro Relays | Usage |
| K61 | Starter |
| K69 | Wiper Control |
| K613 | Cooling Fan Low |
| K617 | Air Conditioning Compressor Clutch |
| K619 | Wiper Speed |
| K627 | High Intensity Discharge Headlamps |
| K632 | Brake Vacuum Pump |

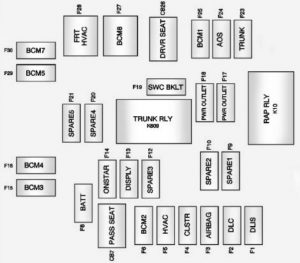

Instrument Panel Fuse Block
The instrument panel fuse block is located on the end of the instrument panel, on the driver side of the vehicle.
| Fuses | Usage |
| F1 | Discrete Logic Ignition Switch |
| F2 | Diagnostic Link Connector |
| F3 | Airbag |
| F4 | Cluster |
| F5 | Heating Ventilation Air Conditioning Controller |
| F6 | Body Control Module |
| F8 | Battery |
| F9 | Spare |
| F10 | Spare |
| F12 | Spare |
| F13 | Display |
| F14 | OnStar® Universal Hands‐Free Phone (If Equipped) |
| F15 | Body Control Module 3 |
| F16 | Body Control Module 4 |
| F17 | Power Outlet 1 |
| F18 | Power Outlet 2 |
| F19 | Steering Wheel Controls Backlight |
| F20 | Spare |
| F21 | Spare |
| F23 | Trunk |
| F24 | Automatic Occupant Sensing |
| F25 | Body Control Module 1 |
| F27 | Body Control Module 8 |
| F28 | Front Heater, Ventilation, and Air Conditioning |
| F29 | Body Control Module 5 |
| F30 | Body Control Module 7 |
| Circuit Breaker | Usage |
| CB7 | Passenger Seat |
| CB26 | Driver Seat |
| Relays | Usage |
| K10 | Retained Accessory Power |
| K609 | Trunk |

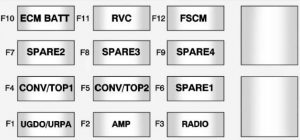

Rear Compartment Fuse Block
The rear compartment fuse block is located on the right side of the trunk behind a cover.
| Fuses | Usage |
| F1 | Universal Garage Door Opener/Ultrasonic Reverse Parking Aid |
| F2 | Amplifier |
| F3 | Radio |
| F4 | Convertible Top 1 |
| F5 | Convertible Top 2 |
| F6 | Spare 1 |
| F7 | Spare 2 |
| F8 | Spare 3 |
| F9 | Spare 4 |
| F10 | Engine Control Module/Battery |
| F11 | Regulated Voltage Control |
| F12 | Fuel System Control Module |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
