Chevrolet Cavalier (1983 – 1990) – fuse box diagram

Year of production: 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990

Fuse box diagram

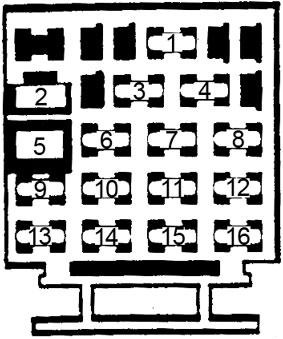

Chevrolet Cavalier – fuse box diagram
Chevrolet Cavalier – fuse box diagram
No.
 A
 Circuit Protected
1 3 Crank Sensor
2 35 Power Accessories
3 10 Radio, Antenna, Cruise Control
4 5 Instrument Lights
5 35 Power Windows
6 20 Courtesy Lights, Cigarette Lighter
7 25 Wiper
8 20 Gauges, Chimes, Indicators, Defogger, Trunk Release
9 25 Ventilation System
10 20 Taillights
11 20 Foglights
12 20 Turn Signals, Back-Up Lights
13 20 Choke Heater, Coolant Fan, Alternator
14 20 Stoplights, Hazard Flashers
15 10 ECM, Fuel Pump, Oil Pressure Light
16 15 Computer Command Control Module

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
