Chevrolet Cavalier (1990 – 1994) – fuse box diagram
Year of production: 1990, 1991, 1992, 1993, 1994

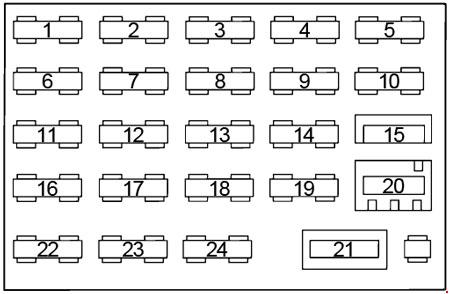

Fuse box diagram
| No. |
A |
Circuit Protected |
| 1 | 5 | Instrument Lights |
| 2 | 10 | ECM, Multiport Fuel Injection (’93-’94) |
| 3 | – | ’90-’93: – |
| 10 | ’94: Automatic Door Unlock | |
| 4 | 15 | Cigarette Lighter, Glove Box Light (’93), Interior Lights (’94) |
| 5 | – | – |
| 6 | 10 | Radio/Audio Systems |
| 7 | 10 | Gauges, Audio Warning, Cluster Telltales (’90-’93), TCC (’90-’93), Rear Defogger Relay, Brake/Transaxle Shift Interlock (’93-’94), Multi-Port Fuel Injection (’93-’94), Instrument Panel (’94) |
| 8 | – | – |
| 9 | 15 | Parking Lights, Turn Lights |
| 10 | 25 | ’90-’93: HVAC, Heater & A/C Power, ABS, Daytime Running Lights (’93) |
| 25 | ’94: ABS, Coolant Fan, HVAC, Daytime Running Lights, Starter & Charging System | |
| 11 | 25 | Wiper/Washer |
| 12 | 10 | Fuel Pump, Injectors |
| 13 | 10 | Radio/Audio Systems, Clock |
| 14 | 20 | ’90-’93: Interior Lights, Glove Box Light, Horn, Power Locks, Audible Warning (’93), Remote Liftgate Release (’93), Check Oil Light (’93) |
| 15 | ’94: Audible Warning, Automatic Door Locks, Convertible Top, Horn, Instrument Panel, Interior Lights, Tailgate Release | |
| 15 | 30 | Circuit breaker: Power Window, Convertible Top |
| 16 | 10 | Cruise Control |
| 17 | 15 | Back-Up Lights, Turn Signal (Exterior Lights) |
| 18 | 20 | Stoplights, Hazard Flashers, Brake Transaxle Shift Interlock (BTSI (’94)) |
| 19 | 20 | Flash-To-Pass (Headlights) |
| 20 | 30 | Circuit breaker: Automatic Door Locks, Rear Defogger |
| 21 | 20 | Circuit breaker: Headlight, Daytime Running Lights (’94) |
| 22 | – | – |
| 23 | – | – |
| 24 | – | – |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
