Year of production: 2000
Instrument panel
The fuse panel is located at the driver’s side of the instrument panel.
instrument panel
| Fuse | Circuitry |
| TURN-B/L | Turn Signals, Back-Up Lamps |
| ERLS | Engine Relays |
| BCM/CLU | Body Control Module, Instrument Panel Cluster |
| PCM | Powertrain Control Module |
| IGN MDL | Ignition Module |
| F/P-INJ | Fuel Pump, Fuel Injectors |
| AIR BG | Air Bag |
| CRUISE | Cruise Control Switch |
| ABS | Anti-Lock Brake (Ignition) |
| Blank | Not Used |
| RFA BATT | Remote Keyless Entry System |
| MIRROR | Power Mirror |
| LT HDLP | Left Headlamp |
| RDO/INTLP | Radio, Interior Lamps |
| RT HDLP | Right Headlamp |
| CLSTR | Instrument Panel Cluster |
| EXT LP | Exterior Lamps |
| CIG | Cigarette Lighter, Diagnostic Link Connector |
| FOG | Fog Lamps |
| HORN | Horn |
| Blank | Not Used |
| Blank | Not Used |
| STOP/HZD | Stop Lamps, Hazard Lamps |
| Blank | Not Used |
| Blank | Not Used |
| RR DEFOG | Rear Window Defogger |
| PWR ACC | Power Door Locks, Convertible Top Switch |
| Blank | Not Used |
| Blank | Not Used |
| Blank | Not Used |
| O2 HTR | Oxygen Sensor Heater |
| HVAC | Climate Control System |
| WIPER | Windshield Wiper |
| BCM | Body Control Module |
| Blank | Not Used |
| PWR WDO | Power Windows, Sunroof, Convertible Top (Circuit Breaker) |
| DRL | Daytime Running Lamps (Relay) |

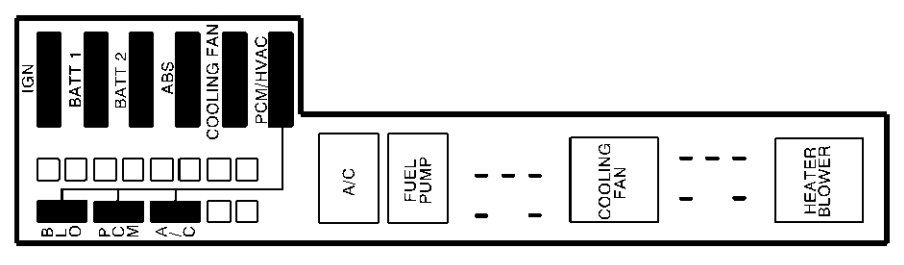

Engine Compartment Fuse Block
The engine compartment fuse block is located on the driver’s side of the engine compartment.
| Fuse | Circuitry |
| IGN | Ignition Switch Circuits |
| BATT 1 | Power ACC/Stoplamp Circuits |
| BATT 2 | Lighting Circuits |
| ABS | Anti-Lock Brake System |
| COOLING FAN | Engine Cooling Fan |
| PCM/HVAC | Powertrain Control Module, Heater and A/C Blower |
| BLO | Heater and A/C Blower |
| PCM | Powertrain Control Module |
| A/C | A/C Compressor |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
