Chevrolet Cobalt (2005 – 2010) – fuse box diagram
Year of production: 2005, 2006, 2007, 2008, 2009, 2010

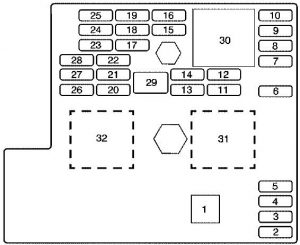

Floor console fuse block
The floor console fuse block is located on the passenger side of the floor console behind the forward panel.
| Fuses | Usage |
| 1 | Fuse Puller |
| 2 | Empty |
| 3 | Empty |
| 4 | Empty |
| 5 | Empty |
| 6 | Amplifier |
| 7 | Cluster |
| 8 | Ignition Switch, PASS-Key® III+ |
| 9 | Stoplamp |
| 10 | Heating, Ventilation, Air Conditioning, PASS-Key® III+ |
| 11 | Empty |
| 12 | Spare |
| 13 | Airbag |
| 14 | Spare |
| 15 | Windshield Wiper |
| 16 | Climate Control System, Ignition |
| 17 | Window Retained Accessory Power |
| 18 | Empty |
| 19 | Electric Power Steering, Steering Wheel Control |
| 20 | Sunroof |
| 21 | Spare |
| 22 | Empty |
| 23 | Audio System |
| 24 | XM Radio™, OnStar™ |
| 25 | Engine Control Module, Transmission Control Module |
| 26 | Door Locks |
| 27 | Interior Lights |
| 28 | Steering Wheel Control Illumination |
| 29 | Power Windows |
| 30 | Climate Control System |
| 31 | Empty |
| 32 | Retained Accessory Power (RAP) |

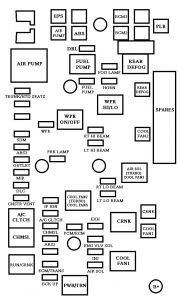

Engine compartment fuse block
The engine compartment fuse block is located on the driver side of the vehicle.
| Fuses | Usage |
| SPARES | Spares |
| Blank | Blank |
| Blank | Blank |
| REAR DEFOG | Rear Defogger |
| COOL FAN2 | Engine Cooling Fan High Speed |
| CRNK | Starter |
| COOL FAN 1 | Engine Cooling Fan Low Speed |
| BCM3 | Body Control Module 3 |
| BCM2 | Body Control Module 2 |
| FOG LAMP | Fog Lamps |
| HORN | Horn |
| RT HI BEAM | Passenger Side High Beam Lamp |
| LT HI BEAM | Driver Side High Beam Lamp |
| RT LO BEAM | Passenger Side Low Beam Lamp |
| LT LO BEAM | Driver Side Low Beam Lamp |
| DRL | Daytime Running Lamps |
| FUEL PUMP | Fuel Pump |
| EXH | Exhaust Emissions |
| ENG VLV SOL | Engine Valve Solenoid |
| INJ | Injectors |
| AIR SOL | Air Solenoid |
| Blank | Blank |
| PCM/ECM | Powertrain Control Module/Engine Control Module |
| EPS | Electric Power Steering |
| AIR PUMP | AIR Pump |
| PRK LAMP | Parking Lamps |
| WPR | Windshield Wiper |
| IP IGN | Ignition |
| A/C CLTCH | Air Conditioning Clutch |
| CHMSL | Center High Mount Stop Lamp |
| ABS2 | Antilock Brake System 2 |
| Blank | Blank |
| ECM/TRANS | Engine Control Module, Transmission |
| BCK UP | Back-Up Lamps |
| TRUNK/HTD SEATS | Trunk, Heated Seats |
| Blank | Blank |
| Blank | Blank |
| SDM | Sensing Diagnostic Module (Airbags) |
| ABS3 | Antilock Brake System 3 |
| OUTLET | Auxiliary Power Outlet |
| MIR | Mirrors |
| DLC | Data Link Connector |
| CNSTR VENT | Canister Vent |
| Relays | Usage |
| REAR DEFOG | Rear Defogger |
| AIR SOL (TURBO: COOL FAN 2) | Air Solenoid (L61)/Engine Cooling Fan 2 (LNF) |
| WPR HI/LO | Windshield Wiper High/Low Speed |
| CRNK | Starter |
| COOL FAN 2 (TURBO: COOL FANS) | Engine Cooling Fan (L61, LE5)/ Engine Cooling Fans (LNF) |
| FUEL PUMP | Fuel Pump |
| WPR ON/OFF | Windshield Wiper On/Off |
| COOL FAN1 | Engine Cooling Fans |
| PWR/TRN | Powertrain |
| AIR PUMP | AIR Pump |
| A/C CLTCH | Air Conditioning Clutch |
| CHMSL | Center High Mount Stop Lamp |
| RUN/CRNK | Run, Crank |
| Misc. | Usage |
| PLR | Fuse Puller |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
