Chevrolet Cobalt (2005 – 2010) – fuse box diagram

Chevrolet Cobalt (2005 – 2010) – fuse box diagram

Year of production: 2005, 2006, 2007, 2008, 2009, 2010

Passenger Compartment Fuse Box

The floor console fuse block is located on the passenger side of the floor console behind the forward panel. The panel has three clips. Pull the panel to disconnect the three clips, and access the fuses.

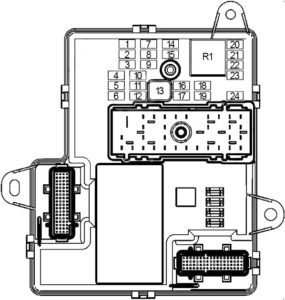

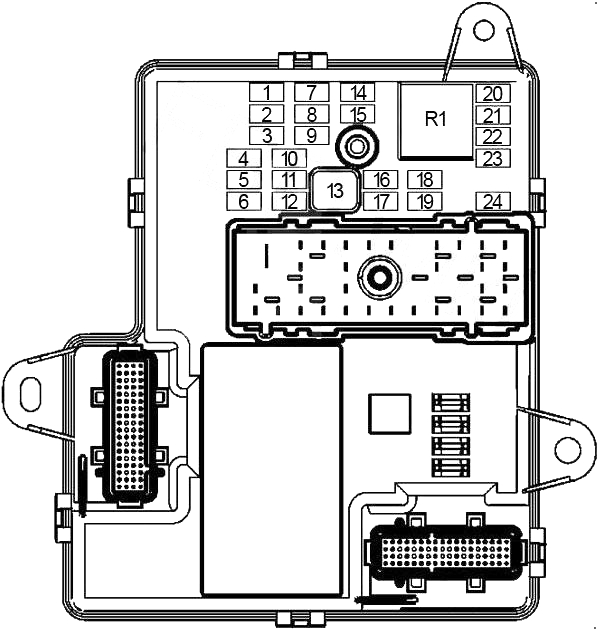

Chevrolet Cobalt - fuse box diagram - passenger compartment
Chevrolet Cobalt – fuse box diagram – passenger compartment
No.
A
Protected Component
1 10 Engine Control Module (ECM), Transmission Control Module (TCM), Powertrain Control Module (PCM (2.2L – LSJ))
2 10 ’08-’10: Vehicle Communication Interface Module (VCIM), Digital Radio Receiver (DRR)
10 ’05-’07: Inflatable Restraint Sensing and Diagnostic Module (SDM), Body Control Module (BCM)
3 15 ’06-’10: Radio, Remote Control Door Lock Receiver (RCDLR)
10 ’05: Radio, Remote Control Door Lock Receiver (RCDLR)
4 2 Steering Wheel Controls
5 10 Interior Lamps Relay
6 15 Power Door Lock (DOOR LOCK PCB Relay, DOOR UNLOCK PCB Relay, DR DOOR UNLOCK PCB Relay, INT LIGHT PCB Relay)
7 2 Electronic Power Steering Control Module (PSCM), Steering Wheel Controls (Left)
8  –
9 2  –
10  –
11 20  –
12 15 Sunroof Switch, Inside Rearview Mirror
13 30 Driver Window Switch, Front Passenger Window Switch
14 10 Clutch Pedal Start Switch (M/T), Instrument Panel Cluster (IPC), Heated Seat Switches, HVAC Control Module, Inflatable Restraint Passenger Air Bag On/Off Indicator, Stop Lamp/TCC Switch (’05-’07)
15 10 Windshield Wiper/Washer Switch, Turbocharger Boost Gauge (2.0L Turbo – LNF)
16 10  –
17 10 Inflatable Restraint Front Passenger Presence System (PPS) Module, Inflatable Restraint Sensing and Diagnostic Module (SDM)
18 20  –
19  –
20 10 HVAC Control Module, Theft Deterrent Control Module
21 10 ’05-’07: Stop Lamp Switch
22 2 Ignition Switch
23 10 Instrument Panel Cluster (IPC)
24 20 Audio Amplifier
Relay
R1 Blower Motor
Relay (Non-Serviceable)
R2 Power Door Lock (Lock)
R3 Power Door Lock (Unlock)
R4 Driver Door Lock Actuator (Unlock)
R5 Interior Lamps

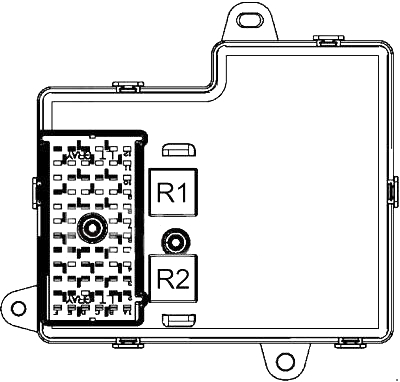

Chevrolet Cobalt - fuse box diagram - passenger compartment
Chevrolet Cobalt – fuse box diagram – passenger compartment
No.
Relay
R1 Accessory (Power Window, Sunroof, Heated Seat, Windshield Wiper/Washer Switch)
R2 Run (Heating Ventilation Air Conditioning (HVAC))

Engine Compartment Fuse Box

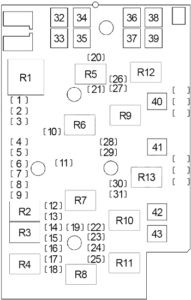

Chevrolet Cobalt - fuse box diagram - engine compartment
Chevrolet Cobalt – fuse box diagram – engine compartment
No.
A
Protected Component
1 20 TRUNK PCB Relay, Driver and Passenger Heated Seat Modules
2  –
3  –
4 10 ’08-’10: Inflatable Restraint Sensing and Diagnostic Module (SDM), Body Control Module (BCM)
10 ’05-’07: Vehicle Communication Interface Module (VCIM), Digital Radio Receiver
5 20 ’08-’10: Electronic Brake Control Module (EBCM)
6 20 ’08-’10: Cigar Lighter, Auxiliary Power Outlet, Data Link Connector (DLC (’05-))
15 ’05-’07: Cigar Lighter, Data Link Connector (DLC)
7 5 Outside Rearview Mirror Switch
8 15 ’08-’10: Data Link Connector (DLC)
20 ’05-’07: Heated Seat Module
9 10 Evaporative Emission (EVAP) Canister Vent Solenoid
10 25 Windshield Wiper (Wiper On/Off Relay)
11 10 ’08-’10: Body Control Module (BCM), License Lamps, Marker Lamps, Park/Turn/DRL Signal Lamps, Tail/Stop and Turn Signal Lamps
15 ’05-’07: Body Control Module (BCM), License Lamps, Marker Lamps, Park/Turn Signal Lamps, Tail/Stop and Turn Signal Lamps Lamp
12 20 Body Control Module (BCM)
13 10 A/C Compressor Clutch
14 10 Engine Control Module (ECM), Transmission Control Module (TCM), Center High Mounted Stop Lamp (CHMSL)
15 2.0L (LJS): After Cooling Pump
15 10 Electronic Brake Control Module (EBCM)
16  –
17 15 Engine Control Module (ECM), Transmission Control Module (TCM), Supercharger Boost Control Solenoid (2.0L – LSJ), Powertrain Control Module (PCM) (2.0L – LSJ)
18 10 Back Up Lamp Switch (M/T), Park Neutral Position (PNP) Switch (A/T)
19 20 Engine Control Module (ECM)
20 10 ’08-’10: Daytime Runnig Light
21 15 Fuel Pump and Sender Assembly
22 10 Evaporative Emission (EVAP) Canister Purge Solenoid, Heated Oxygen Sensors (HO2S), Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor, Clutch Pedal Position (CPP) Switch
23 10 2.0L Turbo (LNF): Turbocharger Wastegate Solenoid, Turbocharger Bypass Valve Solenoid, Camshaft Position (CMP) Actuator Solenoid – Intake, Camshaft Position (CMP) Actuator Solenoid – Exhaust
24 15 ’08-’10: Fuel Injectors, Ignition Coil/Modules
10 ’05-’07: Fuel Injectors, Ignition Coil/Modules
25 10 ’06-’10: Secondary Air Injection (AIR) Solenoid
26 15 Front Fog Lamps
27 10 Horn
28 10 Right Headlamp (High Beam)
29 10 Left Headlamp (High Beam)
30 10 Right Headlamp (Low Beam)
31 10 Left Headlamp (Low Beam)
32 60 Electronic Power Steering (EPS) Control Module (PSCM)
33 40 ’06-’10: Secondary Air Injection (AIR) Pump Relay
34  –
35 40 ’08-’10: Electronic Brake Control Module (EBCM)
50 ’05-’07: Electronic Brake Control Module (EBCM)
36 30 Blower Motor Relay
37 40 Fuse: “20”, “21”, “22”, 23″, “24”
38  –
39  –
40 40 Rear Window Defogger Relay
41 30 Cooling Fan Relay (No.2)
42 30 Starter Relay
43 30 Cooling Fan Relay (No.1)
Relay
R1 Secondary Air Injection (AIR) Pump
R2 A/C Compressor Clutch
R3 Engine Control Module (ECM), Transmission Control Module (TCM), Center High Mounted Stop Lamp (CHMSL)
2.0L (LJS): After Cooling Pump
R4 Ignition (RUN/CRNK)
R5 Fuel Pump
R6 Wiper (On/Off)
R7 Cooling Fan (No.2)
Cooling Fans
R8 Engine Control Module (ECM)
R9 Wiper (High/Low Speed)
R10 Starter
R11 Cooling Fan (No.1)
R12 Rear Window Defogger
R13 Secondary Air Injection (AIR) Solenoid
Cooling Fan (No.2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
