Year of production: 1993

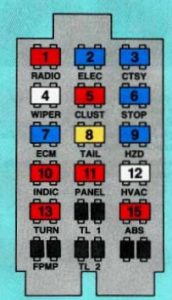

Glove Box Fuse Block
| Fuse | Ampere rating [A] | Circuit protected |
| 1 | 10 | Radio & Clock |
| 2 | 15 | Radio & Clock; Passive Restraint Lockout; Delco Bose Amplifier |
| 3 | 15 | Door Lock; Courtesy, Glove Box, Underhood, Trunk, Modular Dim Lights; Lighted Visor Mirror |
| 4 | 25 | Windshield Wiper & Washer |
| 5 | 10 | Temp Door Motor; HVAC & Rear Defogger; DRL Module (Canada) |
| 6 | 15 | Brake Lights; ABS Control Modul |
| 7 | 15 | ECM |
| 8 | 20 | Taillights; Radio & Clock HVAC; Chime Module; DRL Module (Canada) |
| 9 | 15 | Hazard Warning Flashe |
| 10 | 10 | Rear Defogger Timer Relay; Instrument Cluster; Chime Module; Cruise Control; DIU Module (Canada); ABS Lamp Driver |
| 11 | 5 | Instrument Panel and Switch Lights |
| 12 | 25 | HVAC |
| 13 | 10 | Turn Signals/Flasher |
| 14 | — | — |
| 15 | 10 | ABS Control Module |
| 16 | — | — |
| 17 | — | — |
| 18 | — | — |

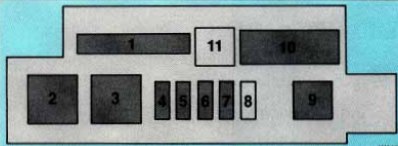

Component Center
component center
| Fuse | Ampere rating [A] | Usage |
| 1 | Defogger Timer Relay | |
| 2 | Air Conditioner Blower Relay (HI) | |
| 3 | Air Conditioner Blower Relay (LO) | |
| 4 | 30 | Rear Defogger and HVAC Circuit Breaker |
| 5 | 30 | Power Door Lock Circuit Breaker |
| 6 | 30 | Power Window Circuit Breaker |
| 7 | 20 | Headlight Circuit Breaker |
| 8 | — | — |
| 9 | Hazard Flasher | |
| 10 | Chime Module | |
| 11 | — | — |

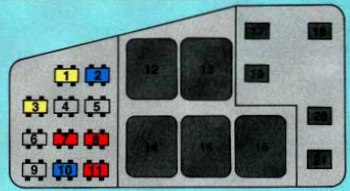

Passenger Side Underhood Electrical Center
| Fuse | Ampere rating [A] | Usage |
| 1 | 20 | AIR Pump (3.4L Manual) |
| 2 | 15 | Trunk Release, Back-up Lights (Auto) |
| 3 | 20 | ECM; Fuel Pump |
| 4 | — | — |
| 5 | — | — |
| 6 | — | — |
| 7 | 10 | Direct Ignition System |
| 8 | 10 | Fuel Injectors |
| 9 | — | — |
| 10 | 15 | A/C, SOL EGR (2.2L), Secondary Cooling Fan, Generator, Digital EGR, Purge Canister, Back-up Lights (3.4L Manual) |
| 11 | 10 | TCC; AIR Pump (3.4L Manual) ; Primary Cooling Fan (3.1 L) |
| Relay | Ampere rating [A] | Usage |
| 12 | Fuel Pump | |
| 13 | AIR Pump (3.4L) | |
| 14 | Secondary Cooling Fan | |
| 15 | Primary Cooling Fan | |
| 16 | A/C Clutch |
| Fusible | Ampere rating [A] | Usage |
| 17 | 60 | Starter Solenoid |
| 18 | 30 | Cooling Fan (2.2L, 3.1L) |
| 60 | Cooling Fan (3.4L) | |
| 19 | 60 | Blower Motor |
| 20 | 60 | Cooling Fan |
| 21 | 30 | Fuse Block |

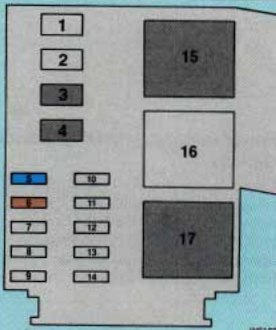

Driver Side Underhood EIectrical Center
| Fuse | Ampere rating [A] | Usage |
| 1 | — | — |
| 2 | — | — |
| 3 | 60 | ABS Controller |
| 4 | 50 | Exterior Lights |
| 5 | 15 | Horn |
| 6 | 5 | ABS |
| 7 | — | — |
| 8 | — | — |
| 9 | — | — |
| 10 | — | — |
| 11 | — | — |
| 12 | — | — |
| 13 | — | — |
| 14 | — | — |
| Relay | Usage |
| 15 | Horns |
| 16 | — |
| 17 | ABS |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
