Chevrolet Malibu (2006) – fuse box diagram

Chevrolet Malibu (2006) – fuse box diagram

Year of production: 2006

Body Control Module (BCM)

The instrument panel fuse block is located at on the lower front side of the console, on the passenger side of the vehicle.

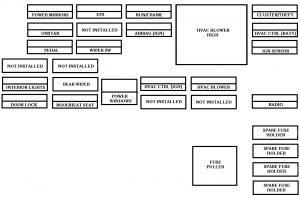

Chevrolet Malibu – wiring diagram – fuse box diagram – instrument panel
Device Ampere rating [A] Usage
AIRBAG (BATT) 10 Infiatable Restraint Sensing and Diagnostic Module (SDM)
AIRBAG (IGN) 10 Infiatable Restraint Sensing and Diagnostic Module (SDM)
CLUSTER/THEFT 10 Instrument Panel Cluster (IPC), Theft Deterrent Control Module
DOOR LOCK 15 Body Control Module (BCM) Logic
EPS 2 Power Steerinf Control Module
HVAC BLOWER 20 HVAC Control Module (C60)
HVAC BLOWER HIGH Relay Blower Motor (C60)
HVAC CTRL (BATT) 10 Data Linc Connector (DLC) and HVAC Control Module
HVAC CTRL (IGN) 10 HVAC Control Module
IGN SENSOR 2 Ignition Switch
INTERIOR LIGHTS 10 Body Control Module (BCM) Logic
ONSTAR 10 Vehicle Communication Interface Module (VCIM)(UE1)
PEDAL 10 Adjustable Pedals Module (JF4) and Adjustable Pedals Posiution Switch (JF4)
POWER MIRRORS 2 Outside Rearview Mirror Switch
POWER WINDOWS 30 Window Switch – Driver and Window Switch – Passenger
RADIO 10 Radio
ROOF/HEAT SEAT 20 Heated Seats Control Module – Driver (KA1), Heated Seat Control Module – Passenger (KA1), Heated Seat Switch – Driver (KA1), Heated Seat Switch – Passenger (KA1), Inside Rearview Mirror (DD8), and Sunroof Control Module (CF5)
RUN/CRANK 2 A/T Shift Lock Control Assembly, Cruise Control On/Off Switch
WIPER SW 10 Windshield Wiper/Washer Switch



Engine Compartment Fuse Block

The engine compartment fuse block is located on the driver’s side of the vehicle, near the battery.

Chevrolet Malibu - wiring diagram - fuse box diagram - engine compartment
Chevrolet Malibu – wiring diagram – fuse box diagram – engine compartment
Fuses Device Ampere rating [A] Usage
1 A/C CLU 10 A/C CLUTCH Relay 34
2 ETC 15 Powertrain Control Module (PCM)(L61), Electronic Throttle Control (LX9)
3 IGN1 15 Ignition Control  Module (ICM), Park Neutral Position Switch
4 TRANS 10 1-2 Shift Solenoid (1 – 2 SB) Valve, 2 – 3 Shift Solenoid (2 – 3 SS) Valve, Torque Convertor Clutch Pulse Width Modulation (TCC PWM) Soleniod Valve
5 INJ 10 Fuel Injectors
6 EMISSION 1 10 Evaportive Emission (EVAP) Canister Purge Solenoid, Heated Oxygen (HO2S) Sensors, Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor
7 LH LOW 10 Headlamp Low Beam – Left
8 HORN 15 Horn Relay 37
9 RH LOW 10 Headlamp Low Beam – Right
10 FRT FOG LP 10 FRT FOG LP Relay 36 (T96)
11 LH HIGH 10 Headlamp – High Beam – Left
12 RH HIGH 10 Headlamp – High Beam – Right
13 PCM 10 Powertrain Control Module (PCM)
14 WIPER Fuse 25 Wiper 1 Relay 39
15 ABS 10 Electronic Brake Control Module (EBCM)(JL9/JM4)
16 PCM IGN 1 10 Powertrain Control Module (PCM)
17 C/FAN 1 30 Cooling Fan 1 Relay 28
18 C/FAN 2 30 Cooling Fan 2 Relay 30
19 RUN RLY 30 Blower Motor Control Module (C68), HVAC BLOWER HIGH Relay (C60), RUN Relay
20 IBCM 1 30 Body Control Module (BCM), AIRBAG (BATT) Fuse, CLUSTER/THEFT Fuse, HVAC CTRL (BATT) Fuse, IGN SENSOR Fuse, and RADIO Fuse
21 IBCM (R/C) 30 AIR BAG (IGN) Fuse, EPS Fuse and RUN/CRANK Fuse
22 RBEC 1 60 AUX PWR #2 Fuse 12, BACK UP LP Fuse 17, CIG/AUX Fuse 20 HTD ST FUSE 14, RKE/XM/DVD/UGD Fuse 16, SUN RF Fuse 10 and RR DEFOG Relay 26
23 RBEC 2 60 DRV ST Fuse 2, EMISSION 2 Fuses 5, FUEL Fuse 25, PARK LPS Fuses 6, and TRUNK Fuse 22
24 ABS 60 Electronic Brake Control Module (EBCM)(JL9)
25 IBCM 2 50 DOOR LOCK Fuse, INTERIOR LIGHT Fuse and ACCESSORY Relay
26 STARTER 30 Starter Relay 31
27 WIPER Diode Wiper 1 Relay 39, Wiper 2 Relay 40
28 COOL FAN 1 Relay Cooling Fan – Left
29 COOL SER/PAR Relay Cooling Fan – Left, Cooling Fan – Right
30 COOL FAN 2 Relay Cooling Fan – Right
31 STARTER Relay Starter Solenoid
32 RUN/CRANK Relay ABS Fuse 15, IBCM (R/C) Fuse 21, IGN 1 Fuse 3, INJ Fuse 5, PCM IGN 1 Fuse 16, TRANS Fuse 4
33 POWERTRAIN Relay Emission 1 Fuse 6, and ETC Fuse 2
34 A/C CLUTCH Relay A/C Compressor Clutch
35 HIGH BEAM Relay LH High Fuse 11, RH HIGH Fuse 12
36 FRT FOG Relay Fog Lamp – LF (T96), Fog Lamo RF (T96)
37 HORN Relay Horn Assembly
38 LOW BEAM Relay LH LOW Fuse 7, RH LOW Fuse 9
39 WIPER 1 Relay Wiper 2 Relay 40
40 WIPER 2 Relay Windshield Wiper Motor Assembly
41 EPS 80 Power Steering Control Module
42 BRAKE LAMP DIAGNOSTIC Resistor 620 ohm Body Control Module
43 Relay Ignition Module
44 Relay Fuel Injectors
45 Relay Intake Tuning Valve
46 (Resistor) Relay Brake Lamp Diagnostic
47 Relay Daytime Running Lamps
48 Relay Daytime Running Lamps

Rear Compartment Fuse Block

The rear compartment fuse block is located in the trunk of the vehicle.  Access the fuse block through the trunk panel on the driver’s side of the rear cargo area.

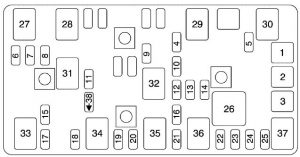

Chevrolet Malibu - wiring diagram - fuse box diagram - rear compartment
Chevrolet Malibu – wiring diagram – fuse
box diagram – rear compartment
Fuses Device Ampere rating [A] Usage
1
2 DRV ST 30 Seat Adjuster Switch – Driver
3
4 DR DOOR KEY CYL Resistor 620 ohm Door Lock Actuator – Driver
5 EMISSION 2 10 Evaportive Emission (EVAP) Canister Solenoid Valve
6 PARK LPS 10 PARK LPS Relay 27
7
8
9
10 SUB RF 15 Sunroof Control Module (CF5)
11
12 AUX PWR #2 20 Auxiliary Power Outlet – Rear (Extanded Sedan)
13
14 HTD ST 15 Heated Seat Control Module – Driver (KA1) and Heated Seat Control Module – Passenger (KA1)
15
16 RKE/XM/DVD/UGD 7,5 Digital Radio Reciver (U2K), DVD Player (U32), Garage Door Opener Transmitter (UG1), and Remote Control Door Lock Reciver (RCDLR)
17 BACK UP LP BACK UP LP Relay 33
18
19
20 CIG/AUX 20 Auxiliary Power Outlet – console (NW7, NW9), Auxiliary Power Outlet – Front (w/o NW7, Nw9) and Cigar Lighter
21
22 TRUNK 10 TRUNK Relay 36
23 RR DEFOG 30 Rear Window Defogger Grid
24 HTD MIR 10 Outside Rearview Mirror – Driver (DL8), Outside Rearview Mirror – Passenger (DL8)
25 FUEL 15 FUEL Relay 37



Relays Device Usage
26 RR DEFOG Relay RR DEFOG Fuse 23 and HTD MIR Fuse 24
27 PARK LPS Relay Backup Lamp – Left, Backup Lamp, Right, Body Control Module (BCM), Garage Door Opener Transmitter (UG1), HVAC Control Module (C60), License Lamp (Extanded Sedan), License Lamp – Left (Sedan), License Lamp – Right (Sedan) Park/Turn Signal Lamp – LF, Park/Turn Signal Lamp – RF, Tail Lamp – Left, Tail Lamp – Right, Tail/Stop and Turn Signal Lamp – Left, Tail/Stop and Turn Signal Lamp – Right
28
29
30
31
32
33 BACK UP LP Relay Backup Lamp – Left, Backup Lamp – Right, and Inside Rearview Mirror (DD8)
34
35
36 TRUNK Relay Rear Compartment Lid Latch0
37 FUEL Relay Fuel Pump
38 CARGO LP Diode Cargo :a,p Switch (Extanded Sedan), Rear Compartment Lid Latch (sedan)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
