Chevrolet Malibu (2014) – fuse box diagram

Year of production: 2014

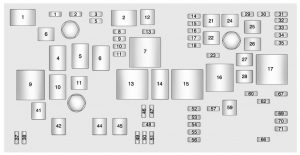

Engine Compartment Fuse Block

The engine compartment fuse block is on the driver side of the engine compartment, near the battery.

Chevrolet Malibu - wiring diagram - fuse box diagram - engine compartment
Chevrolet Malibu – wiring diagram – fuse box diagram – engine compartment
Mini fuses Usage
1 Transmission Control Module Battery
2 Engine Control Module Battery (LTG/ LUK)/Air Conditioning Compressor Clutch (LWK)
3 Air Conditioning Compressor Clutch (LTG/LUK)
4 Air Conditioning Compressor Clutch (LTG/LUK)
5 Engine Control Module Battery (LKW)
7 Engine Control Module Battery (LKW)
8 Spare
9 Ignition Coils
10 Engine Control Module
11 Emissions
13 Transmission Module Ignition
14 Cabin Heater Coolant Pump/SAIR Solenoid
15 MGU Coolant Pump
16 Aero Shutter/eAssist Ignition
17 SDM Ignition
18 R/C Dual Battery Isolator Module
20 Transmission Auxiliary Oil Pump (LKW)
23 eAssist Module/ Spare (LKW)
29 Left Seat Power Lumber Control
30 Right Seat Power Lumber Control
31 eAssist Module/ Chassis Control Module
32 Back-Up Lamps/ Interior Lamps
33 Front Heated Seats
34 Antilock Brake System Valve
35 Amplifier
37 Right High Beam
38 Left High Beam
46 Cooling Fan
47 Emissions
48 Foglamp
49 Low Beam HID Headlamp Right
50 Low Beam HID Headlamp Left
51 Horn/Dual Horn
52 Cluster Ignition
53 Inside Rearview Mirror/Rear Camera/ Fuel Module Ignition
54 Heating, Ventilation, and Air Conditioning Module Ignition
55 Front Power Windows/Mirrors
56 Windshield Washer
57 Spare
60 Heated Mirror
62 Canister Vent Solenoid
66 SAIR Solenoid
67 Fuel Module
69 Battery Voltage Sensor
70 Lane Departure/Rear Parking Aid/Side Blind Zone Assist
71 PEPS BATT



J-Case Fuses Usage
6 Front Wiper
12 Starter 1
21 Rear Power Window
22 Sunroof
24 Front Power Window
25 PEPS MTR
26 Antilock Brake System Pump
27 Not Used
28 Rear Defogger
41 Brake Vacuum Pump
42 Cooling Fan K2
44 Starter 2
45 Cooling Fan K1
59 Air Pump Emissions



Mini Relays Usage
7 Powertrain
9 Cooling Fan K2
13 Cooling Fan K1
15 Run/Crank
16 Air Pump Emissions
17 Window/Mirror Defogger



Micro Relays Usage
1 Air Conditioning Compressor Clutch
2 Starter Solenoid
4 Front Wiper Speed
5 Front Wiper On
6 Cabin Pump eAssist/ SAIR Solenoid
8 Transmission Auxiliary Oil Pump (LKW)
10 Cooling Fan K3
11 Transmission Oil Pump (LUK)/Starter 2 Solenoid (LKW)
14 Headlamp Low Beam/DRL

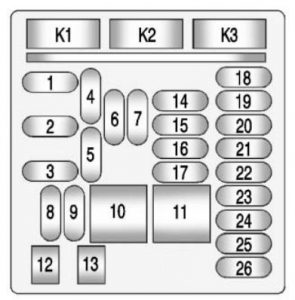

Instrument Panel Fuse Block

The instrument panel fuse block is in the instrument panel, on the driver side of the vehicle.

Chevrolet Malibu - wiring diagram - fuse box diagram - instrument panel
Chevrolet Malibu – wiring diagram – fuse box diagram – instrument panel
Fuses Usage
1 Steering Wheel Controls Backlight
2 Right Rear Turn Signal, Left Mirror Turn Signal, Left Front Turn Signal, Door Locks
3 Left Stoplamp, Left DRL Lamp, Headlamp Control, Right Taillamp, Right Park/Sidemarker Lamps, Right Mirror Turn, Right Front Turn Signals
4 Radio
5 OnStar (If Equipped)
6 Front Accessory Power Outlet
7 Console Bin Power Outlet
8 License Plate Lamp, Center High-Mounted Stoplamp, Rear Fog Lamps, Right Front Park/Sidemarker Lamps, LED Indicator Dim, Washer Pump, Right Stoplamp, Trunk Release
9 Left Low-Beam Headlamp, DRL
10 Body Control Module 8 (J-Case Fuse), Power Locks
11 Front Heater Ventilation Air Conditioning/Blower (J-Case Fuse)
12 Passenger Seat (Circuit Breaker)
13 Driver Seat (Circuit Breaker)
14 Diagnostic Link Connector
15 Airbag, SDM
16 Trunk Release
17 Heater Ventilation Air Conditioning Controller
18 Audio Main
19 Displays
20 Passenger Occupant Sensor
21 Instrument Cluster
22 Ignition Switch
23 Right Low-Beam Headlamp, DRL
24 Ambient Light, Switch Backlighting (LED), Trunk Lamp, Shift Lock, Key Capture
25 110V AC
26 Spare



Relays Usage
K1 Trunk Release
K2 Not used
K3 Power Outlet Relay



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
