Chevrolet Spark M300 (2009 – 2015) – fuse box diagram
Year of production: 2009, 2010, 2011, 2012, 2013, 2014, 2015

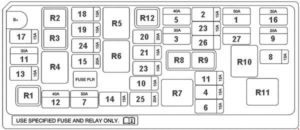

Engine compartment fuse box
| No. |
A |
Description |
| F1UA | 50 | Rear Window Demister Relay, Fuse Block – Instrument Panel |
| F1UB | 15 | Hazard Lamps Switch |
| F2UA | 30 | Ignition Switch |
| F2UB | 15 | Engine Control Module, Ignition Coil 1, Ignition Coil 2, Ignition Coil 3, Ignition Coil 4, Ignition Coil Module, K103 LPG Control Module |
| F3UA | 40 | Ignition Switch |
| F3UB | 15 | Heated Oxygen Sensor, Exhaust Gas Recirculation Valve, Evaporative Emissions Purge Solenoid (EVAP) Valve, Heated Oxygen Sensor 1, Camshaft Position Sensor, Heated Oxygen Sensor 2 |
| F4UA | 50 | Electronic Brake Control Module (EBCM) |
| F4UB | 10 | Engine Control Module, Transmission Control Module (MFL) |
| F5UA | 20 | Seat Heating Relay |
| F5UB | – | Not Used |
| F6UA | 30 | Cooling Fan High Speed Relay |
| F6UB | 15 | Engine Control Module, Ignition Coil 1, Ignition Coil 2, Ignition Coil 3, Ignition Coil 4, Ignition Coil Module, LPG Control Module |
| F7UA | 40 | Electronic Brake Control Module (EBCM) |
| F7UB | 10 | A/C Compressor Clutch |
| F8UA | – | Not Used |
| F8UB | 20 | Cooling Fan Resistor |
| F9UA | 30 | Starter Relay |
| F9UB | 15 | Fuel Pump Relay |
| F10UB | 10 | Number Plate Lamp, Tail Lamp – Left, Park/Indicator Lamp – Left, Headlamp Levelling Actuator – Left |
| F11UB | 10 | Park/Indicator Lamp – Right, Headlamp Levelling Actuator – Right, Tail Lamp – Right, Interior Lamp Relay |
| F12UB | 20 | Headlamp Assembly – Right, Headlamp Assembly – Left, Instrument Cluster |
| F13UB | 10 | Headlamp Assembly – Left, Headlamp Levelling Switch |
| F14UB | 10 | Headlamp Assembly – Right |
| F15UB | 10 | Horn Relay, Bonnet Ajar Switch |
| F16UB | 10 | Front Fog Lamp Relay |
| Relays |
||
| R1 | A/C Relay | |
| R2 | Engine Main Relay | |
| R3 | Fan HI Relay | |
| R4 | Fan LO Relay | |
| R5 | Front Fog Relay | |
| R6 | Fuel Pump Relay | |
| R7 | Headlamp HI Relay | |
| R8 | Headlamp LO Relay | |
| R9 | Horn Relay | |
| R10 | Heated Seat Relay | |
| R11 | Starter Relay | |

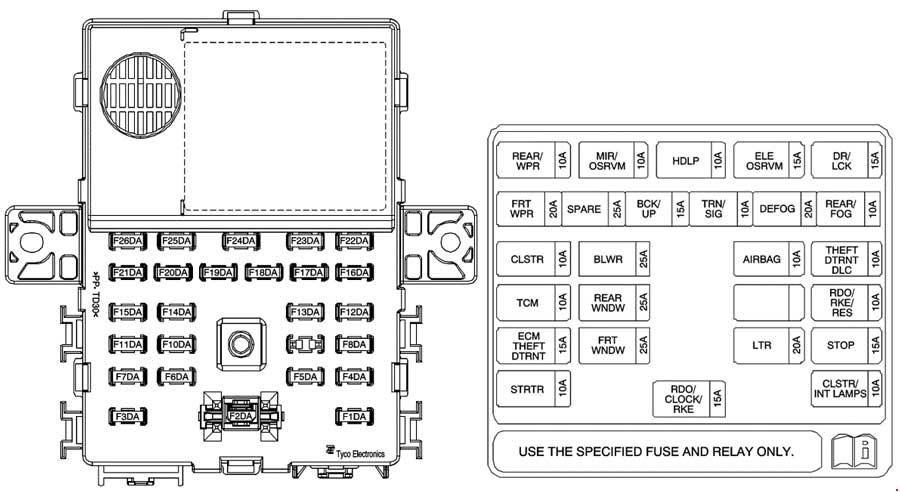

Instrument Panel Fuse Block
| No. |
A |
Description |
| F1DA | 10 | Interior Light, Cargo Lamp, Inflatable Restraint Sensing and Diagnostic Module |
| F2DA | 15 | Mobile Telephone Control Module, Radio, Instrument Cluster, Remote Control Door Lock Receiver (RCDLR), Content Theft Deterrent Control Module, HVAC Control Module. |
| F3DA | 10 | Instrument Cluster, Starter Motor, Park / Neutral Switch, Remote Control Door Lock Receiver (RCDLR), Ignition Switch |
| F4DA | 15 | Brake Lamp Switch, Engine Control Module (ECM), Transmission Control Module (TCM), Electronic Brake Control Module (EBCM), Tail Lamp – Left, Tail Lamp – Right, Centre High Mounted Stop Lamp (CHMSL) |
| F5DA | 20 | Cigarette Lighter Receptacle Fuse |
| F6DA | 25 | Window Switch – Passenger, Window Switch – Driver, Window Switch Global |
| F7DA | 15 | Fuel Pump Relay, Engine Control Module (ECM), Automatic Transmission Turbine Speed Sensor, Fuel Rail Pressure Sensor, Vehicle Speed Sensor (VSS), LPG Control Module, Automatic Transmission Output Shaft Speed Sensor, Immobilizer Control Module, Immobilizer Control Module – Auxiliary |
| F8DA | 10 | Instrument Cluster, Radio, Remote Control Door Lock Receiver (RCDLR), Content Theft Deterrent Control Module |
| F9DA | – | Not Used |
| F10DA | 25 | Window Switch – Driver |
| F11DA | 10 | Brake Lamp Switch, Transmission Control Module, Automatic Transmission Shift Lever |
| F12DA | 10 | Data Link Connector (DLC), Data Link Connector (DLC) 2, Immobilizer Control Module – Auxiliary, Immobilizer Control Module |
| F13DA | 10 | Inflatable Restraint Sensing and Diagnostic Module |
| F14DA | 25 | Blower Motor Control Module |
| F15DA | 10 | Info Display Module, Instrument Cluster, Mobile Telephone Control Module |
| F16DA | 10 | Rear Fog Lamp Relay, Tail Lamp – Left, Tail Lamp – Right, Instrument Cluster. |
| F17DA | 20 | Rear Window Demister Grid |
| F18DA | 10 | Hazard Lamps Switch |
| F19DA | 15 | Park / Neutral Position (PNP) Switch, Reversing Lamp Switch |
| F20DA | 25 | Not Used |
| F21DA | 20 | Windscreen Wiper Motor, Windscreen Wiper / Washer Switch |
| F22DA | 15 | Door Lock Relay, Door Unlock Relay |
| F23DA | 15 | HVAC Controls Switch Assembly, Windscreen Demister Grid, Outside Rearview Mirror – Driver, Outside Rearview Mirror – Passenger |
| F24DA | 10 | Content Theft Deterrent Control Module, Fuse Block – Underhood, Headlamp Dipped beam Relay, Headlamp Main Beam Relay, Starter Relay, Heated Seats Relay |
| F25DA | 10 | Instrument Cluster, HVAC Control, Outside Rearview Mirror Switch |
| F26DA | 10 | Windscreen Wiper / Washer Switch, Rear Window Wiper Motor |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
