Year of production: 2015, 2016

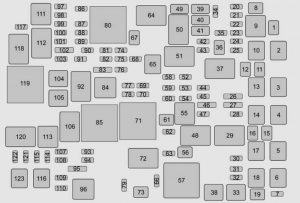

Underhood Fuse Block
The underhood fuse block is located in the engine compartment, on the driver’s side of the vehicle.
| Fuses | Usage |
| 1 | Electric Running Boards |
| 2 | Antilock Brake System Pump |
| 3 | Interior BEC LT1 |
| 4 | MBS Passenger |
| 5 | Suspension Leveling Compressor |
| 6 | 4WD Transfer Case Electronic Control |
| 10 | Electric Parking Brake |
| 13 | Interior BEC LT2 |
| 14 | Rear BEC 1 |
| 17 | MBS Drive |
| 21 | ALC Exhaust Solenoid |
| 23 | Integrated Chassis Control Module |
| 24 | Real Time Dampening |
| 25 | Fuel Pump Power Module |
| 26 | Spare/Battery Regulated Voltage Control |
| 28 | Upfitter 2 |
| 29 | Upfitter 2 Relay |
| 30 | Wiper |
| 31 | TIM |
| 34 | Back-up Lamps |
| 35 | Antilock Brake System Valve |
| 36 | Trailer Brakes |
| 37 | Upfitter 3 Relay |
| 39 | Trailer Stop/Turn Right |
| 40 | Trailer Stop/Turn Left |
| 41 | Trailer Park Lamps |
| 42 | Right Parking Lamps |
| 43 | Left Parking Lamps |
| 44 | Upfitter 3 |
| 45 | Automatic Level Control Run/Crank |
| 47 | Upfitter 4 |
| 48 | Upfitter 4 Relay |
| 49 | Reverse Lamps |
| 51 | Parking Lamp Relay |
| 59 | Euro Trailer |
| 60 | Air Conditioning Control |
| 63 | Upfitter 1 |
| 67 | Trailer Battery |
| 69 | RC Upfitter 3 and 4 |
| 70 | VBAT Upfitter 3 and 4 |
| 72 | Upfitter 1 Relay |
| 74 | Engine Control Module Ignition |
| 75 | Miscellaneous Ignition Spare |
| 76 | Transmission Ignition |
| 77 | RC Upfitter 1 and 2 |
| 78 | VBAT Upfitter 1 and 2 |
| 83 | Euro Trailer RC |
| 84 | Run/Crank Relay |
| 87 | Engine |
| 88 | Injector A – Odd |
| 89 | Injector B – Even |
| 90 | Oxygen Sensor B |
| 91 | Throttle Control |
| 92 | Engine Control Module Relay |
| 93 | Horn |
| 94 | Fog Lamps |
| 95 | High-Beam Headlamps |
| 100 | Oxygen Sensor A |
| 101 | Engine Control Module |
| 102 | Engine Control Module/Transmission Control Module |
| 103 | Auxiliary Interior Heater |
| 104 | Starter |
| 107 | Aero Shutter |
| 109 | Police Upfitter |
| 112 | Starter Relay |
| 114 | Front Windshield Washer |
| 115 | Rear Window Washer |
| 116 | Right HID Headlamp |
| 122 | Left HID Headlamp |
| 123 | Cooling Fan Right |
Instrument Panel Fuse Block (Left)
The left instrument panel fuse block access door is on the driver side edge of the instrument panel.
| Fuses | Usage |
| 1 | Not Used |
| 2 | Not Used |
| 3 | Not Used |
| 4 | Accessory Power Outlet 1 |
| 5 | Retained Accessory Power/Accessory |
| 6 | APO/BATT |
| 7 | Universal Garage Door Opener/Inside Rear View Mirror |
| 8 | SEO Retained Accessory Power |
| 9 | Not Used |
| 10 | Body Control Module 3 |
| 11 | Body Control Module 5 |
| 12 | Steering Wheel Controls Backlighting |
| 13 | Not Used |
| 14 | Not Used |
| 15 | Not Used |
| 16 | Discrete Logic Ignition Sensor |
| 17 | VPM |
| 18 | Mirror Window Module |
| 19 | Body Control Module 1 |
| 20 | Front Bolster (if equipped) |
| 21 | Not Used |
| 22 | Not Used |
| 23 | Not Used |
| 24 | Heater, Ventilation and Air Conditioning Ignition/Heater, Ventilation and Air Conditioning Auxiliary |
| 25 | Instrument Cluster Ignition/Sensing Diagnostic Module Ignition |
| 26 | Tilt Column/SEO, Tilt Column Lock 1/SEO |
| 27 | Data Link Connector/Driver Seat Module |
| 28 | Passive Entry/Passive Start/Heater, Ventilation and Air Conditioning Battery |
| 29 | Content Theft |
| 30 | Not Used |
| 31 | Not Used |
| 32 | Not Used |
| 33 | SEO/Automatic Level Control |
| 34 | Park Enable Electric Adjustable Pedal (if equipped) |
| 35 | Not Used |
| 36 | Miscellaneous R/C |
| 37 | Heated Steering Wheel |
| 38 | Steering Column Lock 2 (if equipped) |
| 39 | Instrument Cluster Battery |
| 40 | Not Used |
| 41 | Not Used |
| 42 | Euro Trailer (if equipped) |
| 43 | Left Doors |
| 44 | Driver Power Seat |
| 45 | Not Used |
| 46 | Right Heated/Cooled Seat |
| 47 | Left Heated/Cooled Seat |
| 48 | Not Used |
| 49 | Not Used |
| 50 | Accessory Power Outlet 2 |
| 51 | Not Used |
| 52 | Retained Accessory Power/Accessory Relay |
| 53 | Run/Crank Relay |
| 54 | Not Used |
| 55 | Not Used |
| 56 | Not Used |
Instrument Panel Fuse Block (Right)
The right instrument panel fuse block access door is on the passenger side edge of the instrument panel.
wiring diagram – fuse box – instrument panel fuse block (right)
| Number | Usage |
| 1 | Not Used |
| 2 | Not Used |
| 3 | Not Used |
| 4 | Accessory Power Outlet 4 |
| 5 | Not Used |
| 6 | Not Used |
| 7 | Not Used |
| 8 | Glove Box |
| 9 | Not Used |
| 10 | Not Used |
| 11 | Not Used |
| 12 | Steering Wheel Controls |
| 13 | Body Control Module 8 |
| 14 | Not Used |
| 15 | Not Used |
| 16 | Not Used |
| 17 | Not Used |
| 18 | Not Used |
| 19 | Body Control Module 4 |
| 20 | Rear Seat Entertainment |
| 21 | Sunroof |
| 22 | Not Used |
| 23 | Not Used |
| 24 | Not Used |
| 25 | Not Used |
| 26 | Info/Airbag |
| 27 | Spare/RF WDW RN SW |
| 28 | Obstacle Detection/USB |
| 29 | Radio |
| 30 | Not Used |
| 31 | Not Used |
| 32 | Not Used |
| 33 | Not Used |
| 34 | Not Used |
| 35 | Not Used |
| 36 | SEO B2 |
| 37 | SEO |
| 38 | Body Control Module 2 |
| 39 | A/C Inverter |
| 40 | Not Used |
| 41 | Not Used |
| 42 | Not Used |
| 43 | Not Used |
| 44 | Right Door Window Motor |
| 45 | Front Blower |
| 46 | Body Control Module 6 |
| 47 | Body Control Module 7 |
| 48 | Amplifier |
| 49 | Right Front Seat |
| 50 | Accessory Power Outlet 3 |
| 51 | Not Used |
| 52 | Retained Accessory Power/Accessory Relay |
| 53 | Not Used |
| 54 | Not Used |
| 55 | Not Used |
| 56 | Not Used |

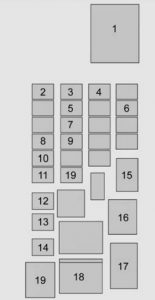

Rear Compartment Fuse Block
The rear compartment fuse block is behind the access panel on the left side of the compartment.

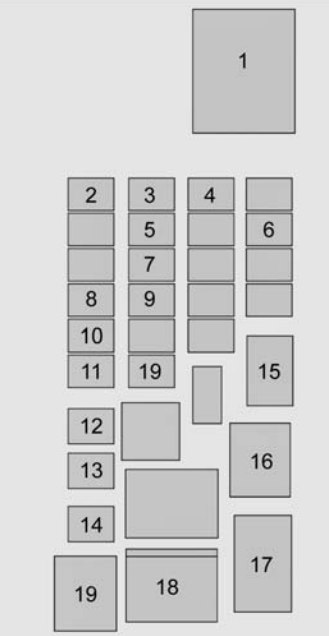

wiring diagram – fuse box – rear compartment
| ISO Mini Relays | Usage |
| 1 | Rear Defog |
| Micro Fuses | Usage |
| 2 | Heated Second Row Seat Left |
| 3 | Heated Second Row Seat Right |
| 4 | Heated Mirrors |
| 5 | Liftgate |
| 6 | Glass Breakage |
| 7 | Liftglass |
| 8 | Liftgate Module Logic |
| 9 | Rear Wiper |
| 10 | Rear Heater, Ventilation and Air Conditioning Blower |
| 11 | Second Row Seat |
| 19 | Rear Fog Lamp (if equipped) |
| M-Type | Usage |
| 12 | Liftgate Module |
| 13 | Third Row Seat |
| 14 | Rear Accessory Power Outlet |
| 15 | Rear Defogger |
| Ultra Micro Relays | Usage |
| 16 | Liftgate |
| Micro Relays | Usage |
| 17 | Liftglass |
| 18 | Rear Fog Lamp (if equipped) |
| 19 | Heated Mirrors |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
