Year of production: 2013
Engine compartment

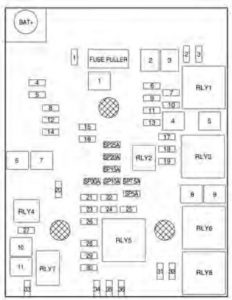

Main fuse block
| Mini fuses | Circuit |
| 1 | SUNROOF |
| 2 | OSRVM SW |
| 3 | CANISTER VENT SOLENOID |
| 4 | — |
| 5 | EBCM VALVE |
| 6 | IBS |
| 7 | — |
| 8 | TCM B+ |
| 9 | BCM RVC |
| 10 | HDLP LEVELING LH/RH FSCM R/C |
| 11 | REAR WIPER |
| 12 | RR WDW DEFOG |
| 13 | — |
| 14 | OSRVM HEAT |
| 15 | FSCM B+ |
| 16 | HEATED SEAT MODULE |
| 17 | TCM R/C |
| 18 | ECM R/C |
| 19 | FUEL PUMP |
| 20 | — |
| 21 | Gasoline: FAN RLY (AUX BEC) |
| Diesel: Fan3 Relay 85 | |
| 22 | COLD START PUMP |
| 23 | Gasoline: IGNITION COIL/INJECTOR COIL |
| Diesel: ECM PT IGN-2 | |
| 24 | WASHER PUMP |
| 25 | — |
| 26 | . Gasoline: CANISTER PURGE, SOL/WATER VALVE, SOL/TURBO WASTEGATE, SOL/TURBO BYPASS SOL/O2, SENSOR PRE/POST |
| Diesel: VARIABLE SWIRL SOL | |
| 27 | — |
| 28 | Gasoline: NOT USED |
| Diesel: ECM PT IGN-3 | |
| 29 | Gasoline: ECM PT IGN-1 /IGN-2 |
| Diesel: ECM PT IGN-1 | |
| 30 | Gasoline: MAF SENSOR |
| Diesel: O2 SENSOR | |
| 31 | HIGH BEAM LH |
| 32 | HIGH BEAM RH |
| 33 | ECM B+ |
| 34 | HORN |
| 35 | A/C CLUTCH |
| 36 | FRONT FOG LAMP |
| J-case fuse | Circuit |
| 1 | EBCM PUMP |
| 2 | FRT WIPER |
| 3 | BLOWER |
| 4 | IEC R/C |
| 5 | — |
| 6 | Gasoline: NOT USED |
| Diesel: FUEL HEATER | |
| 7 | — |
| 8 | COOL FAN LOW/MID |
| 9 | COOL FAN HIGH |
| 10 | Gasoline: EVP |
| Diesel: GLOW PLUG | |
| 11 | STARTER SOL |
| U-Micro Relays | Circuit |
| 2 | FUEL PUMP |
| 4 | SPARE |
| HC-Micro Relays | Circuit |
| 7 | STARTER |
| Mini Relays | Circuit |
| 1 | RUN CRANK |
| 3 | COOL FAN MID |
| 5 | PT RELAY |
| 8 | COOL FAN LOW |
| HC-Mini Relays | Circuit |
| 6 | COOL FAN HIGH |

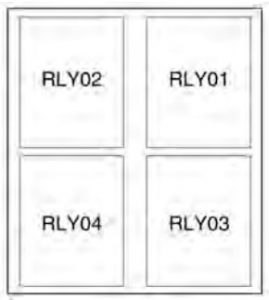

Auxiliary fuse block
| Relays | Circuit |
| 01 | ELECTRIC VACUUM PUMP RELAY |
| 02 | COOLING FAN CTRL 1 RELAY |
| 03 | COOLING FAN CTRL 2 RELAY |

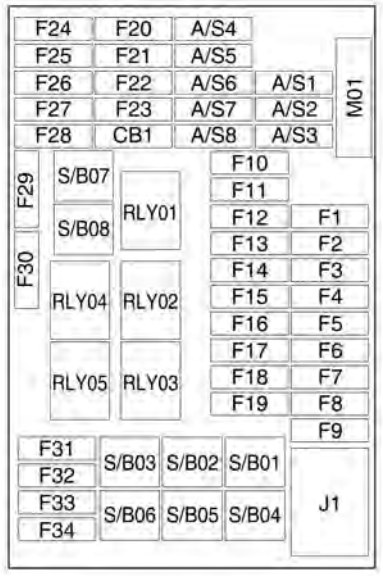

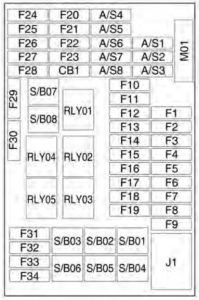

Instrument panel fuse block
Interior fuse block is located on the underside of the driver’s side instrument panel
| Relays | Circuit |
| 01 | ACCY/RAP RELAY |
| 02 | L/GATE RELAY |
| 03 | SPARE RELAY |
| 04 | BLOWER RELAY |
| 05 | LOGISTIC MODE RELAY |
| Mini fuses | Circuit |
| F1 | BCM 1 |
| F2 | BCM 2 |
| F3 | BCM 3 |
| F4 | BCM 4 |
| F5 | BCM 5 |
| F6 | BCM 6 |
| F7 | BCM 7 |
| F8 | BCM 8 |
| F9 | DLIS |
| F10 | SDMB+ |
| F11 | DLC |
| F12 | HVAC MDL |
| F13 | L/GATE RLY |
| F14 | UPA MDL |
| F15 | ISRVM |
| F16 | SPARE |
| F17 | PWR WNDWSW DR |
| F18 | RAIN SNSR |
| F19 | BCM RVC |
| F20 | SWC BKLT |
| F21 | AC APO |
| F22 | CIGAR LTR/DC APO |
| F23 | SPARE |
| F24 | SPARE |
| F25 | SPARE |
| F26 | SDM RC/AOS DISPLY |
| F27 | IPC/CMPS MDL |
| F28 | HDLP SW/DC CVT/CLTCH SW |
| F29 | SPARE |
| F30 | SPARE |
| F31 | IPC B+ |
| F32 | RDO/CHIME/AUX JACK |
| F33 | DISPLY/FACE PLATE |
| F34 | ONSTAR UHP/DAB |
| S/B Fuses | Circuit |
| S/B01 | PTC 1 |
| S/B02 | PTC 2 |
| S/B03 | PWR WNDW MTR FRT |
| S/B04 | PWR WNDW MTR REAR |
| S/B05 | LOGISTIC MODE RLY |
| S/B06 | SPARE |
| S/B07 | PWR WNDW FRT |
| S/B08 | PWR WNDW REAR |
| Main Connector | Circuit |
| J01 | IEC MAIN PWR CONNECTOR |
| Circuit breaker | Circuit |
| CB1 | SPARE |
| Midi fuses | Circuit |
| M01 | SPARE |

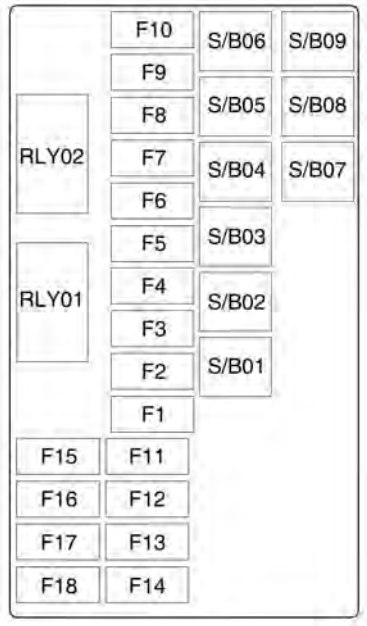

Rear compartment fuse block
It is located in the left side of rear compartment.
| Relays | Circuit |
| RLY01 | IGN RELAY |
| RLY02 | RUN RELAY |
| Main fuses | Circuit |
| F1 | PWR LUM SW DR |
| F2 | PWR LUM SW PASS |
| F3 | AMPLIFIER |
| F4 | TRLR SOCKET |
| F5 | AWD MDL |
| F6 | AOS MDL |
| F7 | SPARE |
| F8 | TRLR PARK LP |
| F9 | SPARE |
| F10 | SPARE |
| F11 | TRLR MDL |
| F12 | NAV DOCK |
| F13 | HTD STR WHL |
| F14 | TRLR SOCKET |
| F15 | EVP SW |
| F16 | WATER IN FUEL SENSOR |
| F17 | ISRVM/RVC |
| F18 | SPARE |
| S/B Fuses | Circuit |
| S/B01 | PWR SEAT SW DR/ MEMORY MDL |
| S/B02 | PWR SEAT SW PASS |
| S/B03 | TRLR MDL |
| S/B04 | ACDCINV |
| S/B05 | BATT+ |
| S/B06 | HDLP WASH |
| S/B07 | SPARE |
| S/B08 | SPARE |
| S/B09 | SPARE |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
