Chevrolet Volt (2013) – fuse box diagram

Year of production: 2013

Engine compartment

Chevrolet Volt - wiring diagram - fuse box - engine compartment
Chevrolet Volt – wiring diagram – fuse box – engine compartment
Mini fuses Usage
1 Engine Control Module – Switched Power
2 Emissions
3
4 Ignition Coils/Injectors
5 Column Lock
6a Column Lock
6b Rear Demister
7
8
9 Heated Mirrors
10 Air Conditioning Control Module
11 Traction Power Inverter Module – Battery
12
13 Cabin Heater Pump and Valve
14 Theft Deterrent – Power Sounder (If Equipped)
15 Traction Power Inverter Module and Transmission Control Module – Battery
17 Engine Control Module – Battery
22 Left Main-Beam Headlamp
24
25
26 Theft Deterrent – Horn (If Equipped)
31
32 Run/Crank – Sensing Diagnostic Module, Instrument Cluster, Passenger Airbag Display, Headlamp Level Switch, Automatic Dimming Inside Rearview Mirror (If Equipped)
33 Run/Crank – Vehicle Integration Control Module
34 Vehicle Integration Control Module – Batter
35
36 Power Electronics Coolant Pump
37 Cabin Heater Control Module
38 Rechargeable Energy Storage System (High Voltage Battery) Coolant Pump
39 Rechargeable Energy Storage System (High Voltage Battery) Control Module
40 Front Windscreen Washer
41 Right Main-Beam Headlamp
46
47
49
50 Run/Crank – Rear Vision Camera, Accessory Power Module, Tyre Pressure Monitor, Headlamp Levelling Motors (If Equipped)
51 Run/Crank for ABS/Rechargeable Energy Storage System (High Voltage Battery)
52 Engine Control Module/Transmission Control Module – Run/Crank
53 Traction Power Inverter Module – Run/Crank
54 Run/Crank – Fuel System Control Module, Air Conditioning Control Module, On-Board Charger
J-case fuse Usage
16
18
19 Power Window – Front
20
21 Antilock Brake System Electronic Control Unit
23 Charge Port Door
27
28
29
30 Antilock Brake System Motor
42 Cooling Fan – Right
43 Front Wipers
44 Charger
45
48 Cooling Fan – Left
Mini Relays Usage
3 Powertrain
4 Heated Mirrors
7
9
11
12
13
14 Run/Crank
Micro Relays Circuit
1
2
6
8
10



Ultra Micro Relays Circuit
5 Charge Port Door



Instrument Panel Fuse box (Left Side)

The left instrument panel fuse box is on the left side end of the instrument panel.

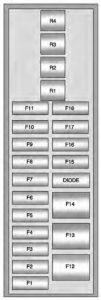

Chevrolet Volt - wiring diagram - fuse box - instrument panel (left side)
Chevrolet Volt – wiring diagram – fuse box – instrument panel (left side)
Fuses Usahe
F1 Power Outlet – Top of IP Storage Bin
F2 Radio
F3 Instrument Cluster (LHD)/Hands-Free Phone (RHD)
F4 Infotainment Display
F5 Heating, Ventilation & Air Conditioning/Integrated Centre Console Switches
F6 Airbag (Sensing Diagnostic Module)
F7 Data Link Connector, Left (Primary LHD), Data Link Connector, Left (Secondary RHD)
F8 Column Lock (LHD)
F9 GSM (OnStar Data Only)
F10 Body Control Module 1/Body Control Module Electronics/Keyless Entry/Power Moding/Centre High-Mounted Stop lamp/License Plate Lamps/Left Daytime Running Lamp/Left Position Lamps/Tailgate Release Relay Control/Washer Pump Relay Control/Switch Indicator Lights
F11 Body Control Module 4/Left Headlamp
F12 Fan (RHD)
F13
F14
F15 Power Outlet (Inside Floor Console/Rear of Floor Console)
F16
F17
F18



Relays Usage
R1 Retained Accessory Power Relay for Power Outlets
R2
R3
R4 Deadbolt (If Equipped LHD), Child Lockout (RHD)



Diodes Circuit
DIODE

Instrument Panel Fuse box (Right Side)

The right instrument panel fuse box is on the right side end of the instrument panel.

Chevrolet Volt - wiring diagram - fuse box - instrument panel (right side)
Chevrolet Volt – wiring diagram – fuse box – instrument panel (right side)
Fuses Usage
F1 Steering Wheel Switch Back lighting
F2 Column Lock (RHD)
F3 Cluster (RHD)/Hands-Free Phone (LHD)
F4 Body Control Module 3/Right Headlamp
F5 Body Control Module 2/Body Control Module Electronics/Tailgate Lamp/Right Daytime Running Lamp/Shifter Lock/Switch Back lighting/Rear Fog Lamp
F6 Body Control Module 5/Retained Accessory Power Relay Control/Right Front Turn Signal Lamp/Left Rear Stop and Turn Signal Lamp/Right Position Lamps/Remote PRNDL
F7 Body Control Module 6/Map Lights/Courtesy Lights/Back-up Lamp
F8 Body Control Module 7/Left Front Turn Signal/Right Rear Stop and Turn Signal Lamp/Child Security Lock Relay Control
F9 Body Control Module 8/Locks
F10 Data Link Connector, Right (Secondary LHD), Data Link Connector, Right (Primary RHD)
F11 Intrusion and Inclination Sensor (If Equipped)
F12 Fan Motor (LHD)
F13
F14
F15
F16
F17



Relays Usage
R1
R2
R3
R4 Deadbolt (If Equipped RHD), Child Lockout (LHD)



Diodes Usage
DIODE



Rear compartment fuse block

The rear compartment fuse box is on the left side of the rear compartment behind a removable cover.

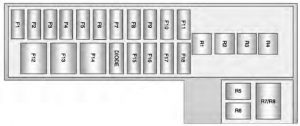

Chevrolet Volt - wiring diagram - fuse box - rear compartment
Chevrolet Volt – wiring diagram – fuse box – rear compartment
Fuses Usage
F1
F2 Fuel System Control Module
F3 Passive Start/Passive Entry Module
F4 Heated Seats (If Equipped)
F5 Driver Door Switches (Outside Rearview Mirror/ Charge Port Door Release/Refuel Request/Driver Window Switch)
F6 Fuel (Diurnal Valve and Evap. Leak Check Module)
F7 Accessory Power Module Cooling Fan
F8 Amplifier (If Equipped)
F9 Digital Audio Broadcast (If Equipped)
F10 Regulated Voltage Control/Ultrasonic Front and Rear Parking Assist (If Equipped)
F11 Horn
F12 Rear Power Windows
F13 Electric Parking Brake
F14 Rear Demist (Upper Grid)
F15
F16 Tailgate Release
F17
F18



Relays Usage
R1 Rear Demist (Upper Grid)
R2 Tailgate Release
R3
R4
R5
R6
R7 Horn
R8 Horn



Diodes Usage
DIODE

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
