Chrysler 300/300C (2005 – 2010) – fuse box diagram

14 January 2021 admin 300, Chrysler 0

Chrysler 300/300C (2005 – 2010) – fuse box diagram

Year of production: 2005, 2006, 2007, 2008, 2009, 2010

Luggage Compartment Fuse Box

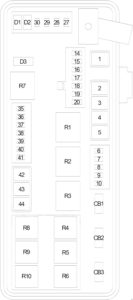

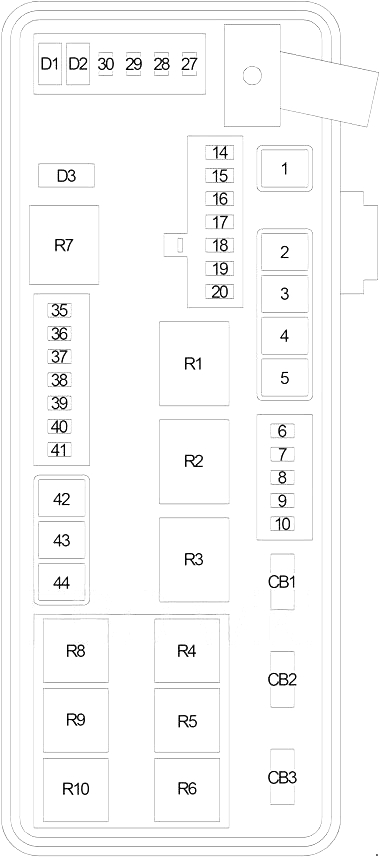

Chrysler 300/300M - fuse box diagram - luggage compartment
Chrysler 300/300M – fuse box diagram – luggage compartment
No. A
 Protected Component
1 60 Fuse (Luggage Compartment): “14”, “36”, “38”, “44”
2 40 Engine Compartment Fuse Box (Fusible Link 14)
3 20 Police: Dome Lamp
4 40 Engine Compartment Fuse Box (Fusible Link 14)
5 30 execept SRT8: Heated Seat Module, Zener Diode, Fuse (Luggage Compartment): “30”
40 SRT8: Heated Seat Module, Zener Diode, Fuse (Luggage Compartment): “30”
6 20 Fuel Pump Relay
7 20 SRT8: Subwoofer Amplifier
15 Police: Spot Lamp (Right)
8 15 Data Link Connector, Occupant Classification System (LHD), Ignition Switch (Engine Control Module (Diesel), Powertrain Control Module, Lock Steering Column Module (RHD), Fuel Pump Relay (Gasoline), Fuse (Luggage Compartment): “27”, “29”, “40”, Diode No.1)
9 20 Power Outlet – Console
10 10 Export: Rear Fog Lamp Relay
15 Police: Spot Lamp (Left)
14 10 A/C / Heater Control, Sentry Key Remote Entry Module (LHD), Cluster, Intrusion Transceiver  Module (RHD)
15 20 Brake Module (Trailer Tow)
16 20 Magnum (300C Touring): Rear Power Outlet
17 20 Cluster, Lock Steering Column Module (RHD), Sentry Key Remote Entry Module (RHD)
18 20 Cigar Lighter
19 10 Stop Lamp Switch, Stop Lamp Inhibit Relay (except MK25E)
20 20 Magnum (300C Touring): Rear Wiper Relay
27 10 Occupant Classification System, Occupant Restraint Controller Module
28 10 execept SRT8: Occupant Restraint Controller Module
5 SRT8: Occupant Restraint Controller Module
29 5 Stop Lamp Switch, Cluster, Sentry Key Remote Entry Module, Mass Air Flow Sensor (Diesel), ABS, Front Control Module, Powertrain Control Module (Gasoline), Engine Control Module (Diesel)
30 10 Driver/Passenger Door Module, Mirror Switch, Steering Control Module, Police/Taxi Interface Module
35 5 Mirror Switch (except Memory), Passenger Express Window/Door Lock Switch (except Base), Backlite Antenna Amplifier, Headlamp Flasher (Police), Police Relay No.1, Police Relay No.2, Police Relay No.3, Electronic Overhead Module (Export), Rain Sensor (Export)
36 20 Radio, Hands-Free Module, Satellite Receiver, Monitor/DVD Media System, Traffic Information Receiver Module (Export)
37 15 NAG1: Transmission Control Module
38 5 Cargo Lamp (except Magnum), Analog Clock Module, Electronic Overhead Module, Siren (RHD)
39 10 Heated Mirror
40 5 execept SRT8: Left/Right Heated Seat Switch, A/C Heater Control, Inside Rearview Mirror
10 SRT8: Left/Right Heated Seat Switch, A/C Heater Control, Inside Rearview Mirror
5 Police: Bank Switch
41 10 A/C Heater Control, Tire Pressure Monitor, Left/Right Headlamp Level Sensor (Export), Parl Assist Module, Headlamp Leveling Module (Export), Left/Right High Intensity Discharge Lamp (Export)
42 30 Front Blower Motor (MTC), Front Blower Module (ATC)
43 30 Rear Window Defogger
44 20 Front Control Module, Sunroof Motor/Module, Radio Amplifier
Circuit Breaker
CB1 25 Driver Seat Switch (except Memory), Memory Seat Module, Cluster (except Power/Memory Seat)
CB2 25 Passenger Seat Switch
CB3 25 execept SRT8:Driver/Passenger Window/Door Lock Switch (Base), Driver/Passenger Door Module (except Base), Driver Express Window/Door Lock Switch (except Base)
30 SRT8:Driver/Passenger Window/Door Lock Switch (Base), Driver/Passenger Door Module (except Base), Driver Express Window/Door Lock Switch (except Base)
Diode
D1 NAG1: Transmission Control Relay
D2 Front Control Module
D3 Zener
Relay
R1 Run
R2 Rear Window Defogger
R3 Accessory Delay
R4 NAG1: Transmission Control
R5 Export: Rear Fog Lamp
R6 Magnum (300C Touring): Rear Wiper
R7  –
R8 Stop Lamp Inhibit (except MK25E)
R9 Fuel Pump
R10  –

Engine Compartment Fuse Box

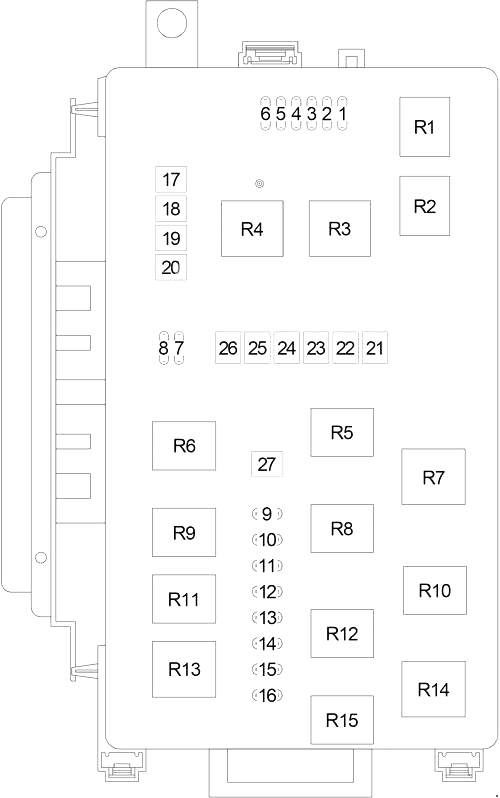

Chrysler 300/300M - fuse box diagram - engine compartment
Chrysler 300/300M – fuse box diagram – engine compartment
No. A
 Protected Component
1 20 HID: Left High Intensity Discharge Lamp
2 20 HID: Right High Intensity Discharge Lamp
3 15 Adjustable Pedals Relay (except Memory)
4 20 Horn Relay, Front Control Module, Air Conditioner Compressor Clutch (Gasoline)
5 20 HID: Headlamp Washer Relay
20 Cluster (’05)
20 Police: Underhood Lamp
6 15 Front Control Module
7 20 Front Fog Lamp, Front Control Module
8 15 Park Lamp Relay (Front Park/Turn Lamp, Front/Rear Side Marker Lamp, License Lamp, Tail/Stop Lamp or Tail/Stop/Park Lamp), Front Control Module
9 15 Front Control Module
10 5 Powertrain Control Module, Starter Relay, Engine Control Module (Diesel)
11 15 SRT8: Powertrain Control Module
20 execept SRT8: Powertrain Control Module
12 –  –
13 –  –
14 20 SRT8: Powertrain Control Module
25 execept SRT8: Powertrain Control Module
20 ’05: Powertrain Control Module
25 Diesel: Engine Control Module, PTC Relay No.1, PTC Relay No.2, PTC Relay No.3
15 25 Gasoline (execept SRT8): Fuel Injector, Ignition Coil, Ignition Capacitor, Short Runner Valve Solenoid (3.5L)
20 ’05: Fuel Injector, Ignition Coil, Ignition Capacitor
20 SRT8: Fuel Injector, Ignition Coil, Ignition Capacitor
25 Diesel: Engine Control Module, Glow Plug Module, Oxygen Sensor, Intake Swirl Servo Motor, Crankcase Vent Heater, EGR Valve, Boost Pressure Servo Motor, Air Conditioner Compressor Clutch, Fuel Pump Relay,
16 15 Diesel: Engine Control Module
20 ’05: Powertrain Control Module
17 30 ABS
18 30 Wiper On/Off Relay
19 50 Radiator Fan (High) Relay, Radiator Fan Control (High/Low) Relay, Front Control Module
20 20 Starter Relay
21 50 ABS
22 40 Radiator Fan Control Relay, Air Conditioner Compressor Clutch
23 50 HID: High Intensity Discharge Lamp Relay (Fuse (Engine Compartment): “1”, “2”)
24 60 AWD/SRT/Diesel: Fan Radiator
25 30 Front Control Module
26 20 RLE: Transmission Control Relay
20 Diesel: Air Conditioner Compressor Clutch Relay
27 30 Front Control Module
Relay
R1 Horn
R2 Gasoline: Air Conditioner Compressor Clutch
R3 Radiator Fan Control (High/Low)
R4 Radiator Fan (High)
R5 Wiper On/Off
R6 RLE: Transmission Control
R7 Radiator Fan Control
R8 Wiper High/Low
R9 Starter
R10 Adjustable Pedals (except Memory)
R11 Park Lamp
R12 Front Fog Lamp
R13 Auto Shut Down
R14 High Intensity Discharge Relay
R15  –

Relay Box (Diesel)

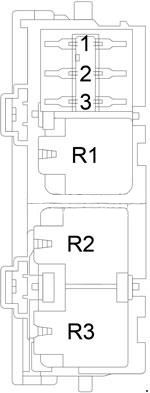

Chrysler 300/300M - fuse box diagram - relay box
Chrysler 300/300M – fuse box diagram – relay box
No. A
 Protected Component
1 50 PTC No.1 Relay
2 50 PTC No.2 Relay
3 50 PTC No.3 Relay
Relay
R1 PTC No.3
R2 PTC No.2
R3 PTC No.1

Relay Box (Police)

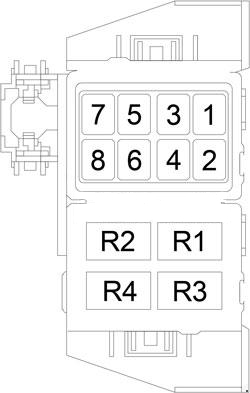

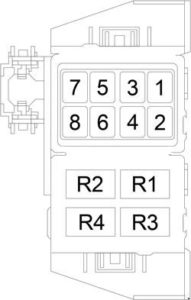

Chrysler 300/300M - fuse box diagram - relay box (police)
Chrysler 300/300M – fuse box diagram – relay box (police)
No. A
 Protected Component
1 20 Police Accessories
2 20 Police Relay No.1 (Police Accessories)
3 20 Police Accessories
4 20 Police Relay No.3 (Police Accessories)
5 20 Police Accessories
6 20 Police Relay No.2 (Police Accessories)
7 –  –
8 –  –
Relay
R1 Police No.1
R2 Police No.3
R3 Police No.2
R4  –

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
