Chrysler Horizon (1982 – 1984) – fuse box diagram
Year of production: 1982, 1983, 1984

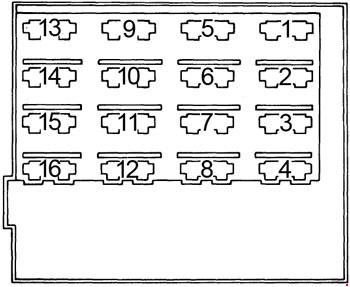

Fuse box
| № |
A |
Protected Component |
| 1 | 20 | Hazard flashers |
| 2 | 3 | Speed control on all, Heated rear window relay (except Rampage) |
| 3 | 20 | Air conditioning radiator fan motor |
| 4 | 20 | Heater blower motor |
| 30 | Air conditioning blower motor | |
| 5 | – | – |
| 6 | 20 | Dome, map, glove box, cargo and stop lights. Ignition switch time delay relay, key in buzzer, clock, cigar lighter and anti-dieseling relay |
| 7 | 20 | Horn, horn relay, parking lights, side markers, license and tail lights |
| 8 | – | – |
| 9 | – | – |
| 10 | – | – |
| 11 | 5 | Seat belt and brake warning, temperature, oil and fuel lights, voltage limiter and anti-dieseling relay coi |
| 12 | – | – |
| 13 | 3 | Instrument lights, air conditioning/heater control light, heated rear window control light, rear wiper/washer or hatch release control light, ash tray light, radio light and console gear selector light |
| 14 | 6 | Circuit breaker: 4-Door: Rear wiper/washer |
| 2-Door: Hatch release solenoid | ||
| 15 | 5 | Radio |
| 16 | 20 | Back-up and turn signal lights, air conditioning clutch, tachometer and heated rear window relay, idle stop solenoid and radiator fan relay coil |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
