Chrysler Lebaron (1981 – 1983) – fuse box diagram
Year of production: 1981, 1982, 1983

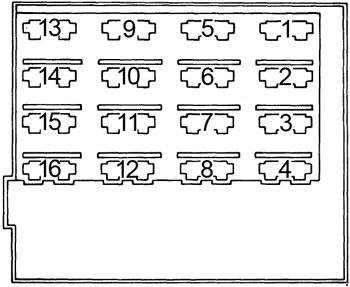

Fuse box
| № |
A |
Protected Component |
| 1 | 20 | Hazard flasher |
| 2 | 5 | Speed control, defogger relay, door ajar indicator, low washer fluid indicator, low fuel indicator, cornering, trunk and tailgate ajar lights |
| 3 | 30 | Circuit Breaker: Power windows |
| 4 | 25 | Heater blower motor |
| 30 | Air conditioning blower motor | |
| 5 | 20 | Parking, tail, license, side marker, clock, instrument cluster and radio lights |
| 6 | 20 | Stop, dome, map, trunk, cargo, vanity and ignition switch lights. Time delay relay and door courtesy lights |
| 7 | 20 | Glove box light, horns, horn relay, cigar lighter, clock, radio memory, liftgate ajar warning, key in/headlamp on warning |
| 8 | 30 | Circuit Breaker: Power door locks and seats |
| 9 | 20 | Right spotlight (fleet vehicles only) |
| 10 | 20 | Left spotlight (fleet vehicles only) |
| 11 | 5 | Brake warning, seat belt warning and low fuel sensor, engine warning and electronic voltage lights, fuel gauge, voltage limiter, voltmeter, temperature and oil gauge |
| 12 | 20 | Air conditioning radiator fan motor |
| 13 | 3 | Cluster, air conditioning and heater lights, console gear light, defogger, rear wiper/washer, radio lights and clock display dimming |
| 14 | 6 | Circuit Breaker: Deck lid release, liftgate release, rear wiper/washer and speaker relay |
| 15 | 5 | Radio, clock display and speaker relay sense |
| 16 | 20 | Back-up and turn signal lights, air conditioning clutch and idle stop solenoid, air conditioning fan relay coil |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
