Chrysler Neon – fuse box diagram – passenger compartment

12 January 2021 admin Chrysler, Noen 0

Year of production: 1999, 2000, 2001, 2001, 2002, 2003, 2004, 2005

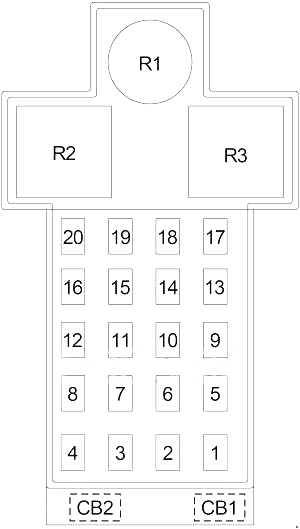

Passenger Compartment Fuse Box

Chrysler Neon - fuse box diagram - passenger compartment
Chrysler Neon – fuse box diagram – passenger compartment
No.
 A
 Circuit Protected
1 10 Power Mirror Switch, Multi-Function Switch (Combination Flasher)
2 10 ’99-’04: Radio
20 ’04-’05: Wiper Motor, Wiper/Washer Switch
3 20 Sunroof, Map/Reading Lamps (’04-’05), Radio (’04-’05)
4 10 ’99-’00: Wiper Motor, Wiper/Washer Switch
20 ’01-’04: Wiper Motor, Wiper/Washer Switch
15 ’04-’05: Radio, Dome Lamp, Visor/Vanity Lamp, Intrusion Sensor, Underhood Lamp, Siren (Export), Cargo Lamp, Compass/Temperature Mirror, Remote Keyless Entry Module (Export), Instrument Cluster, Sentry Key Immobilizer Module
5 10 LHD: Airbag Control Module
10 RHD (’04-’05): Left Headlamp, Right Headlamp, Instrument Cluster
6 20 LHD: A/C Heater Blower Motor
10 RHD: Back-Up Lamp Switch (Manual Transmission), Park/Neutral Position Switch (Automatic Transmission (’99-’04)), Brake Shift Interlock Solenoid (’99-’04), Rear Window Defogger Switch, A/C Cycling Switch, Driver/Passenger Power Window Switch, Power Mirror Switch (’99-’04), Driver/Passenger Door Lock Switch (’99-’04), Compass/Temperature Mirror (’04-’05), Transmission Range Sensor (’04-’05)
7 10 LHD: Back-Up Lamp Switch (Manual Transmission), Park/Neutral Position Switch (Automatic Transmission (’99-’04)), Brake Shift Interlock Solenoid (’99-’04), Rear Window Defogger Switch, A/C Cycling Switch, Driver/Passenger Power Window Switch, Power Mirror Switch (’99-’04), Driver/Passenger Door Lock Switch (’99-’04), Compass/Temperature Mirror (’04-’05), Transmission Range Sensor (’04-’05), Daytime Running Lights (Low) Relay (’04-’05)
20 RHD: A/C Heater Blower Motor
8 10 RHD: Airbag Control Module
15 LHD (’04-’05): Left Headlamp, Right Headlamp, Instrument Cluster
9 10 LHD: Airbag Control Module, Left/Right Side Impact Airbag Control Module (’04-’05)
10 RHD (’04-’05): Instrument Cluster, Powertrain Control Module (2.0L), Autostick Switch
10 15 LHD: Leak Detection Pump (except Export (’99-’04)), Powertrain Control Module, Torque Converter Clutch Solenoid (Automatic Transmission (’99-’04)), Fuel Pump Relay, Air Conditioner Compressor Clutch Relay, ABS, Radiator Fan Relay, Brake Shift Interlock Solenoid (’04-’05), Radiator Fan Low Relay (2.4L Turbo (’04-’05)), Radiator Fan High Relay (2.4L Turbo (’04-’05)), Throttle Inlet Pressure Solenoid (2.4L Turbo (’04-’05))
10 RHD: Instrument Cluster, Remote Keyless Entry Module, Sentry Key Immobilizer Module
11 10 LHD: Instrument Cluster, Remote Keyless Entry Module, Sentry Key Immobilizer Module
15 RHD: Powertrain Control Module, Torque Converter Clutch Solenoid (Automatic Transmission (’99-’04)), Fuel Pump Relay, Air Conditioner Compressor Clutch Relay, ABS, Radiator Fan Relay, Brake Shift Interlock Solenoid (’04-’05)
12 10 RHD: Airbag Control Module, Left/Right Side Impact Airbag Control Module (’04-’05)
10 LHD (’04-’05): Instrument Cluster, Powertrain Control Module (2.0L), Autostick Switch
13 20 ’01-’05: Power Seat Switch
14 20 Remote Keyless Entry Module
15 15 Headlamp Switch (Radio, Tail/Stop/Turn Signal Lamp (except Export), Park/Turn Signal Lamp (except Export), Front Side Marker Lamp (except Export), License Lamp, Tail/Stop Lamp (Export), License Lamp, Instrument Cluster, Remote Keyless Entry Module, City Lamp (Export)), Left/Right Lavalier Module (Export (’04-’05))
16 5 ’99-’04: Remote Keyless Entry Module
25 ’04-’05: Daytime Running Lights (High) Relay, Headlamp Switch, Headlamp Beam Select
17 10 Left Headlamp, Headlamp Leveling Switch (Export)
18 10 Right Headlamp, Left/Right Lavalier Module (Export (’04-’05))
19 10 LHD: Instrument Cluster, Front Fog Lamp
20 10 ’99-’04: Power Mirror
10 RHD (’04-’05): Power Mirror
CB1 30 ’99-’04: Power Window
20 ’04-’05: Power Window
CB2 25 ’99-’04: Headlamp Switch, Headlamp Beam Select
Relay
R1  –
R2 ’04-’05: Daytime Running Lights (Low)
R3 ’04-’05: Daytime Running Lights (High)

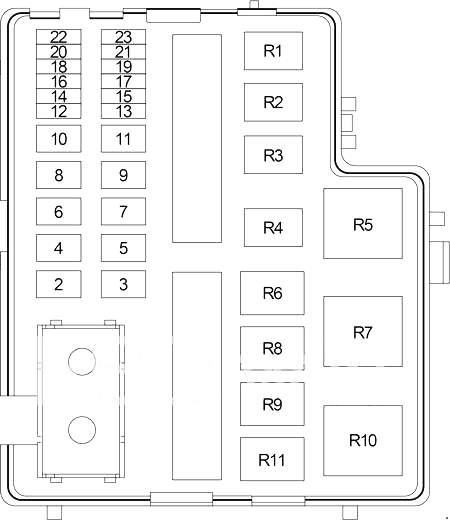

Engine Compartment Fuse Box

Chrysler Neon - fuse box diagram - engine compartment
Chrysler Neon – fuse box diagram – engine compartment
No.
 A
 Circuit Protected
2 –  –
3 40 Fuse (Passenger Compartment): “13”, “14”, “15”, “16”, “CB2”
4 40 Ignition Switch (Fuse (Passenger Compartment): “5”, “6”, “7”, “8”, “CB1”)
5 30 ABS
6 30 Radiator Fan Relay, Radiator Fan Relay No.2 (2.0L EATX)
30 2.0L Turbo (’04-’05): Radiator Fan Low Relay, Radiator Fan High Relay
7 –  –
8 40 ABS
9 30 Starter Relay, Ignition Switch (Fuse (Passenger Compartment): “1”, “2”, “3”, “4”, “9”, “10”, “11”, “12”)
10 40 Rear Window Defogger Switch, (Fuse (Passenger Compartment): “20”)
11 –  –
12 –  –
13 15 ’99-’04: Dome Lamp, Map/Reading Lamps, Visor/Vanity Lamp, Intrusion Sensor, Underhood Lamp, Siren (Export), Cargo Lamp, Radio, Glove Box Lamp and Switch, Remote Keyless Entry Module (Export), Instrument Cluster, Sentry Key Immobilizer Module
20 ’04-’05: Radio, (Fuse (Passenger Compartment): “4”)
14 20 Cigar Lighter/Power Outlet
15 15 Multi-Function Switch (Combination Flasher)
16 15 2.0L RT (’01-’05): Manifold Tuning Valve Relay
17 20 ’01-’05: Transmission Control Relay
15 2.0L Turbo (’04-’05): Subwoofer
18 15 ’99-’04: Horn Relay
10 2.0L (’04-’05): Horn Relay
15 2.0L Turbo (’04-’05): Horn Relay
19 –  –
20 25 Multi-Function Switch (Headlamp Switch (Fog Lamp))
21 20 Fuel Pump Relay, Automatic Shut Down Relay (Fuel Injector, Ignition Coil, Oxygen Sensor, Generator, Noise Suppressor), Data Link Connector, Powertrain Control Module, Surge Solenoid (2.4 Turbo (’04-’05))
22 20 ’99-’00: Air Conditioner Compressor Clutch Relay
10 ’01-’05: Air Conditioner Compressor Clutch Relay
23 15 Stop Lamp Switch (ABS, Tail/Stop Lamps (Export), Tail/Stop/Turn Signal Lamps (except Export), Center High Mounted Stop Lamp)
Relay
R1 Fuel Pump
R2 2.0 L RT (’04-’05): Manifold Tuning Valve
R3  –
R4 ’04-’05: Transmission Control
R5 2.4 Turbo (’04-’05): Radiator Fan Control
R6 Horn
R7 Radiator Fan
2.4 Turbo (’04-’05): Radiator Fan High
R8 Automatic Shut Down
R9 Air Conditioner Compressor Clutch
R10 2.4 Turbo (’04-’05): Radiator Fan Low
2.0L (EATX): Radiator Fan (No.2)
R11 Starter

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
