Chrysler Pacifica (2004 – 2008) – fuse box diagram
Year of production: 2004, 2005, 2006, 2007, 2008

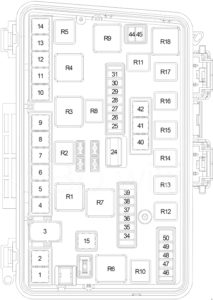

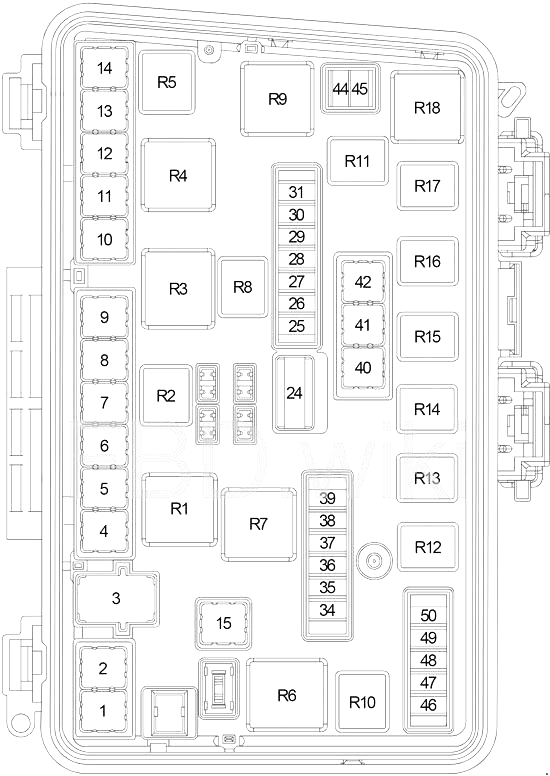

Fuse box diagram
| No. | A |
Protected Component |
| 1 | 40 | ABS |
| 2 | – | – |
| 3 | 30 | Fuse: “46”, “47”, “48”, “49”, “50” |
| 4 | 40 | Body Control Module |
| 5 | 40 | Rear Window Defogger Relay |
| 6 | 30 | Front Wiper (On/Off) Relay (Front Wiper (High/Low) Relay) |
| 7 | 40 | Starter Relay |
| 8 | 40 | Circuit Breaker – Power Seat |
| 9 | 40 | Power Sunroof Module |
| 10 | 30 | Trailer Tow Connector |
| 11 | 40 | Power Liftgate Module |
| 12 | – | – |
| 13 | 40 | Radiator Fan Relay |
| 14 | – | – |
| 15 | 40 | ABS |
| 24 | 20 | Rear Power Outlet |
| 25 | 15 | Radio, Audio Amplifier, Navigation Module, Hands Free Module, Overhead Console, Automatic Day/Night Mirror, Power Sunroof Module |
| 26 | 20 | Cigar Lighter/Power Outlet – Front Console |
| 27 | – | – |
| 28 | 25 | Horn Relay |
| 29 | 20 | Stop Lamp Switch, Instrument Cluster |
| 30 | 10 | Ignition Switch (Skreem Module, Park Assist Module, Body Control Module, Instrument Panel Switch POD, Starter Relay, Powertrain Control Module, Air Conditioner Compressor Clutch Relay, Fuel Pump Relay) |
| 31 | 20 | Body Control Module |
| 34 | 10 | Rear Booster Fan Control Module |
| 35 | – | – |
| 36 | 20 | Transmission Control Relay (Transmission Solenoid/Pressure Switch, Powertrain Control Module) |
| 37 | 25 | Auto Shut Down Relay (Powertrain Control Module, Injector, Ignition Coil, Short Runner Valve Solenoid (3.5L), Noise Suppressor) |
| 38 | 20 | Manifold Tuning Valve Relay (3.5L), Air Conditioner Compressor Clutch Relay |
| 39 | 20 | Fuel Pump Relay, Powertrain Control Module |
| 40 | 40 | Driver Door Module (Power Window, Power Mirror, Power Seat) |
| 41 | 40 | Passenger Door Module (Power Window, Power Mirror) |
| 42 | 40 | Front Blower Power Module (ATC), Blower Motor Resistor Block (MTC) |
| 44 | 25 | Seat Heater Interface Modue, Heated Seat Switch – Left/Right Middle Row |
| 45 | 10 | ABS, A/C Heater Control (MTC), Auto Temp Control (ATC) |
| 46 | 20 | Passenger Door Module (Power Window, Door Lock, Power Mirror, Courtesy Lamp) |
| 47 | 20 | Driver Door Module (Power Window, Door Lock, Power Mirro, Power Seat, Courtesy Lamp) |
| 48 | 15 | Body Control Module, Navigation Module, Overhead Console, Hands Free Module |
| 49 | 25 | Adio Amplifier |
| 50 | 15 | Radio, Skreem Module, Instrument Panel Switch POD, Auto Temp Control, DVD/CD Changer, Satellite Radio |
| PTC | ||
| 1 | 13 | Power Outlet – Instrument Panel, Data Link Connector |
| Relay | ||
| R1 | Rear Window Defogger | |
| R2 | Transmission Control | |
| R3 | Run | |
| R4 | – | |
| R5 | Fuel Pump | |
| R6 | Door Node | |
| R7 | Starter | |
| R8 | – | |
| R9 | Front Blower Motor | |
| R10 | Rear Booster Fan | |
| R11 | Horn | |
| R12 | Auto Shut Down | |
| R13 | Air Conditioner Compressor Clutch | |
| R14 | – | |
| R15 | 3.5L: Manifold Tuning Valve | |
| R16 | Front Wiper (On/Off) | |
| R17 | Front Wiper (High/Low) | |
| R18 | Accessory | |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
