Year of production: 2001, 2002, 2003, 2004, 2005
Underhood fuses (Power Distribution Center)

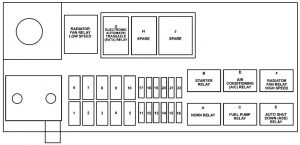

power distribution center
Power Distribution Center is located in the engine compartment (next to the air cleaner filter). A label identifying the components and circuits is located on the underside of the cover.
| Fuse | Ampere/Color | Description |
| 1 | 30 Amp/Pink | Ignition Start |
| 2 | 40 Amp/Green | Anti-Lock Brake (ABS) Pump |
| 3 | 40 Amp/Green | Ignition Run |
| 4 | 30 Amp/Blue | Heated Seats |
| 5 | 40 Amp/Green | Radiator Fan |
| 6 | 20 Amp/Blue | Power Height Adjuster |
| 7 | 30 Amp/Blue | Anti-Lock Brake (ABS) Solenoid |
| 8 | 40 Amp/Green | Electric Back Light (EBL) |
| 9 | — | Spare |
| 10 | 40 Amp/Green | Exterior Lighting, Remote Keyless Entry, Alarm and Door Locks |
| 11 | 10 Amp/Red | Air Conditioning (A/C) |
| 12 | 15 Amp/Lt. Blue | Stop Lights |
| 13 | 20 Amp/Blue | Fuel Pump/Auto Shut Down (ASD) |
| 14 | 15 Amp/Lt. Blue | Horn |
| 15 | 20 Amp/Blue | Electronic Automatic Transaxle (ETAX) |
| 16 | 15 Amp/Lt. Blue | Hi Beam |
| 17 | 20 Amp/ Yellow | Ignition Off Draw (IOD) |
| 18 | 15 Amp/Lt. Blue | Hazard |
| 19 | 20 Amp/ Yellow | Power Outlets |
| 20 | — | Spare |
| 21 | 20 Amp/ Yellow | Fog Lights (Build-Up Export Only |
| 22 | — | Spare |
Interior Fuses
The fuse access panel is on the left side of the instrument panel next to the steering column. A label identifying the components and circuits is located on the inside of the cover.
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
