Citroen C2 (2003 – 2009) – fuse box diagram

Citroen C2 (2003 – 2009) – fuse box diagram

Year of production: 2003, 2004, 2005, 2006, 2007, 2008, 2009

Fuse box under dashboard

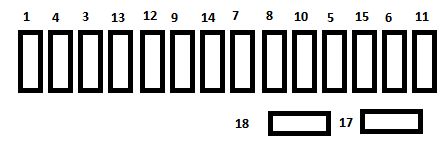

Citroen C2 - fuse box diagram - under dashboard
Citroen C2 – fuse box diagram – under dashboard
Fuse Ampere rating [A] Function
3 5 Airbags
4 10 Diagnostic socket, particle filter additive, clutch switch, steering angle sensor
5 30
6 30 Screen wash
8 20 Digital clock, controls at the steering wheel, radio, display
9 30 Cigar-lighter, digital clock, interior lamps, vanity mirror
10 15 Alarm
11 15 Ignition switch, diagnostic socket
12 15 Airbag ECU, rain and brightness sensor
14 15 Parking assistance, instrument panel, air conditioning, bluetooth® telephone
15 30 Central locking, deadlocking
17 40 Demisting – deicing of the rear screen
18 SHUNT CUSTOMER PARK SHUNT

Fuse box in engine compartment

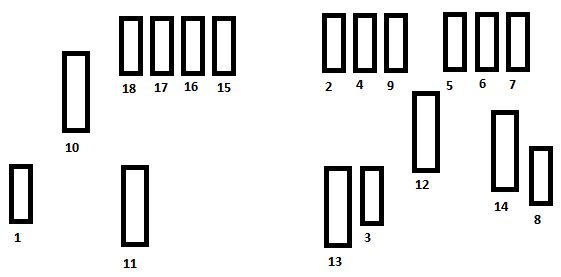

Citroen C2 - fuse box diagram - engine compartment
Citroen C2 – fuse box diagram – engine compartment
Fuse Ampere rating [A] Function
1 20 Water-in-diesel-fuel sensor
2 15 Horn
3 10 Screen wash
4 20 Headlamp wash
5 15 Fuel pump
6 10 Power steering
7 10 Coolant level sensor
8 25 Starter
9 10 ECUs (ABS, ESP)
10 30 Engine control actuators (Ignition coil, Electrovalve, Oxygen sensor, Injection), Canister purge
11 40 Air blower
12 30 Windscreen wiper
14 30 Air pump (petrol version), Diesel fuel heater

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market
