Citroen C4 (2004 – 2010) – fuse box diagram

5 June 2018 admin C4, Citroen 0

Citroen C4 (2004 – 2010) – fuse box diagram

Yesr of production: 2004, 2005, 2006, 2007, 2008, 2009, 2010

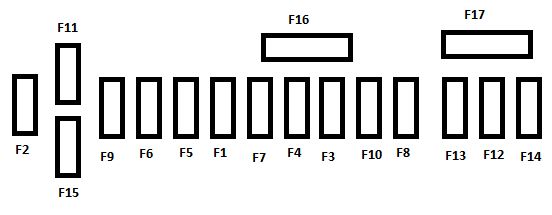

Fuse box under the dashboard

Citroen C4 - fuse box diagram - under dashboard
Citroen C4 – fuse box diagram – under dashboard
Number Ampere rating [A] Function
F1 15 Central locking
F2 30 Central locking, deadlocking
F3 5 Airbags and pretensioners
F4 10 Diagnostic socket, brake switch, photochromic rear view mirror, ESP, coolant level sensor, diesel fuel additive system, power steering Clutch pedal switch (ESP, cruise control and speed limiter)
F5 30 Electric front windows, heated exterior rear view mirrors
F6 30 Electric rear windows
F7 5 Interior lighting
F8 20 Audio system, NaviDrive, display, alarm, front 12V socket, trailer relay unit, driving school module
F9 30 Cigar lighter, rear 12V socket
F10 15 Tyre pressure sensor – Auto, STOPLAMP switch
F11 15 Ignition, diagnostic socket, particle filter
F12 15 Electric seat, lane wandering alert, parking assistance
F13 5 Rain sensor, sunlight sensor, (6 speed) Electronic Gearbox System, engine relay unit
F14 15 Air conditioning, instrument panel, tachometer, airbags and pretensioners, trailer relay unit, bluetooth telephone
F15 30 Central locking, deadlocking
F16 SHUNT
F17 40 Heated rear screen
Citroen C4 - fuse box diagram - under dashboard
Citroen C4 – fuse box diagram – under dashboard
Number Ampere rating [A] Function
F36 20 Hi Fi amplifier
F37 30 Front left hand electric seat
F39 20 Heated seats

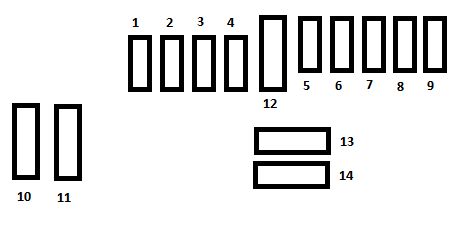

Fuse box  in engine compartment

Citroen C4 - fuse box diagram - engine compartment
Citroen C4 – fuse box diagram – engine compartment
Number Ampere rating [A] Functions
F1 20 ECU engine management, cooling fan
F2 15 Warning
F3 10 Windscreen and rear screen wash
F4 20 Headlamp washer
F5 15 Fuel pump
F6 10 Auto,  Xenon lamps, directional headlamps, canister purge electrovalve (2.0 16V engine)
F7 10 ABS ECU/ESP ECU, power steering
F8 20 Starter
F9 10 Additional heating control unit (Diesel), engine coolant level switch
F10 30 Engine electrovalve, water-in-diesel-fuel sensor, ECU engine management, injectors, ignition coil, oxygen sensor, canister purge electrovalve (1.4 16V and 1.6 16V engines)
F11 40 Air blower, air conditioning
F12 30 Windscreen wiper
F13 40 Built-in Systems Interface

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
