Citroën Jumpy (2007 – 2016) – fuse box diagram
Year of production: 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016
Location
The three fuse boxes are placed:
– in the fascia panel on the right-hand side (behind the storage compartment, retractable)
Tilt the storage compartment then pull it firmly to access the fuses.
– in the passenger compartment (battery compartment)
Unclip the battery compartment cover, remove the red battery terminal (+).
– under the bonnet
After opening the bonnet, slide the screenwash support to make access easier; unclip and tilt the box to access the fuses.

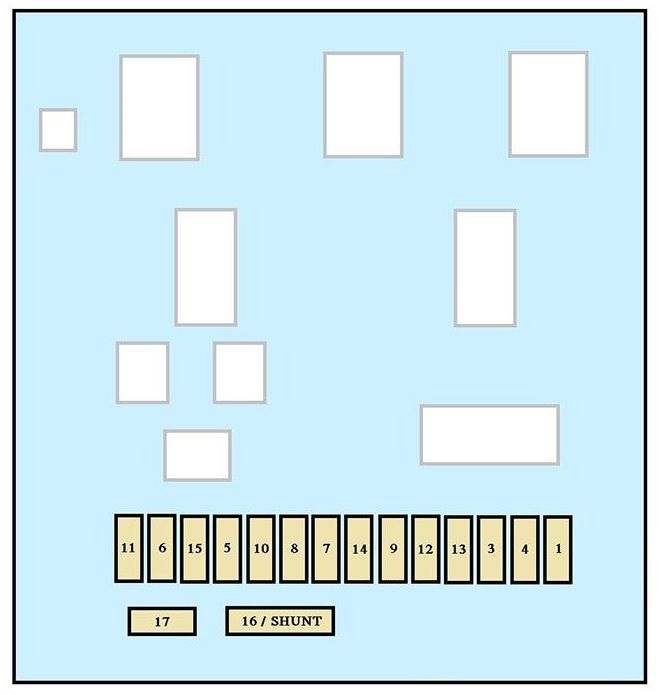

Dashboard fuse box
Fuses | A | Protected component |
1 | 15 | Rear wiper |
2 | – | Free |
3 | 5 | Airbag control unit |
4 | 10 | Steering wheel angle sensor, Diagnostic socket, ESP sensor, Manual ventilation, Clutch switch, Headlamp beam height, Particle emission filter pump |
5 | 30 | Electric mirrors, Passenger electric window motor |
6 | 30 | Front electric windows supply |
7 | 5 | Courtesy lamps and glove box lamp |
8 | 20 | Multifunction screen, Anti-theft alarm siren, Audio equipment, Compact disc changer, Audio/telephone, Trailer fusebox (accessory), Coachbuilder/vehicle converter unit (platform cab) |
9 | 10 | Load space accessory socket |
10 | 30 | Rear ride height corrector, Steering wheel switching, Instrument panel |
11 | 15 | Diagnostic socket, Ignition switch |
12 | 15 | Hands-free kit, Airbag control unit, Parking sensors control unit |
13 | 5 | Engine fusebox, Trailer fusebox |
14 | 15 | Rain sensor, Digital air conditioning, Instrument panel |
15 | 30 | Locking/unlocking/deadlocking |
16 | – | Free |
17 | 40 | Heated rear screen, Heated mirrors |
17 | 10 | Heated mirrors only |
Passenger compartment fuses
Fuses | A | Protected component |
1 | 30 | Heated seats |
2 | 20 /- | Battery state of charge unit/Free |
3 | 40/50 | Trailer fuse box (accessory) / Coachbuilder/vehicle modifier unit (platform cab) |
4 | – | Free |
36 | 15 | Hinged door locks |
37 | 10 | Hinged door locks |
38 | 20 | Hinged door rear wiper |
39 | – | Free |
40 | 5 | Folding door mirrors |
Fuse box diagram (towing/towbar/coachbuilders/platform CAB fuses)
Fuses | A | Protected component |
1 | 15 | Free |
2 | 15 | Ignition relay and optional generator |
3 | 15 | Trailer 12V supply |
4 | 15 | Permanent supply for vehicle converters |
5 | 10 | Hazard warning lamps |

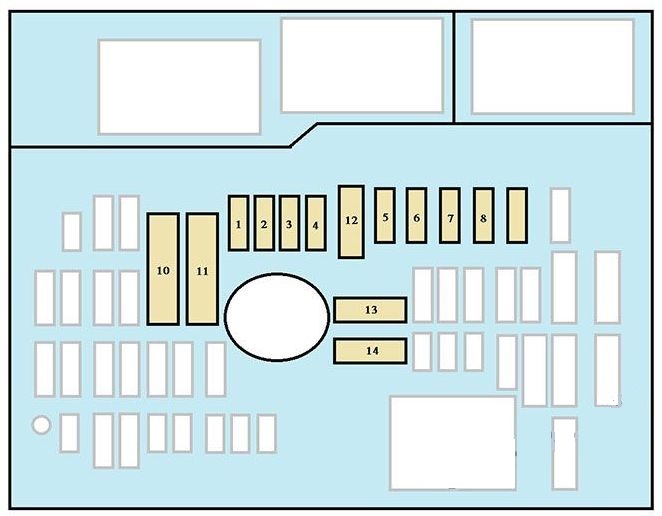

Engine compartment fuse box
Fuses | A | Protected component |
1 | 20 | Engine control unit, Fuel supply and air supply systems, Fan assembly |
2 | 15 | Horn |
3 | 10 | Front and rear screenwash pump |
4 | 20 | Headlamp wash pump |
5 | 15 | Fuel supply system |
6 | 10 | Power steering, Secondary brake pedal switch |
7 | 10 | Braking system (ABS/DSC) |
8 | 20 | Starter motor control |
9 | 10 | Main brake pedal switch |
10 | 30 | Fuel supply and air supply systems, Emissions control systems |
11 | 40 | Front ventilation |
12 | 30 | Windscreen wipers |
13 | 40 | Built-in systems interface |
14 | 30 | Free |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
