Citroen Xantia (1992 – 1997) – fuse box diagram
Year of production: 1992, 1993, 1994, 1995, 1996, 1997

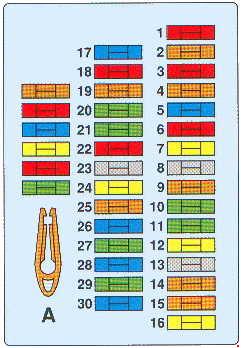

Passenger Compartment Fuse Box
| Fuse | Ampere Rating [A] | Description |
| F1 | 10 | Radio and CD player (via ignition or battery direct, depending on fuse position) |
| F2 | 5 | Coded anti-theft keypad, instrument panel lighting rheostat, instruments, “lights-on” warning system, washer fluid level sensor, automatic heating relay |
| F3 | 10 | Reversing light, cooling fan, diagnostic socket |
| F4 | 5 | Left-hand sidelight, right-hand tail light, “lights-on” warning system |
| F5 | 15 | Coolant temperature warning system |
| F6 | 10 | ABS |
| F7 | 20 | Horn relay, horn compressor |
| F8 | 30 | Supply shunt F25/F15 |
| F9 | 5 | Instruments, right-hand sidelight, left-hand tail light |
| F10 | 30 | Rear electric windows |
| F11 | 30 | Sunroof |
| F12 | 10 | Heating, air conditioning, cruise control, Hydractive suspension, alarm system, alarm siren, instruments |
| F13 | 10 | Tow bar |
| F14 | 40 | Electric seats (power) |
| F15 | 20 | Heated seats, alarm (led), boot lighting, courtesy light delay timer |
| F16 | 20 | Front cigarette lighter (via ignition or battery direct, depending on fuse position) |
| F17 | 15 | Alarm (power supply) |
| F18 | 10 | Rear foglights |
| F19 | 5 | Cigarette lighter and switch illumination |
| F20 | 30 | Heater blower (power supply) |
| F21 | 30 | Central locking |
| F22 | 20 | Tailgate wiper |
| F23 | 10 | Heated rear window switch, heated seat switches |
| F24 | 30 | Widscreen wiper, lighting, automatic gearbox |
| F25 | 5 | Radio memory, clock, diagnostic socket, CD player of cooling fan, central locking remote control |
| F26 | 15 | Hazard warning light switch |
| F27 | 30 | Heated rear window heated mirrors (power supply) |
| F28 | 15 | Sunroof control, rear window wiper isolator, direction indicators, instruments, STOP and break pad wear warning lights, ABS, cruise control |
| F29 | 30 | Front electric windows |
| F30 | 15 | Map reading lights, vanity mirror light, glovebox light, electric seat control, electric window switch, telephone |

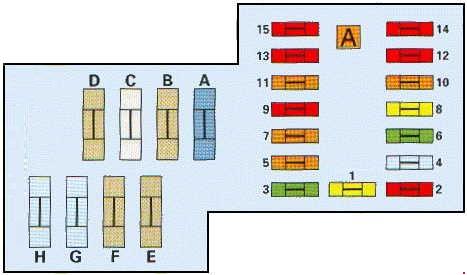

Engine Compartment Fuse Box
| Fuse | Ampere Rating [A] | Description |
| F1 | 20 | ABS |
| F2 | 10 | Telephone |
| F3 | 30 | Cooling fan |
| 40 | ||
| F4 | — | — |
| F5 | 5 | Cooling fan |
| F6 | 30 | Headlight wash timer, front foglights |
| F7 | 5 | Fuel injection |
| F8 | 20 | Hydractive suspension |
| F9 | 10 | Fuel pump relay |
| F10 | 5 | Headlight washers |
| F11 | 5 | Oxygen sensor relay |
| F12 | 10 | Left-hand headlight main beam |
| F13 | 10 | Right-hand headlight main beam |
| F14 | 10 | Left-hand headlight dipped beam |
| F15 | 10 | Right-hand headlight dipped beam |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market
