Daewoo Lanos (1999 – 2002) – fuse box diagram
Year of production: 1999, 2000, 2001, 2002

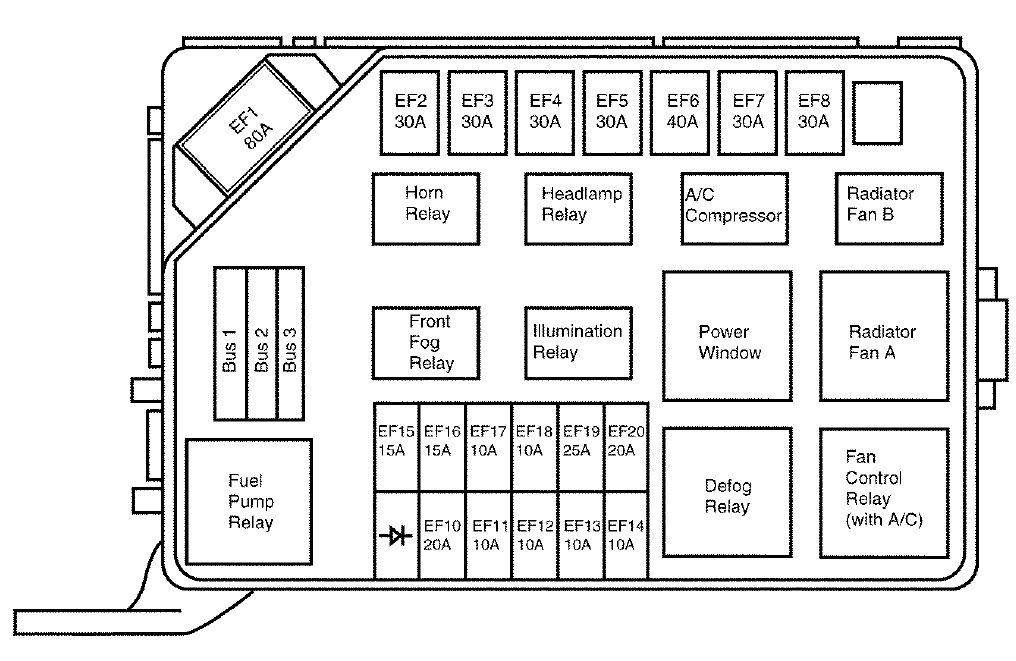

Engine compartment fuse box
Passenger compartment fuse box
Fuse chart
| Fuse number | Ampere rating [A] | Source | Circuit protected |
| EF1 (Engine Fuse) | 80 | BAT | Engine Fuses EF15 to EGF20 and Fuses F1 to F7 |
| EF2 | 30 | BAT | Ignition Switch, ACC (F9 and F10) and IGN 1 (F11 to F17) |
| EF3 | 30 | BAT | Ignition Switch, START and IGN2 (F18, F19, F20) |
| EF4 | 30 | BAT | Radiator Fans |
| EF5 | 30 | BAT | Power Windows, Sunroof Module |
| EF6 | 40 | BAT | Antilock Brakes |
| EF7 | 30 | BAT | Rear Window Defogger |
| EF8 | 30 | BAT | Hi Blower |
| EF10 | 20 | EF19 | Headlamp Hi Beam |
| EF11 | 10 | EF19 | Headlamp Lo Beam (Left Side) |
| EF12 | 10 | EF19 | Headlamp Lo Beam (Right Side) |
| EF13 | 10 | EF20 | Tail and Illumination Lamps (Left Side) |
| EF14 | 10 | EF20 | Tail and Illumination Lamps (Right Side) |
| EF15 | 15 | EF1 | Front Fog Lamp |
| EF16 | 15 | EF1 | Fuel Pump Relay |
| EF17 | 10 | EF1 | Horn, Anti-Theft Siren |
| EF18 | 10 | EF1 | A/C Compressor |
| EF19 | 25 | EF1 | Hi Beam Passing, Daytime Running Lamps |
| EF20 | 20 | EF1 | EF13, EF14 |
| F1 (Fuse) | 10 | EF1 | Interior courtesy Lamp, Luggage Compartment Lamp, ESDS |
| F2 | 10 | EF1 | Clock, Door Open Warning, DLC, Headlamp Combinantion Switch, Key Reminder Switch |
| F3 | 15 | EF1 | Hazard Lamp |
| F4 | 15 | EF1 | Door Lock, Keyless Entry Module |
| F5 | 10 | EF1 | ABS, PCM/ECM |
| F6 | 10 | EF1 | Audio |
| F7 | 15 | EF1 | Stoplamp, Center Highj-Mounted Stoplamp |
| D8 (Diode) | |||
| F9 | 10 | ACC | Audio, Key Interlock system |
| F10 | 15 | ACC | Cigar Lighter |
| F11 | 10 | IGN 1 | Instrument Cluster, Clock, Daytime Running Lamps, Chime Module |
| F12 | 10 | IGN 1 | Backup Lamp, Keyless Entry Module |
| F13 | 15 | IGN 1 | Supplemental Inflatable Restraints |
| F14 | 15 | IGN 1 | Injectors, Generator, EGR Valve, Vehicle Speed Sensor, EVAP Canister Purge Valve, Post-Converter Oxygen Sensor, Camshaft Position Sensor, PCM/ECM |
| F15 | 15 | IGN 1 | Ignition Control Module |
| F16 | 15 | IGN 1 | Turn Signal Lamp, Electric Outside Rearview Mirrors |
| F17 | 15 | IGN 1 | PCM/ECM, ABS Warning Lamp, Variable Geometry Induction Solenoid |
| F18 | 20 | IGN 2 | Wiper/Washer System |
| F19 | 10 | IGN 2 | Power Window Relay, A/C Compressor Relay, Radiator Fan Relays, Defogger relay, ABS Relay, Sunroof switch |
| F20 | 20 | IGN 2 | Blower Position 1,2,3 |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
