Daewoo Tico (1992) – fuse box diagram

Daewoo Tico (1992) – fuse box diagram

Year of production: 1992

Fuse box

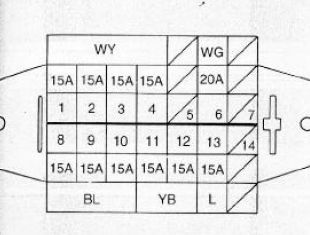

Daewoo Tico – fuse box diagram

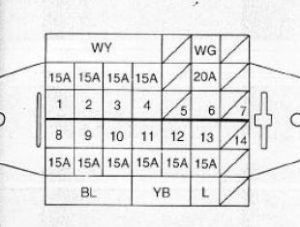

Daewoo Tico – fuse box diagram

Daewoo Tico – fuse box diagram – main fuse
Daewoo Tico – fuse box diagram – main fuse
A Component
1 15 Upward/downward headlight right
2 15 Upward headlight indicator, upward/downward headlight left
3 15 Brake switch room light, radio and clock
4 15 Horn, emergency warning light switch
5
6 20 Radiator motor fan relay
7
8 15 IG coil carburetor solenoid B.V.V, N.S, instrument panel, radiator fan relay
9 15 Wiper switch, motor
10 15 Backup light switch, emergency light switch, A/C V.S.V
11 15 Blower motor
12 15 Hot wire switch
13 15 Cigar lighter, cassette radio
14

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
