Daihatsu Terios – fuse box diagram
Year of production:
Passenger Compartment Fuse Box
| Number | Fuse | Ampere rating [A] | Description |
| 1 | FOG | 10 | Fog lamp SW |
| 2 | TAIL | 10 | Tail lamp, Clearance lamp, Meter illumination, Heater illumination, Warning buzzer (Reverse SW, Courtesy SW, Turn SW, Key SW, Flasher relay socket (Turn SW, Hazard SW)) |
| 3 | DEFOG | 15 | Defogger SW, Power window SW |
| 4 | POWER | 30 | Power window SW |
| 5 | GAUGE/BACK | 10 | Meter, Cowl, Back lamp SW, Warning buzzer (Reverse SW, Courtesy SW, Turn SW, Key SW, Flasher relay socket (Turn SW, Hazard SW)) |
| 6 | ENGINE | 10 | Ignition coil, Diagnosis check, Air bag ECU |
| 7 | SPARE | 10 | Spare fuse |
| 8 | SPARE | 15 | Spare fuse |
| 9 | — | — | — |
| 10 | WIPER/TURN | 20 | Front wiper motor, Hazard SW, Rear wiper SW, Rear wiper motor |
| 11 | HEATER | 20 | Heater |
| 12 | ACC | 15 | Cigarette lighter, Radio, Electric mirror, ACC (Sub), Power supply (Option) |
| 13 | H/L LH | 10 | Left−hand headlight |
| 14 | H/L RH | 10 | Right−hand headlight |
| 15 | STOP | 10 | Stop SW, Room lamp |
| 16 | ECU IG | 10 | EFI Main relay, EPS ECU |
| 17 | AIR BAG | 10 | Air bag ECU, IG SW (IG2) |
| 18 | DOORLOCK | 15 | Door lock relay |
| 19 | — | — | — |

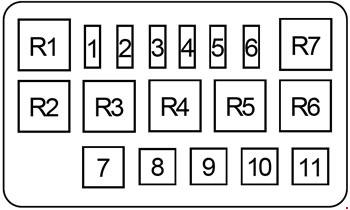

Engine Compartment Fuse Box
| Number | Fuse | Ampere rating [A] | Description |
| 1 | HTR | 20 | Heater relay |
| 2 | BACK UP | 10 | EFI ECU |
| 3 | — | — | — |
| 4 | EFI | 15 | EFI main relay, Fuel pump relay |
| 5 | HORN-HAZ | 15 | Horn, Hazard |
| 6 | MGC | 10 | Magnet clutch relay |
| 7 | AM | 60 | Ignition switch, Starter relay |
| 8 | ABS | 50 | ABS relay |
| 9 | TAIL | 40 | Tail switch |
| 11 | — | — | — |
| Relay | |||
| R1 | Fuel pump | ||
| R2 | Starter (for A/T) | ||
| R3 | Engine control unit | ||
| R4 | Heater | ||
| R5 | — | ||
| R6 | Air conditioner compressor clutch | ||
| R7 | Electric cooling fan | ||
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
