Dodge Challenger RT/SRT (from 2008) – fuse box diagram
Year of production: 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016

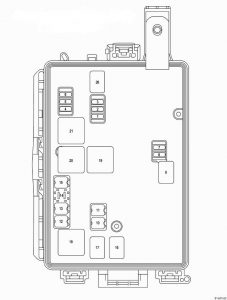

SRT8 Integrated power module (front engine bay)
| Cavity | Cartridge fuse [A] | Mini-fuse [A] | Description |
| 1 | — | 15 Blue | Washer Motor |
| 2 | — | 25 Neutral | Powertrain Control Module (PCM) |
| 3 | — | 25 Neutral | Ignition Run/Start |
| 4 | — | 25 Neutral | Alternator |
| 5 | — | — | — |
| 6 | — | 25 Neutral | Ignition Coils/Injectors |
| 7 | — | — | — |
| 8 | — | 25 Neutral | Starter |
| 9 | — | — | — |
| 10 | 30 Pink | — | Windshield Wiper |
| 11 | 30 Pink | — | Anti-lock Brake System (ABS) Valves |
| 12 | 40 Green | — | Radiator fan |
| 13 | 50 Red | — | Anti-lock Brake System (ABS) Pump Motor |
| 14 | — | — | — |
| 15 | 50 Red | — | Radiator fan |
| 16 | — | — | — |
| 17 | — | — | — |
| 18 | — | — | — |
| 19 | — | — | — |
| 20 | — | — | — |
| 21 | — | — | — |
| 22 | — | — | — |

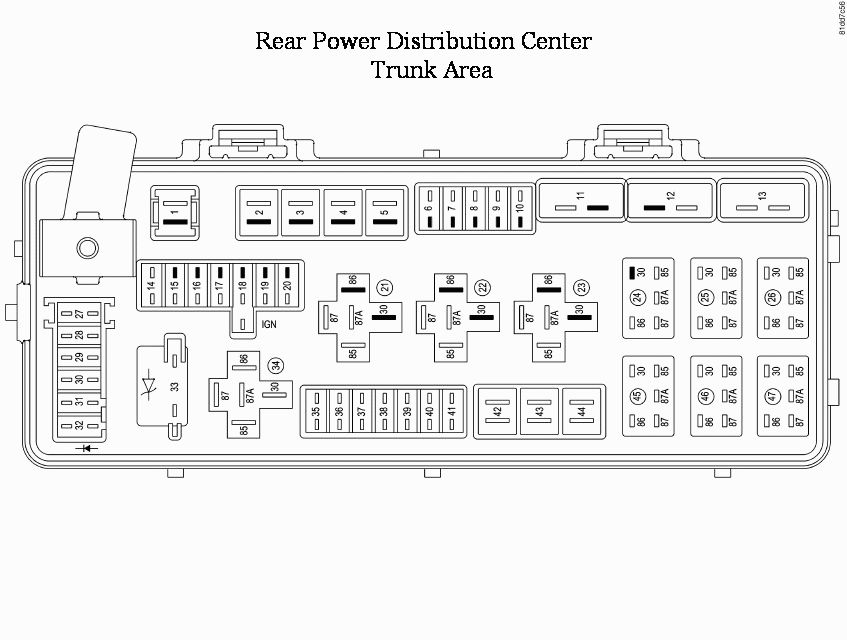

Rear power distribution center fuses – RT/SRT (trunk area)
| Cavity | Cartridge fuse [A] | Mini fuse [A] | Description |
| 1 | 60 Yellow | — | Ignition Off Draw (IOD) |
| 2 | 40 Green | — | Integrated Power Module (IPM) |
| 3 | — | — | — |
| 4 | 40 Green | — | Integrated Power Module (IPM) |
| 5 | 30 Pink | — | Heated Seats – if equipped |
| 6 | — | 20 Yellow | Fuel Pump |
| 7 | — | 20 Yellow | Sub Amp – if equipped |
| 8 | — | 15 Blue | Diagnostic Link Connector (DLC)/Wireless Ignition Node (WIN) |
| 9 | — | 20 Yellow | Power Outlet |
| 10 | — | — | — |
| 11* | — | — | — |
| 12* | — | — | — |
| 13* | — | — | — |
| 14 | — | 10 Red | AC Heater Control/Cluster/Security Module – if equipped |
| 15 | — | 20 Yellow | — |
| 16 | — | 20 Yellow | — |
| 17 | — | 20 Yellow | Cluster |
| 18 | — | 20 Yellow | Selectable Power Outlet |
| 19 | — | 10 Red | Stop Lights |
| 20 | — | — | — |
| 21 | — | — | — |
| 22 | — | — | — |
| 23 | — | — | — |
| 24 | — | — | — |
| 25 | — | — | — |
| 26 | — | — | — |
| 27 | — | 10 Red | Occupant Restraint Controller (ORC) |
| 28 | — | 10 Red | Ignition Run |
| 29 | — | 5 Orange | Cluster/Electronic Stability Program (ESP)/Powertrain Control Module (PCM)/STOP LIGHT Switch |
| 30 | — | 10 Red | Door Modules/Power Mirrors/Steering Control Module (SCM) |
| 31 | — | — | — |
| 32 | — | — | — |
| 33 | — | — | — |
| 34 | — | — | — |
| 35 | — | 5 Orange | Antenna Module – if equipped/Power Mirrors/Rain Sensor – if equipped |
| 36 | — | 20 Yellow | Hands-Free Phone – if equipped/Video Monitor – if equipped/Radio |
| 37 | — | 15 Blue | Transmission |
| 38 | — | 10 Red | Cargo Light/Vehicle Information Module – if equipped |
| 39 | — | 10 Red | Heated Mirrors – if equipped |
| 40 | — | 5 Orange | Auto Inside Rearview Mirror/Heated Seats – if equipped/Switch Bank |
| 41 | — | 10 Red | AC Heater Control/Headlights/Park Assist – if equipped/Tire Pressure Monitoring – if equipped/Occupant Restraint Controller (ORC) |
| 42 | 30 Pink | — | Front Blower Motor |
| 43 | 30 Pink | — | Rear Window Defroster |
| 44 | 20 Blue | — | Amplifier – if equipped/Sunroof – if equipped |
The Cluster (without power memory seat), the Driver Seat Switch (with power memory seat), and the Memory Module
(if equipped) are fused by the 25 amp circuit breaker in Cavity 11.
The Passenger Seat Switch is fused by the 25 amp circuit breaker in Cavity 12. The Door Modules (except base), the
Driver Door Lock Switch (base), the Driver Express Power Window Switch (if equipped), and the Passenger Door
Lock Switch (base) are fused by the 25 amp circuit breaker in Cavity 13.
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
