Dodge D/W 100 (1961 – 1965) – fuse box diagram
Year of production: 1961, 1962, 1963, 1964, 1965

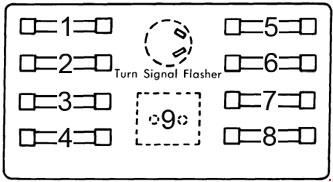

Fuse box
| № |
A |
Protected Component |
| 1 | 6 | Alternator Regulator |
| 2 | 30 | Horn |
| 3 | 15 | Turn Signal |
| 4 | 15 | Tail Light, Stop Light, Dome Light, Park Light |
| 5 | 20 | Heater |
| 6 | 6 | Radio |
| 7 | 2 | Instrument Light |
| 8 | 15 | 4-Way Flasher, Cigar Lighter |
| 9 | 8 | Circuit Breaker: Axle |
- Circuit breaker is incorporated into headlight switch. Additional circuit breaker is integral with windshield wiper switch.
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
