Dodge Dakota (1997 – 2000) – fuse box diagram
Year of production: 1997, 1998, 1999, 2000
Passenger Compartment Fuse Box

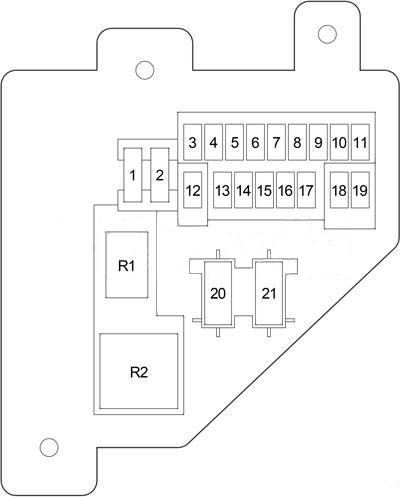

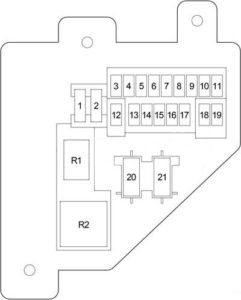

Dodge Dakota – fuse box diagram – passenger compartment
No. A Protected Component
1
20
Headlamp Flasher Relay, Air Conditioner Compressor Clutch Relay, Horn Relay, Central Timer Module (VTSS)
2
15
Park/Neutral Position Switch (Automatic Transmission), Back-Up Lamp Switch (Manual Transmission)
3
10
ABS
4
15
Instrument Cluster
5
5
A/C Heater Control, Heater Control (except A/C), Ash Receiver Lamp, Radio, Instrument Cluster
6
20
Wiper Relay, Multi-Function Switch, Central Timer Module, Wiper Motor
7
15
Blower Motor Relay, Air Conditioner Compressor Clutch Relay
8
10
Radio
9
10
Diesel: Engine Control Module, Fuel Heater Relay
10
Gasoline: Powertrain Control Module, Fuel Pump Relay, Automatic Shut Down Relay, Radiator Fan Relay
10
15
Combination Flasher
11
10
EVAP/Purge Solenoid, Overhead Console, Central Timer Module
12
15
Glove Box Lamp, Radio, Data Link Connector, Underhood Lamp/Switch, Dome Lamp, Overhead Console, Power Mirror Switch
13
20
Central Timer Switch, Power Window/Door Lock Switch
14
15
Headlamp Switch (City Lamp, Tail/Stop Lamp, License Lamp, A/C Heater Control, Heater Control (except A/C), Ash Receiver Lamp, Radio, Instrument Cluster)
15
15
Cigar Lighter
16
–
–
17
10
Instrument Cluster
18
10
Airbag Control Module
19
10
Airbag Control Module, Passenger Airbag On/Off Switch
Circuit Breaker
20
25
Power Window/Door Lock Switch
21
–
–
Relay
R1
Horn
R2
Combination Flasher
Engine Compartment Fuse Box

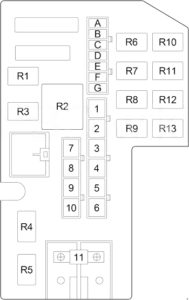

Dodge Dakota – fuse box diagram – engine compartment
No. A Protected Component
A
25
Diesel: Air Conditioner Compressor Clutch Relay, Engine ControlModule, Powertrain Control Module, Electric Vacuum Modulator
15
Gasoline: Oxygen Sensor
B
15
Left Headlamp
C
20
Fog Lamp Relay
D
25
Combination Flasher
E
20
Stop Lamp Switch
F
10
Diesel: Automatic Shut Down Relay, Powertrain Control Module
20
Gasoline: Transmission Control Relay
G
15
Right Headlamp
1
50
Diesel: Fuel Heater Relay
20
Gasoline: Powertrain Control Module, Fuel Pump Relay
2
20
Diesel: Power Outlet
30
Gasoline: Radiator Fan Relay
3
50
Diesel: Automatic Shut Down Relay (Fuel Injection Pump, Glow Plug Relay, Fuse: “A”)
30
Gasoline: Automatic Shut Down Relay (Fuel Injector, Ignition Coil, Powertrain Control Module, Fuse: “A”)
4
50
Diesel: Glow Plug Relay
20
Gasoline: Power Outlet
5
40
Blower Motor Relay
6
50
Diesel: Glow Plug Relay
7
50
Fuse (Passenger Compartment): “1”, “4”, “12”, “13”, “14”, “21”
8
30
ABS
9
40
Starter Relay, Ignition Switch (Fuse (Passenger Compartment): “2”,”3″, “7”, “18”, “20”), Radiator Fan Relay, Fuel Pump Relay, Automatic Shut Down Relay
10
40
Ignition Switch (Starter Relay, Fuse (Passenger Compartment): “6”, “8”, “9”, “10”, “11”, “15”, “16”, “17”, “19”)
11
140
Generator
Relay
R1
Wiper
R2
Blower Motor
R3
Starter
R4
–
R5
Fog Lamp
R6
–
R7
Gasoline: Transmission Control
R8
Air Conditioner Compressor Clutch
R9
Automatic Shut Down
R10
–
R11
Gasoline: Radiator Fan
R12
Headlamp Flasher
R13
Gasoline: Fuel Pump
Engine Compartment Relay Box

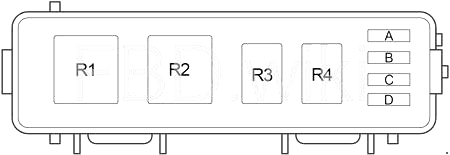

Dodge Dakota – fuse box diagram – engine relay box
No. A Protected Component
1
–
–
2
–
–
3
–
–
4
–
–
Relay
R1
–
R2
Fuel Heater Relay
R3
–
R4
–
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
