Dodge Durango (2004 – 2009) – fuse box diagram
Year of production: 2004, 2005, 2006, 2007, 2008, 2009
Passenger Compartment Fuse Box

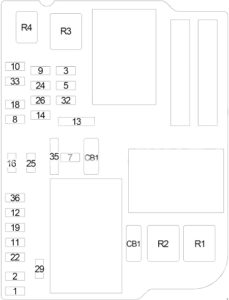

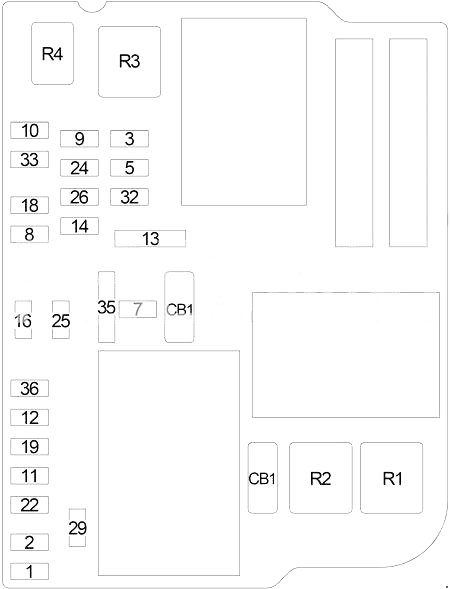

Dodge Durango – fuse box diagram – passenger compartment
No. A Circuit Protected
1
–
–
2
10
Power Mirror
3
20
Power Outlet – Instrument Panel
4
–
–
5
–
–
6
–
–
7
25
Radio Amplifier
8
10
Mirror Switch, Mirror Memory Module
9
20
Cluster
10
15
Cluster
11
10
Satellite Receiver, Monitor/DVD Media System
12
25
Radio
13
15
A/C Heater Control (Automatic A/C)
14
15
Electronic Overhead Module, Data Link Connector, Hands-Free Module, Sentry Key Remote Entry Module, Air Conditioner Compressor Clutch Relay, Fuel Pump Relay, Powertrain Control Module
15
–
–
16
10
Occupant Classification Module, Occupant Restraint Controller Module, Passenger Airbag On/Off Indicator Lamp
17
–
–
18
10
Sentry Key Remote Entry Module, Integrate Power Module, Air Conditioner Compressor Clutch Relay, Fuel Pump Relay, Powertrain Control Module
19
10
Cluster, Transfer Case Selector Switch, Driver/Passenger Heated Seat Switch, Inside Rearview Mirror, Infrared Sensor
20
–
–
21
–
–
22
–
–
23
–
–
24
10
A/C Heater Control (Manual A/C), Rear A /C Heater Control (Automatic A/C), Rear Blower Motor Relay, Rear Window Defogger Relay
25
10
Occupant Restraint Controller Module
26
10
ABS, Stop Lamp Inhibit (Traction Control), Steering Angle Sensor (Traction Control), Dynamics Sensor (Traction Control)
27
–
–
28
–
–
29
–
–
30
–
–
31
–
–
32
10
’03-’04: Starter Relay, Powertrain ControlModule, Cluster
33
10
Occupant Classification Module
36
10
Powertrain Control Module, Cluster
35
20
Power Outlet – Console, Rear Power Outlet
Circuit Breaker
CB1
25
Sunroof Motor, Power Window
CB2
–
–
Relay
R1
Rear Window Defogger
R2
Rear Blower Motor
R3
Accessory
R4
–
Integrated Power Module

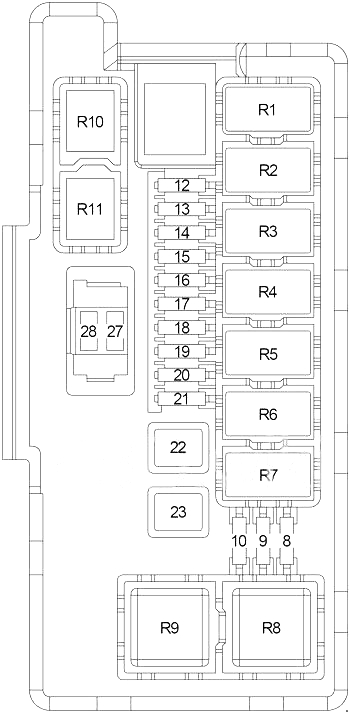

Dodge Durango – fuse box diagram – integrated power module
No. A Circuit Protected
8
10
Left Front Park/Turn Lamp, Left Front Marker Side Lamp, Left Tail/Stop/Turn Lamp, License Lamp
9
10
Trailer Tow Connector
10
10
Right Front Park/Turn Lamp, Right Front Marker Side Lamp, Right Tail/Stop/Turn Lamp
12
20
Front Control Module
13
20
Front Control Module
14
20
Adjustable Pedals Relay
15
20
Fog Lamp Relay
16
20
Horn Relay
17
20
Wiper Rear Relay
18
20
Front Control Module
19
20
’05-’09: Left Trailer Tow Relay (Trailer Tow Brake Lamp Relay Control, Trailer Connector)
15
’03-’04: Left Trailer Tow Relay (Trailer Tow Brake Lamp Relay Control, Trailer Connector)
20
20
Front Control Module
21
20
’05-’09: Right Trailer Tow Relay (Trailer Tow Brake Lamp Relay Control, Trailer Connector)
15
’03-’04: Right Trailer Tow Relay (Trailer Tow Brake Lamp Relay Control, Trailer Connector)
22
30
Front Control Module
23
40
Radiator Fan (High) Relay, Radiator Fan (Low) Relay
27
30
Front Control Module, Fuse (Passenger Compartment): “11”, “12”
28
30
Fuse (Passenger Compartment): “13”, “14”
Relay
R1
Wiper On/Off
R2
Wiper High/Low
R3
Horn
R4
Wiper Rear
R5
Left Trailer Tow
R6
Right Trailer Tow
R7
Park Lamp
R8
Radiator Fan (High)
R9
Radiator Fan (Low)
R10
Fog Lamp
R11
Adjustable Pedals
Engine Compartment Fuse Box

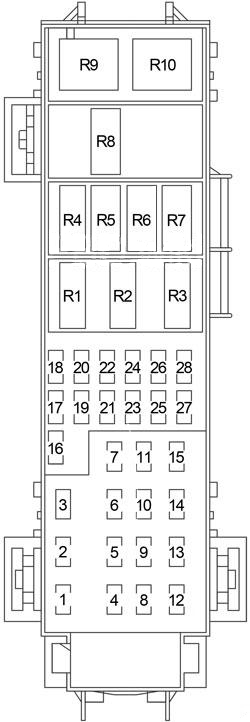

Dodge Durango – fuse box diagram – engine compartment
No. A Circuit Protected
1
30
Starter Relay, Ignition Switch (Fuse (Passenger Compartment): “16”, “18”, “19”, “32”, “34”; (Engine Compartment): “16”), Run/Start Relay
2
30
Integrate Power Module (Wiper High/Low Relay, Wiper On/Off Relay)
3
40
Brake Provision Module
4
30
Ignition Switch (Fuse (Passenger Compartment): “25”), Sunroof Motor, Fuse (Passenger Compartment): “35”
5
40
’05-’09: Driver/Passenger Seat Switch, Heated Seat Module, Seat Memory Module
50
’03-’04: Driver/Passenger Seat Switch, Heated Seat Module, Seat Memory Module
6
20
Ignition Switch (Fuse (Passenger Compartment): “24”, “25”, “26”)
7
40
Front Blower Motor Relay, Run/Remote Relay
8
40
Accessory Relay (Circuit Breaker, Fuse (Passenger Compartment): “3”)
9
–
–
10
30
Automatic Shut Down Relay (Powertrain Control Module, ASD Relay, Ignition Coil, Fuel Injector, Ignition Capacitor)
11
40
’05-’09: Liftgate Power Module
12
40
Rear Window Defogger Relay (Fuse (Passenger Compartment): “2”), Shift Motor/Mode Sensor Assembly
13
30
Rear Blower Motor Relay
14
40
ABS
15
50
Fuse (Passenger Compartment): “7”, “8”, “9”, “10”, “33”
16
10
’05-’09: Starter Relay, Cluster, Powertrain Control Module, Front Control Module
17
–
–
18
20
Fuel Pump Relay
19
20
Transmission Control Relay
20
–
–
21
20
ABS
22
20
Powertrain Control Module
23
20
Trailer Tow Connector
24
15
Air Conditioner Compressor Clutch Relay
25
15
Stop Lamp Switch
26
–
–
27
10
Ignition Switch (Instrument Cluster)
28
–
–
Relay
R1
’05-’09: Run/Start
R2
’05-’09: Run/Remote
R3
–
R4
Starter
R5
Transmission Control
R6
Air Conditioner Compressor Clutch
R7
Fuel Pump
R8
’05-’09: Stop Lamp Inhibit (Traction Control)
R9
Front Blower Motor
R10
Automatic Shut Down
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
