Dodge Ram 1500 (2013 – 2018) – fuse box diagram

Year of production: 2013, 2014, 2015, 2016, 2017, 2018

Engine Compartment Fuse Box (Power Distribution Center)

Dodge Ram 1500 - fuse box diagram - engine compartment
Dodge Ram 1500 – fuse box diagram – engine compartment
No.
 A
 Protected Component
1 80 except for 5.7L: Radiator Fan Control Module
2 –  –
3 60 Radiator Fan High Relay
4 –  –
5 40 Compressor for Air Suspension
6 40 Antilock Brakes/Electronic Stability Control Pump
7 40 Starter Solenoid
8 20 Emissions Diesel
9 40 6.7L Cummins: Fuel Heater
30 3.0L EcoDiesel: Fuel Heater
10 40 Body Control Module (BCM) (Exterior Lighting No.2)
50 with Stop/Start: Body Control Module (BCM) (Exterior Lighting No.2)
11 30 Integrated Trailer Brake Module
12 40 Body Control Module (BCM) (Interior Lights)
13 40 Blower Motor
14 40 Body Control Module (BCM) (Power Locks)
15 30 Electric Park Brake Right Side
16 30 Smart Bar
17 –  –
18 –  –
19 30 6.7L Cummins: Selective Catalytic Reduction (SCR)
20 3.0L EcoDiesel (’16-’18): Selective Catalytic Reduction (SCR)
20 30 Passenger Door Module
21 30 Drive Train Control Module
22 20 except for 3.0L EcoDiesel: Powertrain Control Module (PCM)
30 6.7L Cummins (’16-’18): Powertrain Control Module (PCM)
23 30 Body Control Module (BCM)
24 30 Driver Door Module
25 30 Front Wiper (Low Speed/High Speed)
26 30 Antilock Brakes/Stability Control Module (Valves)
27 –  –
28 20 Trailer Tow (Back-Up Lights)
29 20 Trailer Tow (Parking Lights)
30 30 Trailer Tow Receptacle
31 30 3.0L EcoDiesel: Heater Control Module
20 3.0L EcoDiesel: Heater Control Module
32 30 Drive Train Control Module
33 20 6.7L Cummins: Transmission Control Module, Fuel Heater No.1, Rear Blower
20 Rear Blower
34 30 Vehicle System Interface Module No.2
35 30 Sunroof
36 30 Rear Window Defroster
37 30 6.7L Cummins: Fuel Heater No.2
38 30 Power Inverter 115V AC
39 30 ’14-’15: Vehicle System Interface Module No.1
20 Special Services (’16-’18): Power Outlet
40 –  –
41 10 Active Grill Shutter
42 20 Horn
43 10 Snow Plow (Left)
44 10 Diagnostic Connector
45 –  –
46 10 Tire Pressure Module, Upfitter
47 10 Snow Plow (Right)
48 –  –
49 10 Instrument Panel Cluster
50 20 Air Suspension Control Module
51 10 Keyless Ignition Node Module, Radio Frequency Hub Module
52 5 Intelligent Battery Sensor
53 20 Trailer Tow – Left Turn/Stop Lights
54 20 Adjustable Pedals
55 20 Left/Right Spot
56 15 Diesel: Additional Diesel Content
57 20 Transmission Control Module (8 Speed Automatic Transmission), Powertrain Module Relay (6 Speed Automatic Transmission)
58 20 Gasoline (’14-’15): Engine Cooling Pump
25 6.7L Cummins (’14-’15): Engine Cooling Pump
59 10 ’16-’18: Selective Catalytic Reduction (SCR) Relay
60 15 Underhood Lamp
61 20 ’14-’15: Power Take-off Unit
10 Diesel (’16-’18): PM Sensor
62 10 Air Conditioning Clutch
63 20 Gasoline: Ignition Coils
20 6.7L Cummins: Urea Heater
64 25 Fuel Injectors, Powertrain Control Module (PCM)
65 10 ’14-’15: USB interface
66 10 Sunroof Control Module, Passenger Window Switches, Rain Sensor
67 10 CD/DVD/Bluetooth Hands-free Module
68 –  –
69 15 6.7L Cummins: Selective Catalytic Reduction (SCR) Module
70 30 Fuel Pump Motor
71 25 Audio Amplifier
72 10 ’14-’15: Voltage Stabilizer Modules
10 ’16-’18: Powertrain Control Module (PCM)
73 20 HD: Fuel Transfer Pump
74 20 Gasoline, 3.0L EcoDiesel: Brake Vacuum Pump
10 6.7L Cummins (’14-’15): Brake Vacuum Pump
75 10 3.6L & 5.7L 8 Speed A/T: Coolant Temperature Valve Actuator
76 10 Antilock Brakes/Electronic Stability Control
77 10 Drivetrain Control Module, Front Axle Disconnect Module, Transmission Control Module (3500HD)
78 10 Powertrain Control Module (PCM), Electric Power Steering, Intake Air Diverter Valve (6.7L Cummins)
79 15 Clearance Lights
80 10 Universal Garage Door Opener, Compass Module
81 20 Trailer Tow Right Turn/Stop Lights
82 10 Steering Column Control Module, Cruise Control
83 –  –
84 15 Switch Bank, Instrument Cluster
85 10 Airbag Module
86 10 Airbag Module
87 10 Air Suspension Control Module, Trailer Tow Module, Steering Column Control Module
88 15 Instrument Panel Cluster
10 Instrument Panel Cluster
89 –  –
90 20 Power Outlet (Rear seats), Customer Selectable
91
92 –  –
93 20 Cigar Lighter
94 10 SBW/Shifter, Transfer Case Module
95 10 Rear Camera, Park Assist, License Lamps
96 10 Rear Seat Heater Switch
97 25 Rear Heated Seats, Heated Steering Wheel
98 25 Front Heated Seats
99 10 A/C Heater Module, In-Car Temperature Sensor, Himidity Sensor
100 10 Upfitters
101 15 Electrochromatic Mirror, Smart High Beams
102 –  –
103 –  –
104 20 Power Outlets (Instrument Panel/Center Console)
Circuit Breaker
CB1 25 Power Window, Power Door Lock, Power Sliding Backlite Switch
CB2 25 Driver Power Seat, Memory Seat Module
CB3 25 Passenger Power Seat
Relay
R1 Radiator Fan (Low Speed)
R2 Radiator Fan (High Speed)
R3 Air Suspension
R4 Selective Catalytic Reduction (SCR)
R5 Auto Shut Down (Powertrain Control Module)
R6 Ignition (Run/Accessory No.1)
R7 Starter
R8 Ignition (Run/Start)
R9 Fuel Heater (No.1)
Air Pump (No.2)
R10 EBL
R11  –
R12 Ignition (Run/Only No.2)
R13 Frame Heater
R14 Ignition (Run/Accessory No.2)
R15 Ignition (Run/Only No.1)
R16 Blower Motor

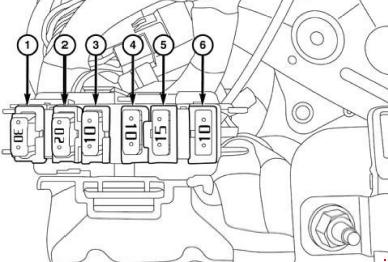

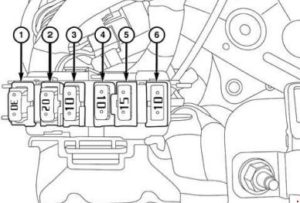

Additional Fuse Box

Dodge Ram 1500 - fuse box diagram - additional box
Dodge Ram 1500 – fuse box diagram – additional box
No.
 A
 Protected Component
1 30 Auxiliary Switch Bank Module (ASBM), HVAC, Integrated Center Stack (ICS)
2 20 Integrated Trailer Brake Module (ITBM)
3 10 Parktronics (PTS)
4 10 Body Control Module (BCM), Cluster – Exterior Lighting Feeds
5 15 Spare
6 10 Radio with Built in Amplifier

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
