Dodge RM – Series (1965 – 1974) – fuse box diagram
Year of production: 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974

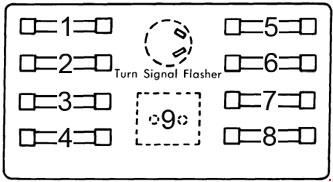

Fuse box
| № |
A |
Protected Component |
| 1 | 6 | Alternator Regulator |
| 2 | 30 | Horn |
| 3 | 15 | Turn Signal |
| 4 | 15 | Tail Light, Stop Light, Dome Light, Park Light |
| 5 | 20 | Heater |
| 6 | 6 | Radio |
| 7 | 2 | Instrument Light |
| 8 | 15 | 4-Way Flasher, Cigar Lighter |
| 9 | 8 | Circuit Breaker: Axle |
- RM300, RM350, RM400 – Fusible link is contained in wire loom between ammeter and solenoid.
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
