Eagle Vision (1993 – 1994) – fuse box diagram

Eagle Vision (1993 – 1994) – fuse box diagram

Year of production: 1993, 1994

High current fuses

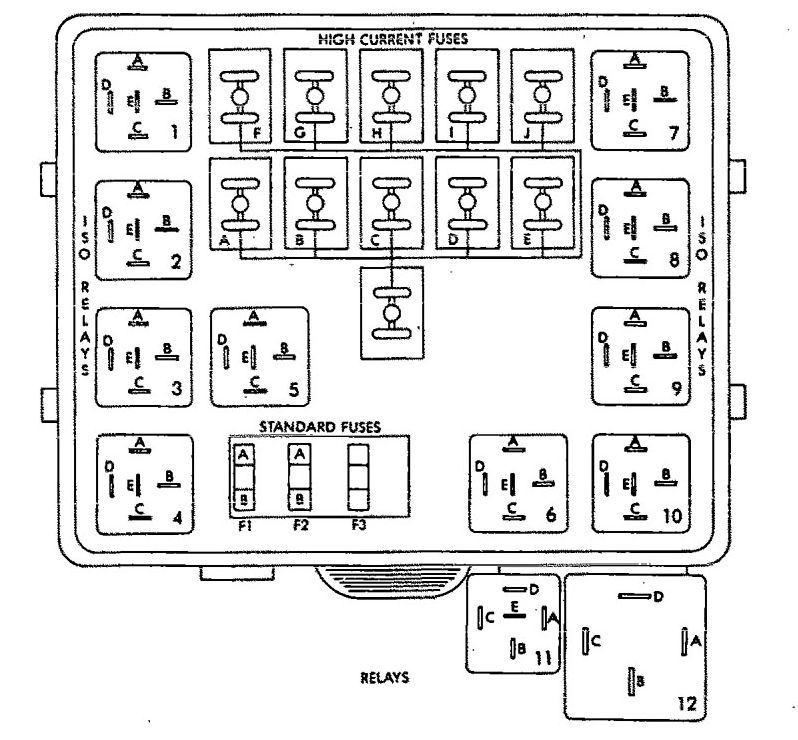

Eagle Vision – fuse box diagram
Eagle Vision – fuse box diagram
Fuses Description
A Transmission control system
B Engine starter relay, fuel pump relay
C Intermitten wiper relay
D Radiator fan relay
E Junction block
F ABS Pump relay
G Ignition switch
H ABS controller
I Junction block
J Jnction block

Standard fuses

Fuses Description
F1 Combo flasher
F2 DRL module

Relays

No Description
1 RAD FAN HI
A F18
B A16
C C27
D C25
E
2 RAD FAN LOW
A F18
B A16
C C24
D C23
E
3 A/C CLUTCH
A F18
B A16
C C28
D C2
E
4 AUTO SHUTDOWN
A F12
B A14
C K51
D A142
E
5 FUEL PUMP
A F12
B A14
C K51
D A141
E
6 I WIPE
A F13
B T10
C V5
D A15
E 21
7 EATX SHUTDOWN
A T15
B A14
C Z1
D T16
E
8 STARTER
A A41
B A1
C T41
D T40
E
9
A
B
C
D
E
10 HI/LO WIPER
A F138
B T101
C V4
D T103
E T102
11 ABS SKRTD ISO
A F20
B B120
C B56
D A20
E Z1
12 ABS PUMP
A B1
B A10
C B116
D B62
E

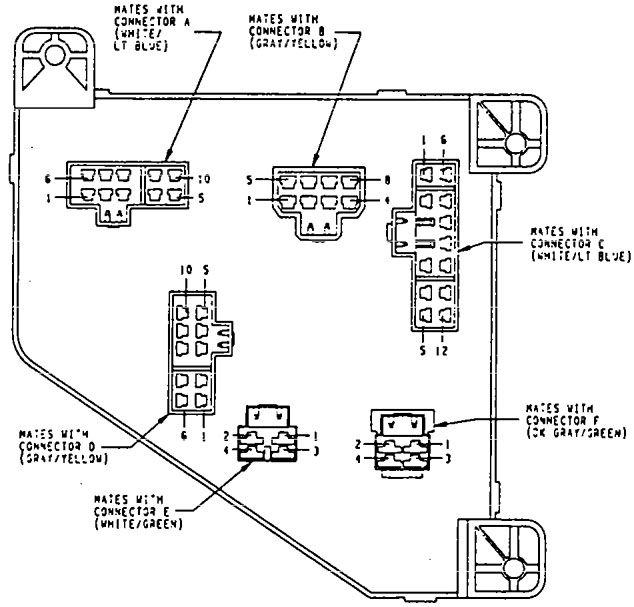

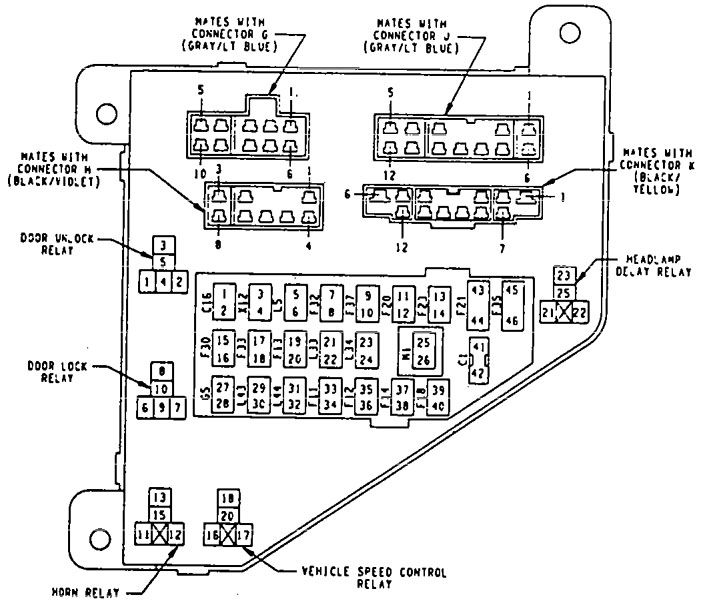

Eagle Vision – fuse box diagram
Eagle Vision – fuse box diagram

Eagle Vision – fuse box diagram
Eagle Vision – fuse box diagram

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
