Eagle Vision (1996) – fuse box diagram

Eagle Vision (1996) – fuse box diagram

Year of production: 1996

Junction block

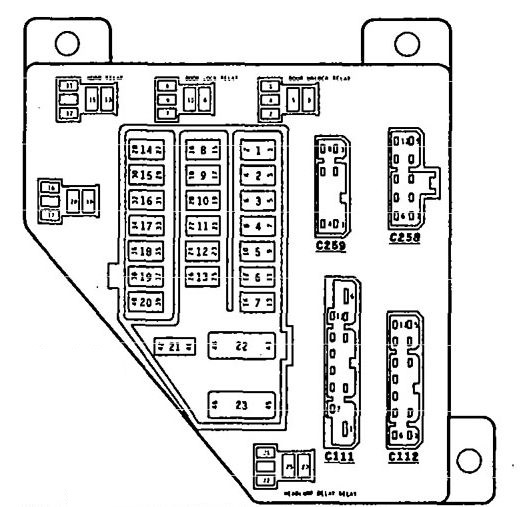

Eagle Vision – fuse junction block
Eagle Vision – fuse junction block
Fuses A Fused circuit Feed circuit
1 5 C16 L8/YL C15 BK/WT
2 10 X12 RD/WT A31 BK/WT
3 10 C5 BK A31 BK/WT
4 20 F32 PK/DB A7 RD/BK
5 5 F37 RD/LG A3 ED/WT
6 10 F20 WT A22 BK/DR
7 10 F23 DB/YL A22 BK/DR
8 20 F30 RD A13 PK/WT
9 15 F33 PK/RD A13 PK/WT
10 10 F13 DB A31 BK/WT
11 15 L33 RD/DR L3 RD/DR
12 15 L34 RD/DR L3 RD/DR
13 10 M1 PK A7 RD/BK
14 5 G5 DB/WT A21 DB
15 15 L43 VT L4 VT/WT
16 15 L44 YT/RD L4 VT/WT
L48 VT/PK
17 5 F11 RD/WT A81 RD/WT
18 10 F12 DB/WT A21 DB
19 10 F14 LG/YT A21 DB
20 10 F18 LG/BK A21 DB
21 25 C1 DG A22 BK/OR
22 CB 20A F21 DG/RD A22 BK/OR
23 CB 20A F35 RD A3 RD/WT
24

Power distribution box

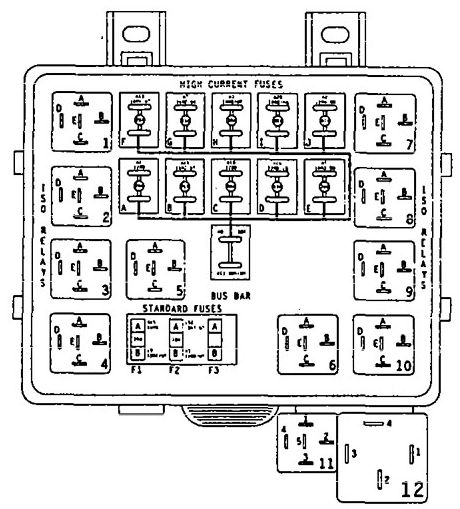

Eagle Vision – fuse box diagram- -power distribution box
Eagle Vision – fuse box diagram- -power distribution box
No Description
C109-1
HIGH SPEED RADIATOR FAN RELAY
A F18 22LG/BK
B A16 12RD/LG
C C27 22DB/PK
D C25 12YL
E
C109-2
LOW SPEED RADIATOR FAN RELAY
A F18 22LG/BK
B A16 12RD/LG
C C24 22WT
D C23 12TH
E
C109-3
A/C COMPRESSOR CLUTCH RELAY
A F18 22LG/BK
B A16 12RD/LG
C C28 22DB/DR
D C2 12DB/BK
E
C109-4
AUTOMATIC SHUT DOWN RELAY
A A14 16RD/WT
B A14 16RD/WT
C K51 22DB/YL
D A142 16DG/OR
E
C109-5
FUEL PUMP RELAY
A F12 22DB/WT
B A14 16RD
C K31 22BR
D A141 16DG/BK
E
C109-6
INTERMITTENT WIPER RELAY
A F13 22DB
B V5 14LG/BK
C V14 22DG/YL
D A5 14RD/DB
E 21 14BK
C109-7
NOT USED
A
B
C
D
E
C109-8
ENGINE STARTER MOTOR RELAY
A A41 16YL
B A1 16RD
C T41 22BK/LG
D T40 16LG
E
C109-9
TRANSMISSION RELAY
A T15 22LG
B A14 16RD/WT
C Z1 20BK
D T16 16RD
E
C109-10
HI/LO WIPER RELAY
A F13 20DB
B V5 14LG/BK
C V16 22VT
D V4 14RD/YL
E V3 14BR/WT
C114-11
ABS MAIN RELAY
1 B120 14BR/WT
2 B56 20OR/BK
3 Z1 14BK
4 A20 14RD/DG
5 F20 20WT
C115-12
ABS PUMP MOTOR RELAY
1 A10 12DB
2 B116 20GY
3 B120 14BR/WT
4 B62 12BR/WT

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
