Ferrari California (2008 – 2014) – fuse box diagram

Ferrari California (2008 – 2014) – fuse box diagram

Year of production: 2008, 2009, 2010, 2011, 2012, 2013, 2014

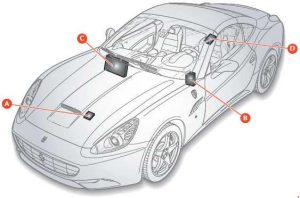

Location

Ferrari California – fuse box diagram – location
Ferrari California – fuse box diagram – location
Number Description
A Fuses and relays in engine compartment
B Body computer fuses and relayu
C Fuses and relays in passenger compartment on passenger side
D Fuses and relays in passenger compartment in center console

Body Computer fuses and relays

Ferrar California – fuse box diagram – body computer
Ferrar California – fuse box diagram – body computer
Number Fuse rating [A] Description
F12 15 Right high beam
F13 15 Left high beam
F31 7,5 AC unit, body computer connector
F32 10 Dome lights, foot well and puddle lights, side markers, supplementary taillights.
F35 7,5 Clutch pedal control. Cruise control. Power steering. Beams.
F36 10 Satellite alarm system, parking sensors, fuel filler flap.
F37 10 Stop light control.
F38 15 Luggage compartment lock
F39 15 Radio, diagnosis socket, CAN box interface.
F40 30 Heated rear screen
F42 7,5 Alternator
F43 30 Windscreen wipers
F44 20 Passenger seat heating, cigarette lighter
F46 20 Hard top
F47 30 Driver-side door
F48 30 Passenger-side door
F49 7,5 Passenger compartment lighting switches and controls
F50 7,5 Air bags
F51 7,5 Semi-automatic gearbox, engine start button
F52 15 Power socket driver seat heating
F53 10 Instrument panel
Relay
T01 20 Low beam relay
T11 30 Heated rear screen relay
T12 30 Relay services 1
T13 Supply jumper services 2

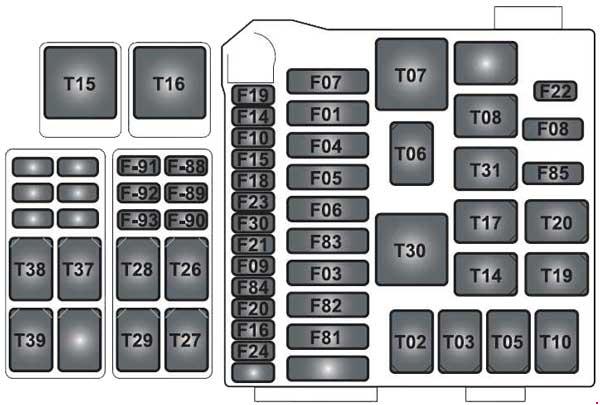

Passenger side fuses and relays

Ferrari California – fuse box diagram – passenger side
Ferrari California – fuse box diagram – passenger side
Number Ampere ratting [A] Description
F01 60 +30 Radiator fans (first speed)
F02 30 +30 ABS (valves)
F03 30 +30 Ignition switch
F04 50 +30 ABS (pump)
F05 40 +30 Air conditioning and heating system
F06 50 +30 Radiator fans (second speed)
F07 20 +30 Horns
F08 7,5 Air conditioning and heating system compressor
F09 7,5 +30 Supplementary stop lights
F10 15 +30 luggage compartment lock relay
FII 25 Left bank oxygen sensors
F14 15 +30 high beams
F15 7,5 +30 alternator sensing
F16 25 +30 Right bank engine control power supply
F17 25 +30 Left bank engine control power supply
F18 10 +30 Left cylinder bank injection system power supply, LH cylinder bank injection main relay
F19 10 +30 Right cylinder bank injection system power supply, RH cylinder bank injection main relay coil
F20 30 +30 right injection system main relay
F21 15 +30 Fuel pump 2
F22 15 Left bank (ignition coil)
F23 10 +30 ABS (electronic)
F24 15 Right bank (ignition coil)
F30 30 +30 Starting relay
F81 40 +30 Supplementary ECU power supply
F82 70 +30 Dashboard ECU and luggage compartment ECU power supply
F83 50 +30 Air pump relay
F84 15 +30 Fuel pump relay 1
F85 25 Headlight washer
F87 25 Right bank oxygen sensors
F88 10 +15 left cylinder bank injection system
F93 30 +30 suspension control node fuse
Relay
T02 30 High beam relay
T05 30 Fuel pump relay 2
T06 30 Luggage compartment lock actuator relay
T07 50 Horn relay
T08 30 Air conditioning and heating system compressor relay
T09 30 Left cylinder bank injection system main relay
T10 30 Right cylinder bank injection system main relay
T14 30 Fuel pump relay 1
T15 50 Radiator fan relay (second speed)
T16 50 Radiator fan relay (first speed)
T17 10 INT/A relay (devices excluded at ignition)
20
T19 30 Stop light control relay
T20 30 Starting relay
T26 30 Windscreen wiper relay (first speed)
T27 30 Windscreen wiper relay (second speed)
T28 30 Windscreen washer pump relay
T29 30 Supplementary stop light relay (third stop light)
T30 50 Air pump relay
T37 30 Left supplementary taillight relay
T38 30 Left headlight LED module power supply
T39 30 Right headlight LED module power supply
T31 30 Headlight washer pump relay

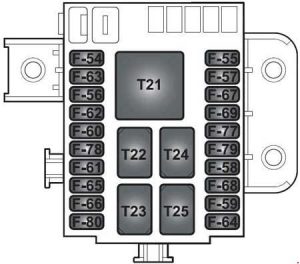

Fuses and relays on centre console

Ferrari California – fuse box diagram – centre console
Ferrari California – fuse box diagram – centre console
Number Fuse rating [A] Description
F54 20 +30 HI-FI amplifier
F56 30 +30 Driving position
F57 7,5 Side Markers 1 (LH front and RH rear)
F59 7,5 Reverse lights
F60 30 +30 Passenger position
F61 7,5 +30 Driving position (electronic)
F62 7,5 +30 Passenger position (electronic)
F63 15 +30 Semi-automatic gearbox main relay
F64 7,5 Fuel filler flap actuator
F65 20 Door lock actuator
F66 7,5 +30 Semi-automatic gearbox
F67 7,5 Side Markers 2 (RH front and LH rear)
F78 15 +30 Battery charger
F80 30 +30 BassBox amplifier
Relay
T21 50 Side Marker relay
T22 30 Reverse light relay
T23 30 Fuel filler flap relay
T24 30 Supplementary taillight relay
T25 30 Semi-automatic gearbox main relay

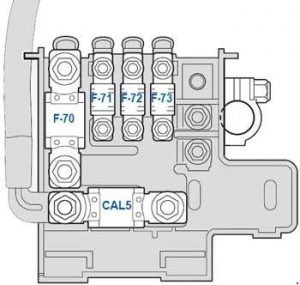

Fuses and relays in the engine compartment

Ferrari California – fuse box diagram – engine compartment
Ferrari California – fuse box diagram – engine compartment
Number Fuse rating [A] Description
CAL2 CAL2 Power sitpply (starter motor and alternator).
F70 150 Power sitpply and engine relay
F71 40 Hard top pump
F72 40 Parking brake power
F73 70 Dashboard ECU power

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
