Ferrari F12Berlinetta – fuse box diagram

Ferrari F12Berlinetta – fuse box diagram

Year of production:

Location

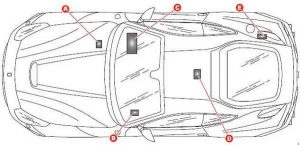

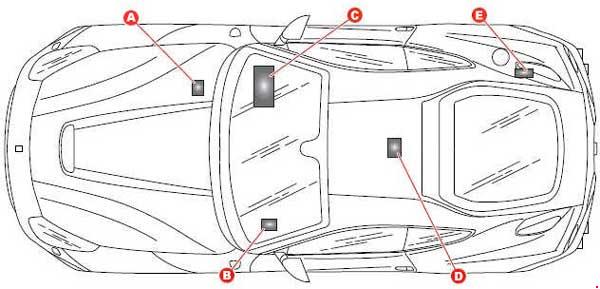

Ferrari F12Berlinetta – fuse box diagram – location
Ferrari F12Berlinetta – fuse box diagram – location
Number Location
A Fuses and realys in the battery compartment
B Body computer fuses and relays
C Fuses and relays in the passenger compartment on passenger side
D Fuses and relays on centre console
E Fuses and relays in luggage compartment

Body Computer fuses and relays

B

Ferrari F12Berlinetta – fuse box diagram – body computer – box B
Ferrari F12Berlinetta – fuse box diagram – body computer – box B
Number Fuse rating [A] Description
F12 15 Right high beam
F13 15 Left high beam
F31 7,5 INT/A for dashboard ECU, Body Computer Node and air conditioning and heating relay
F32 10 Dome lights, foot well and step lights, Side Marker relay coil and glove compartment button
F33 30 Electronically controlled Gearbox Node control unit
F35 7,5 Stop light control, clutch control, air conditioning node
F36 10 Parking sensors, fuel filler flap relay coil
F37 10 Instrument Panel Node
F38 15 Luggage compartment lock actuator
F39 15 Dashboard ECU devices (NBC interconnection)
F40 30 Heated rear window
F41 15 Heated nozzle power supply
F42 7,5 Alternator
F43 30 Windscreen washer/wiper relay power supply
F44 20 Passenger seat heating, cigarette lighter
F47 30 Driver-side door, driver-side power window
F48 30 Passenger-side door, passenger-side power
F49 7,5 Rain and twilight sensor, parking sensors, parking brake control, column adjustment control, hazard warning lights. Steering Wheel Node, Differential Control Node, radio, CAN box interface
F50 7,5 Airbag Node, weight sensor
F51 7,5 Electronically controlled Gearbox Node, ignition button
F52 15 Power socket, driver seat heating
Relay
T01 20 Low beam relay
T11 30 Heated rear window relay
T12 30 Service relay 1 (dependent on INT/A ignition switch)
T13 50 Jumper (service power supply 2)

Fuses and relays in passenger compartment on passenger side

C

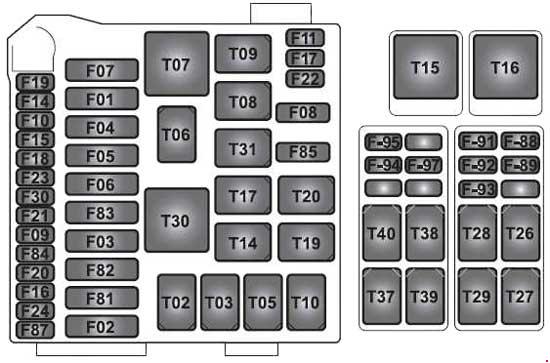

Ferrari F12Berlinetta – fuse box diagram – passenger compartment – box C
Ferrari F12Berlinetta – fuse box diagram – passenger compartment – box C
Number Fuse rating [A] Description
F01 40 +30 Radiator fan relay 2
F02 40 Bus-Bar power supply for F-102, F-105
F03 70 Bus bar power supply for F-107, F-108, F-91, F-92, F-109, F-104, F-103
F04 50 +30 ABS (pump)
F05 40 +30 Air conditioning Node
F06 40 +30 Radiator fan relay 1
F07 20 +30 Horn relay
F08 7,5 Air conditioning and heating system compressor
F09 7,5 +30 Alternator sensing
F10 30 +30 Bus bar for F-94, F-95, F-106
F11 25 Left bank oxygen sensor
F14 15 +30 High beam relay
F15 30 +30 Ignition switch
F16 25 +30 Right bank engine control power supply
F17 25 +30 Left bank engine control power supply
F19 20 +30 Active aerodynamic relay
F20 30 +30 Right cylinder bank injection system main
F21 10 +30 Active aerodynamic control and front lift power supply
F22 15 Left bank (ignition coil)
F24 15 Right bank (ignition coil)
F30 30 +30 Starting relay
F81 40 +30 Fuel pump ESD ECU
F82 70 +30 Dashboard ECU and luggage compartment ECU power supply
F83 50 +30 Air pump relay
F84 30 +30 Suspension Control Node
F85 25 Headlight washer
F87 25 Right bank oxygen sensors
F88 10 +15 Left cylinder bank injection system
F89 10 +15 Right cylinder bank injection system
F91 15 +30 Tyre pressure node, LH headlight LED module relay
F92 7,5 +30 Right headlight LED module relay
F94 15 +30 Radio/CAN box/ICP/clock spring/Japan navigation system stabiliser
F95 10 +30 Current stabiliser
F102 10 +30 ABS (electronic)
F105 30 +30 ABS (valves)
F106 7,5 +30 Passenger compartment control lighting
F107 10 +30 Right cylinder bank injection system power supply
F108 10 +30 Left cylinder bank injection power supply
F109 7,5 +30 Supplementary stop light relay
Relay
T02 30 High beam relay
T03 30 Passenger compartment control lighting relay
T05 30 Supplementary stop light relay
T07 50 Horn relay
T08 30 Air conditioning and headng system compressor relay
T09 30 Left cylinder bank injection system main relay
T10 30 Right cylinder bank injection system main
T14 30 Windscreen washer pump relay
T17 10 INT/A relay (devices excluded at ignition)
20
T19 30 EPB-activated stop light control relay
T20 30 Starting relay
T26 30 Windscreen wiper first speed relay
T27 30 Windscreen wiper second speed relay
T28 30 Active aerodynamic release relay
T29 30 Active aerodynamic locking relay
T30 50 Air pump relay
T31 30 Headlight washer pump relay
T38 30 Left headlight LED module power supply
T39 30 Right headlight LED module power supply

Fuses and relays on centre console

D

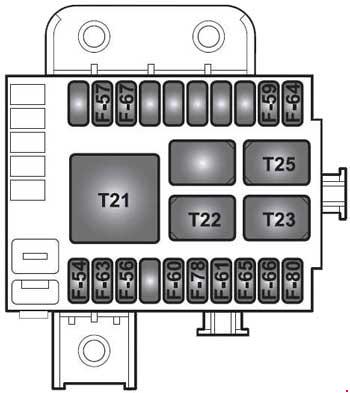

Ferrari F12Berlinetta – fuse box diagram – centre console – box D
Ferrari F12Berlinetta – fuse box diagram – centre console – box D
Number Fuse rating [A] Protected component
F54 30 +30 HiFi amplifier
F56 30 +30 Driving Position Node
F57 7,5 Side Markers 1 (LH front and RH rear)
F59 7,5 Reverse light power supply
F60 30 +30 Passenger Position Node
F63 20 +30 Electronically controlled gearbox main relay
F64 7,5 Fuel filler flap actuator power supply
F65 20 +30 Door lock actuator
F66 30 +30 Bus-Bar power supply for F-96, F-100, F-I01
F67 7,5 Side Markers 2 (RH front and LH rear)
F80 30 +30 Bus bar power supply for F-97, F-98, F-99
Relay
T21 50 Side Marker relay
T22 30 Reverse light relay
T23 30 Fuel filler flap relay
T25 30 Electronically controlled gearbox main relay

Fuses and relays in luggage compartment

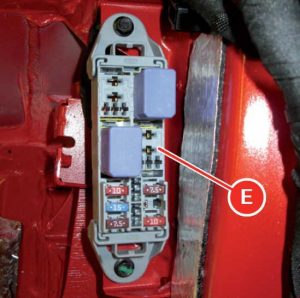

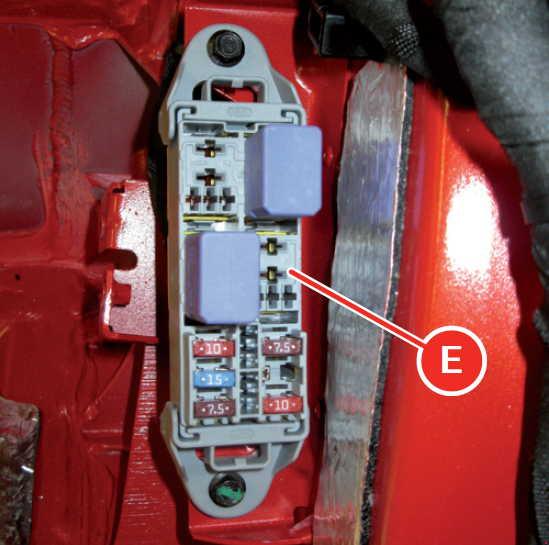

Ferrari F12Berlinetta – fuse box diagram – luggage compartment – box E
Ferrari F12Berlinetta – fuse box diagram – luggage compartment – box E
Number Ampere ratting [A] Description
F96 10 +30 Luggage compartment lock relay
F97 10 +30 Electronic Passenger Position Node, luggage compartment striker plate
F98 15 +30 Battery conditioner socket
F99 7,5 +30 Semi-automatic Gearbox Node
F100 7,5 +30 Driving Position Node, suspension lift ECU
Relay
T40 30 Glove compartment lock relay
T41 30 Luggage compartment lid lock relay

Fuses and relays in battery compartment

A

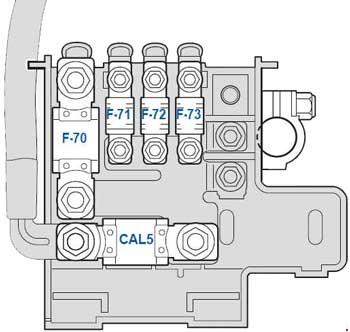

Ferrari F12berlinetta – fuse box diagram – battery compartment – box A
Ferrari F12berlinetta – fuse box diagram – battery compartment – box A
Number Ampere ratting [A] Description
CAL5 CAL5 Power supply (starter motor and alternator)
F70 150 Engine relay and fuse ECU power (SCM) supply
F71 40 Front lift pump
F72 40 Parking brake power
F73 70 Dashboard ECU power

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
