Fiat 500X (from 2014) – fuse box diagram

Fiat 500X (from 2014) – fuse box diagram

Year of production: 2014, 2015, 2016

Fuse box in engine compartment

The fuse box is located by the side of battery.

Fiat 500X – fuse box – engine compartment
Fiat 500X – fuse box – engine compartment
Users Fuse Ampere rating [A]
Horn F10 10
Power supply for cigar lighter/power socke F84 20



Fuse box in dashboard

The fuse box is located near the left side of steering column.

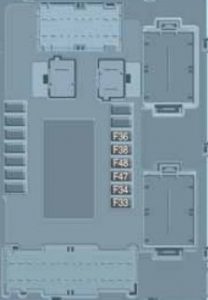

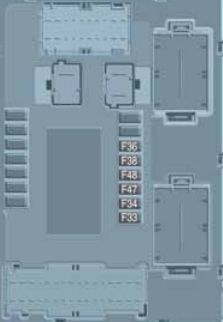

Fiat 500X – fuse box – dashboard
Fiat 500X – fuse box – dashboard
Users Fuse Ampere fating [A]
Front electric window (passenger side) F33 20
Front electric window (driver side) F34 20
Supply for Uconnect™ system, Climate Control system, Electric door mirror folding, EOBD system, USB port/AUX socket, rear side roof lights (versions with sun roof) F36 15
Dead Lock device (Driver side door unlocking for versions/ markets, where provided)/Door unlocking/Central locking/Electric tailgate unlocking F38 20
Rear left electric window F47 20
Rear right electric window F48 20

Boot fuse box

The configuration of the boot may vary in accordance with the equipment on the vehicle..

Fiat 500X – fuse box – boot
Fiat 500X – fuse box – boot
Users Fuse Ampere rating [A]
HI-FI system F2 20
Electric sun roof F3 20
Front seat electric lumbar adjustment (driver guide) F4 7,5
Electric front seat adjustment (driver side) F5 30
Electric front seat adjustment (driver side and passenger side) F6 7,5
Electric front seat lumbar adjustment (driver side and passenger side) F7 30

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
