Fiat Barchetta (2002 – 2005) – fuse box diagram

Fiat Barchetta (2002 – 2005) – fuse box diagram

Year of production: 2002, 2003, 2004, 2005

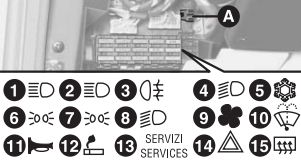

Fuse box on the dashboard

Fiat Barchetta – fuse box – dashboard
Fiat Barchetta – fuse box – dashboard

Fuse box in engine compartment

Fiat Barchetta – fuse box – engine compartment
Fiat Barchetta – fuse box – engine compartment

Fiat Barchetta – fuse box – engine compartment
Fiat Barchetta – fuse box – engine compartment

Fuse list

Exterior lights

Protected device Ampere rating [A] Fuse Location
Direction indicators 15 13 Dashboard (left of the steering wheel)
Front right-hand side light 10 6 Dashboard (left of the steering wheel)
Front left-hand side light 10 7 Dashboard (left of the steering wheel)
Right-hand taillight 10 7 Dashboard (left of the steering wheel)
Left-hand taillight 10 6 Dashboard (left of the steering wheel)
Right-hand dipped beam headlight 10 4 Dashboard (left of the steering wheel)
Left-hand dipped beam headlight 10 8 Dashboard (left of the steering wheel)
Right-hand main beam headlight 10 1 Dashboard (left of the steering wheel)
Left-hand main beam headlight 10 2 Dashboard (left of the steering wheel)
Fog light 20 Dashboard
Fog light 40 5 Engine compartment
Rear fog light 10 3 Dashboard (left of the steering wheel)
Reverse light 15 13 Dashboard (left of the steering wheel)
Hazard lights 10 14 Dashboard left of the steering wheel)
Brake lights 15 13 Dashboard (left of the steering wheel)
Third brake light 15 13 Dashboard (left of the steering wheel)
Right-hand number plate light 10 6 Dashboard left of the steering wheel)
Left-hand number plate light 10 7 Dashboard (left of the steering wheel)

Interior lights

Protected device Ampere rating [A] Fuse Location
Ceiling light 15 12 Dashboard (left of the steering wheel)
Glove compartment light 10 14 Dashboard (left of the steering wheel)
Glove compartment light 40 5 Engine compartment
Side/taillight warning light 10 6 Dashboard (left of the steering wheel)
Main beam headlight warning light 10 2 Dashboard (left of the steering wheel)
Fog light warning light 20 Dashboard
Direction indicator warning light 15 13 Dashboard (left of the steering wheel)
Hazard light warning light 10 14 Dashboard (left of the steering wheel)
Rear fog light warning light 50 6 Engine compartment
Instrument panel light 10 6 Dashboard (left of the steering wheel)
Digital clock light 10 6 Dashboard (left of the steering wheel)
Cigar lighter light 10 6 Dashboard (left of the steering wheel)
Window winder light 30 Dashboard
Fog light/rear fog light switch light 10 6 Dashboard (left of the steering wheel)
Hazard light control light 15 13 Dashboard (left of the steering wheel)
Heater control light 10 7 Dashboard (left of the steering wheel)
Manual climate control system light 10 7 Dashboard (left of the steering wheel)
Electric mirror control light 10 6 Dashboard (left of the steering wheel)

Loads

Protected device Ampere rating [A] Fuse Location
Ignition switch 50 6 Engine compartment
Airbag 15 13 Dashboard (left of the steering wheel)
Fiat CODE 30 4 Engine compartment
Fiat CODE 50 6 Engine compartment
Door locking system 40 5 Engine compartment
Door locking receiver 15 13 Dashboard (left of the steering wheel)
Door lock geared motors 20 Dashboard
Sound system power 15 12 Dashboard (left of the steering wheel)
ABS 60 7 Engine compartment
Manual climate control system 30 5 Dashboard (left of the steering wheel)
Horn 20 11 Dashboard (left of the steering wheel)
Electric window winder system 40 5 Engine compartment
Electric window winders 40 5 Engine compartment
Electric window winder geared motors 30 Dashboard
Windscreen washer motor 20 10 Dashboard (left of the steering wheel)
Windscreen washer pump 20 10 Dashboard (left of the steering wheel)
Mirror adjustment device 15 13 Dashboard (left of the steering wheel)
Radiator fan (versions with heater) 30 3 Engine compartment
Radiator fan (low speed) (versions with manual climate control system) 30 3 Engine compartment
Radiator fan (high speed) (versions with manual climate control system) 30 2 Engine compartment
Injection system 30 4 Engine compartment
Instrument panel power 15 13 Dashboard (left of the steering wheel)
Digital clock power 15 12 Dashboard (left of the steering wheel)
Cigar lighter power 15 12 Dashboard (left of the steering wheel)
Hazard light repeater power 10 14 Dashboard (left of the steering wheel)
Hazard light repeater power 15 13 Dashboard (left of the steering wheel)
Window winder control unit power 30 Dashboard
Door locking receiver power 15 12 Dashboard (left of the steering wheel)
Door locking control unit power 20 Dashboard
Manual climate control system control unit power 20 9 Dashboard (left of the steering wheel)
Supplementary headlight relay power 40 5 Engine compartment
Radiator fan relay 20 9 Dashboard (left of the steering wheel)
Manual climate control system compressor relay 20 9 Dashboard (left of the steering wheel)
Climate control system compressor relay energy 15 Engine compartment (on the fire-brake bulkhead)
Phase variator solenoid valve 15 Engine compartment (on the fire-brake bulkhead)
Radiator fan relay energy 7,5 Engine compartment (on the fire-brake bulkhead)
Fuel pump relay energy 7,5 Engine compartment (on the fire-brake bulkhead)
Lambda sensor 15 Engine compartment (on the fire-brake bulkhead)
Cylinder position sensor 7,5 Engine compartment (on the fire-brake bulkhead)
Interconnection control unit 60 1 Engine compartment
Injection control unit 7,5 Engine compartment (on the fire-brake bulkhead)
Injection control unit 7,5 Engine compartment (on the fire-brake bulkhead)
Window winder control unit 15 13 Dashboard (left of the steering wheel)
Electronic alarm control unit 60 1 Engine compartment
Fiat CODE control unit 7,5 Engine compartment (on the fire-brake bulkhead)
Spare 15 Dashboard (left of the steering wheel)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
